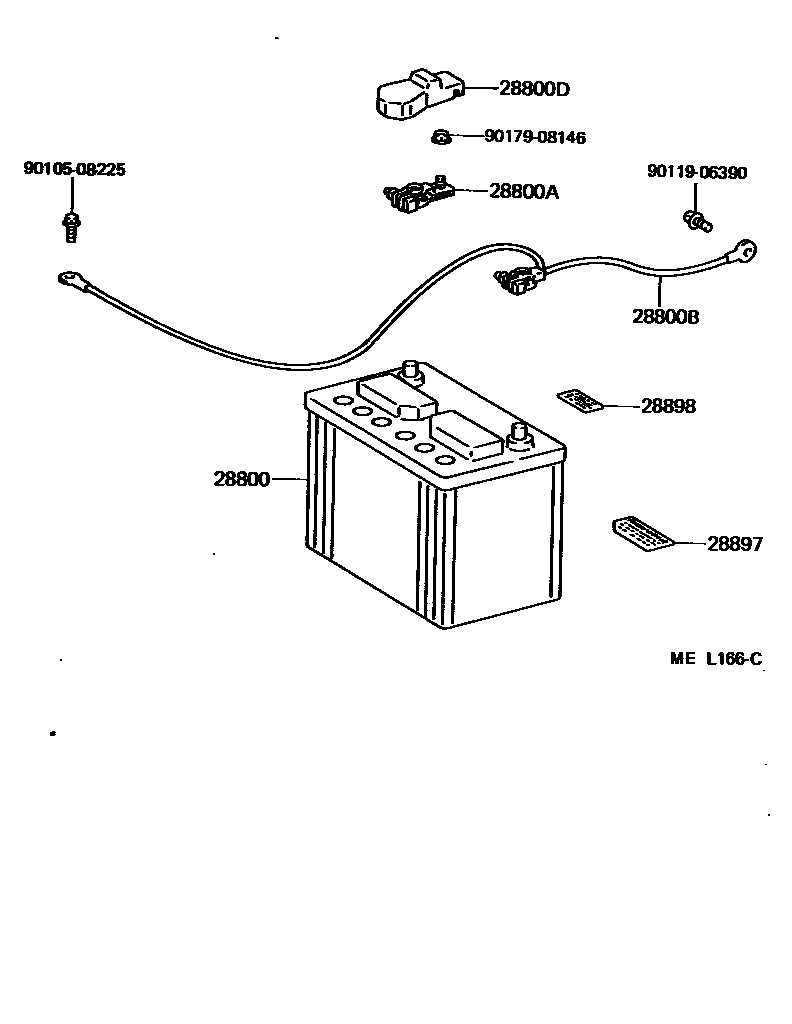

Toyota CAMRY 蓄电池和蓄电池电缆 — Figure 8201
Toyota CAMRY EPC diagram 8201, 蓄电池和蓄电池电缆, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800 | battery | 28800-42030 · 28800-70060 |
| 28800A | battery positive terminal | 90982-05040 |
| 28800B | Cable between battery and ground | 82123-32051 · 82123-32100 |
| 28800D | Connector cover (for battery terminals) | 82821-16010 |
| 28897 | Battery warning nameplate | 28897-38010 |
| 28898 | battery plates | 28898-26010 |
