Toyota CAMRY 后牌照灯 — Figure 8113

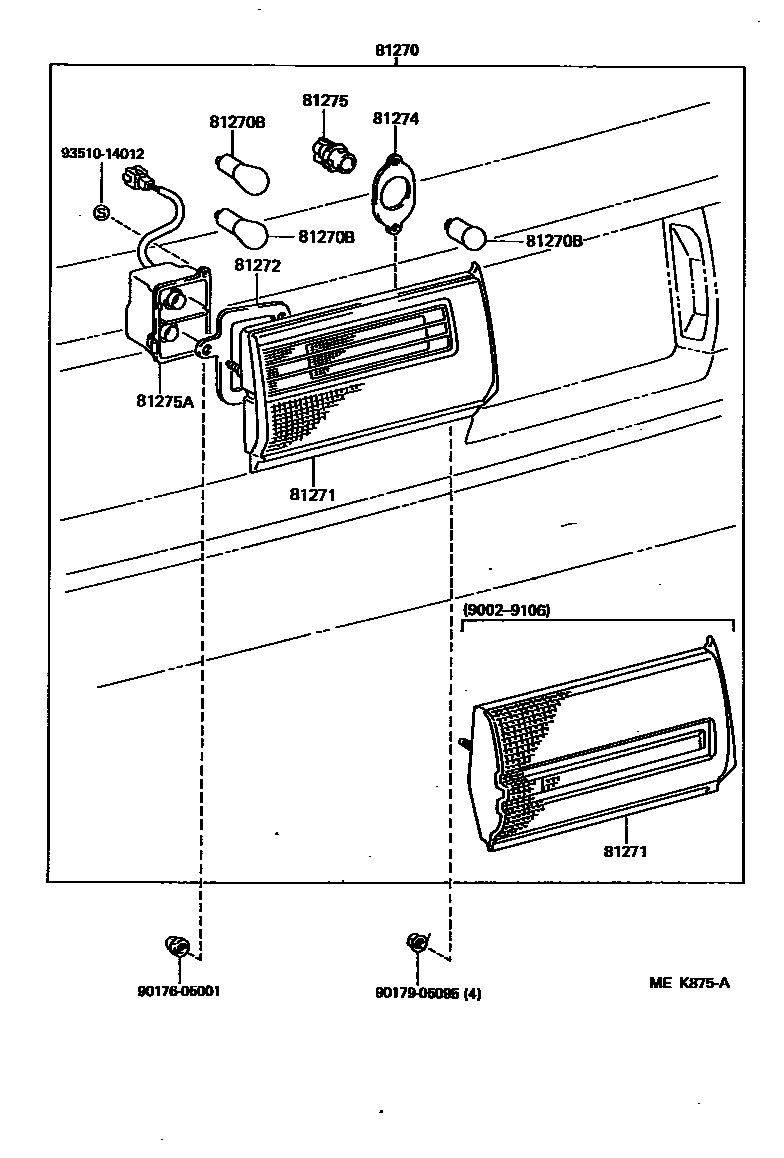

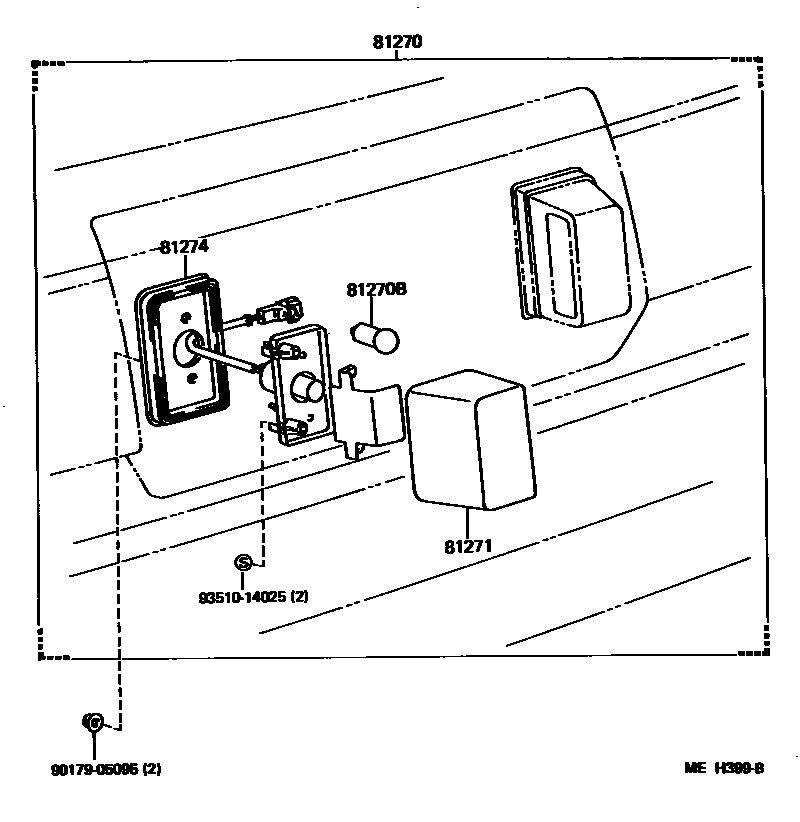

Toyota CAMRY EPC diagram 8113, 后牌照灯, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81270 | License plate light assembly | 81270-32091 · 81270-32130 · 81270-32220 · 81690-32071 · 81690-32140 |
| 81270B | Bulb (for license plate light) | 90981-12012 · 90981-12018 · 99132-11270 |
| 81271 | license plate lamp shade | 81271-10141 · 81271-32091 · 81271-32220 · 81691-32071 · 81691-32140 |
| 81272 | License plate lamp shade gasket | 81272-32060 |
| 81274 | License plate light body gasket | 81274-32060 · 81274-32130 · 81274-32220 |
| 81275 | License plate lamp holder and wiring harness | 81275-12260 |
| 81275A | License plate light wire | 81275-32090 · 81275-32220 · 81695-32070 · 81695-32140 |
