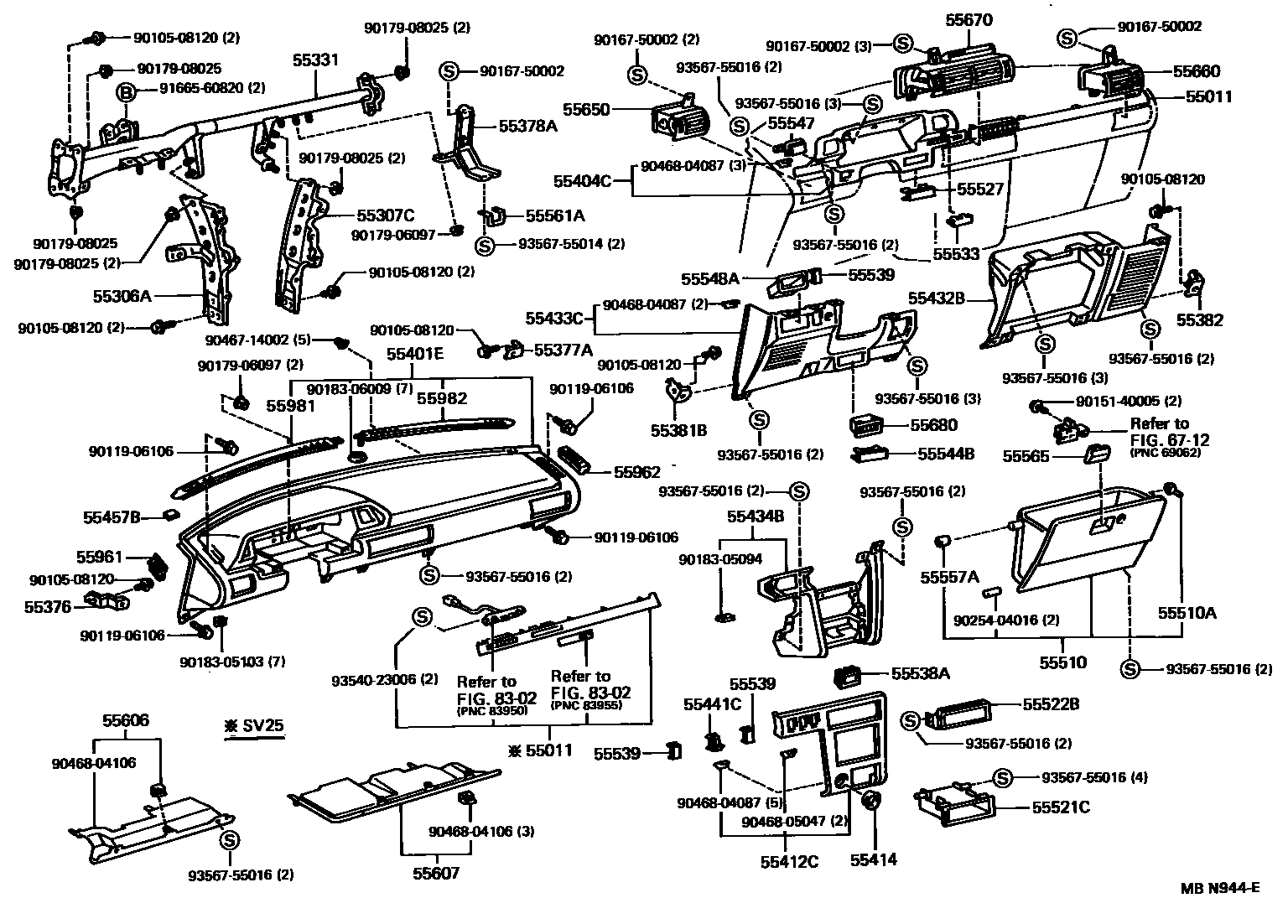

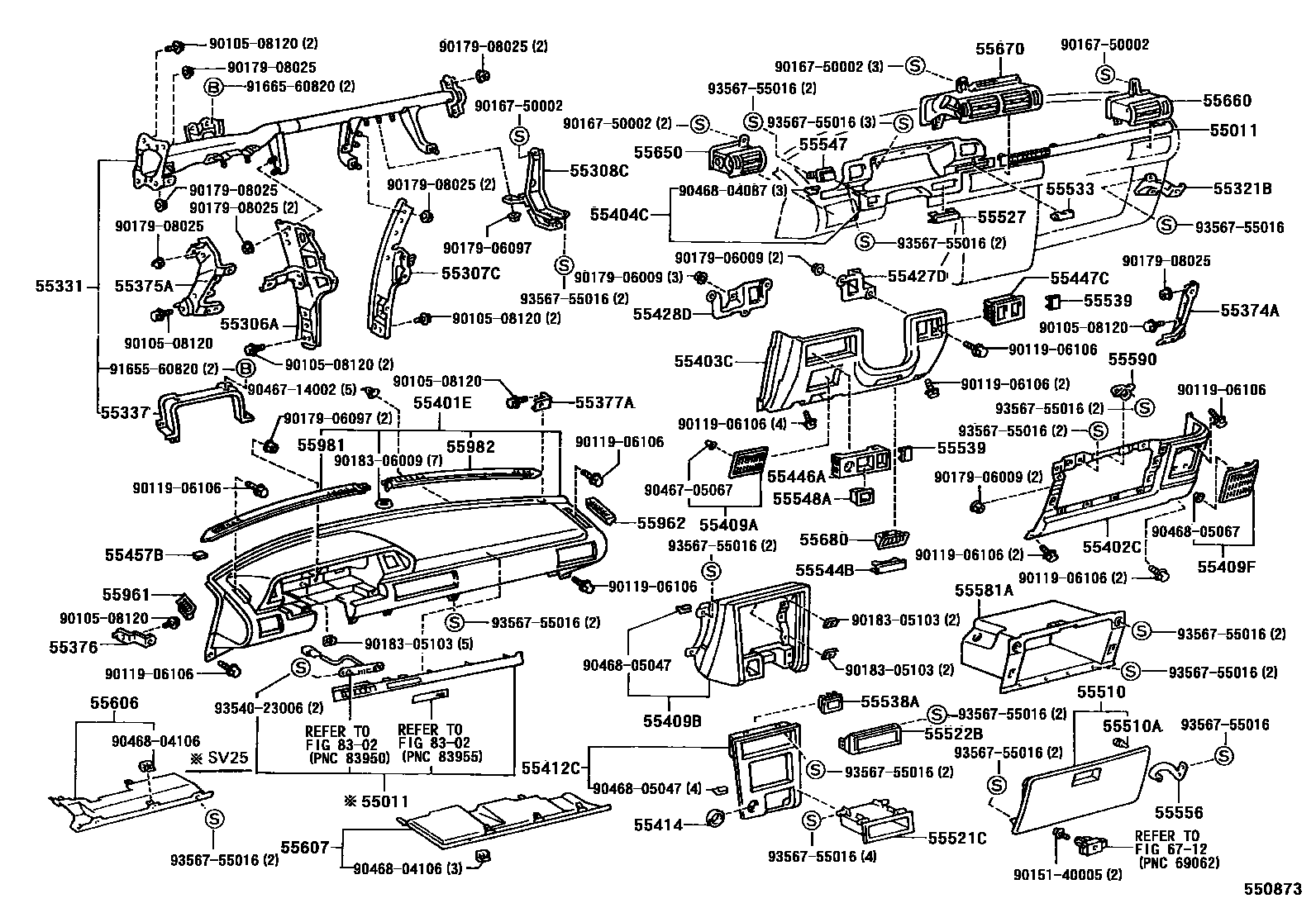

Toyota CAMRY 仪表板和手套箱 — Figure 5501
Toyota CAMRY EPC diagram 5501, 仪表板和手套箱, with 2 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55011 | Dashboard safety pad trim sub-assembly | 55011-32120 · 55011-32150 · 55011-32180 · 55011-32181 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-32060 · 55306-32080 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-32030 · 55307-32050 |
| 55308C | Center instrument panel bracket sub-assembly | 55308-32010 |
| 55321B | Instrument panel bracket No. 1 | 55321-32020 |
| 55331 | Dashboard reinforcement | 55330-32050 · 55330-32070 |
| 55337 | Dashboard sub-reinforcement | 55337-32020 |
| 55374A | Instrument panel lower right mounting bracket | 55374-32020 |
| 55375A | Instrument panel lower left mounting bracket | 55375-32030 |
| 55376 | Instrument panel mounting bracket No. 1 | 55376-32030 |
| 55377A | Instrument panel mounting bracket No. 2 | 55377-32030 |
| 55378A | Glovebox lid lock mounting bracket | 55378-32040 |
| 55381B | No. 1 decorative panel mounting bracket | 55381-32050 |
| 55382 | No. 2 decorative panel mounting bracket | 55382-32030 |
| 55412C | Center instrument cluster No. 1 decorative panel | 55412-32060 · 55412-32080 |
| 55414 | Cigarette lighter hole frame | 55477-12060 · 55477-32030 |
| 55427D | Instrument panel No. 1 decorative panel lower fixing part | 55427-32010 |
| 55428D | Instrument panel No. 2 decorative panel lower fixing piece | 55428-32010 |
| 55446A | No. 1 switch hole seat | 55446-32010 |
| 55447C | No. 2 switch hole seat | 55447-32010 |
| 55457B | Dashboard safety pad spacer | 55457-22030 |
| 55510A | Cushion (for glovebox lid) | 90541-03015 |
| 55522B | Radio tuner opening cover | 55522-32010 |
| 55533 | automatic clock hole cover | 55533-32010 |
| 55538A | Cooler switch hole cover | 55538-16020 |
| 55548A | Dashboard hole cover | 55548-32030 · 55548-32040 |
| 55556 | Glove box cover stopper arm | 55556-20030 |
| 55557A | Glove box cover limit pad | 55557-16010 |
| 55561A | Glove box lid lock | 55561-32020 |
| 55581A | Glove box | 55581-32010 |
| 55590 | Glove box cover lock plate assembly | 55590-32010 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-32020 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-32020 |
