Toyota CAMRY 后保险杠及附件 — Figure 5202

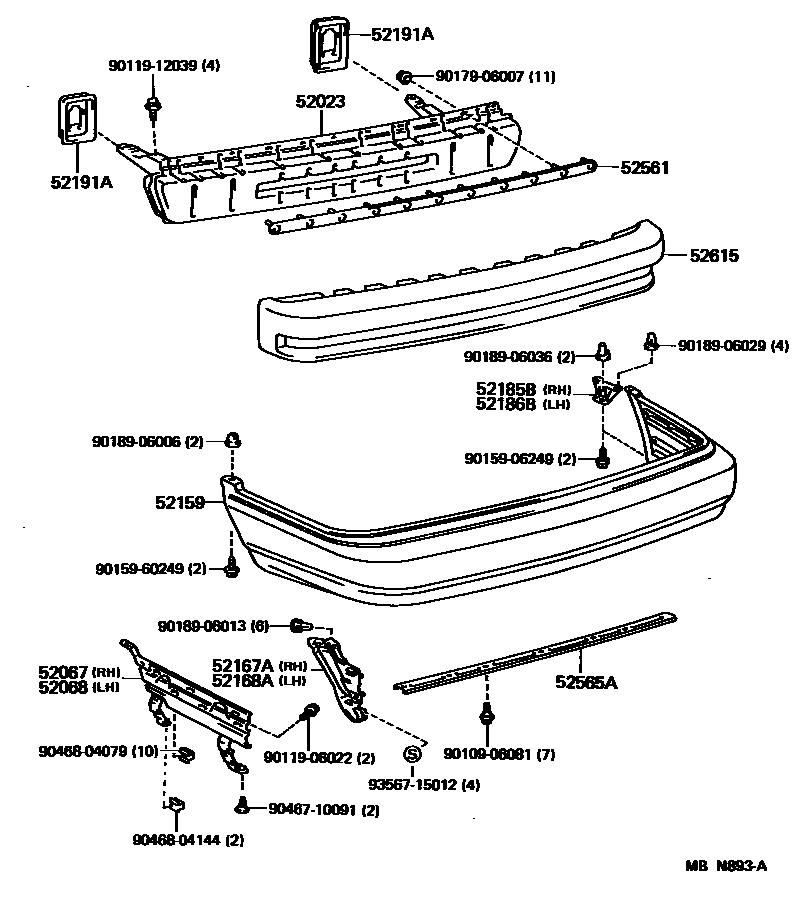

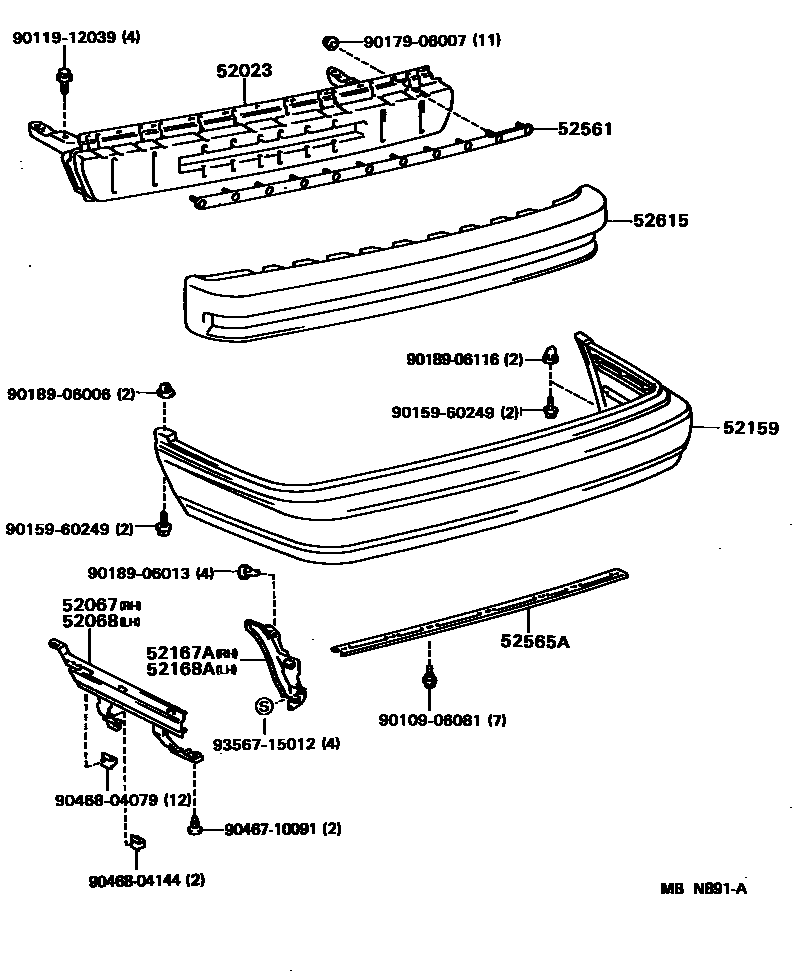

Toyota CAMRY EPC diagram 5202, 后保险杠及附件, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52023 | Rear bumper reinforcement sub-assembly | 52023-32060 · 52023-32090 · 52023-32120 |
| 52067 | Rear bumper right side bracket sub-assembly | 52067-32020 · 52067-32040 |
| 52068 | Rear bumper left bracket sub-assembly | 52068-32020 · 52068-32040 |
| 52159 | rear bumper cover | 52159-32160 · 52159-32230 · 52159-32911 · 52159-32912 |
| 52167A | Rear bumper No. 4 right side bracket | 52167-32020 · 52167-32040 |
| 52168A | Rear bumper No. 4 left side bracket | 52168-32020 · 52168-32040 |
| 52185B | Installation support on the right side of the rear bumper | 52185-32010 |
| 52186B | Rear bumper left side mounting support | 52186-32010 |
| 52191A | Rear bumper arm seal | 52191-32020 |
| 52561 | Rear bumper upper center fixing bracket | 52561-32030 |
| 52565A | Rear bumper lower fixing bracket | 52565-32030 |
| 52615 | Rear bumper energy absorber | 52615-32060 |
