Toyota CAMRY 制动助力器和真空管 — Figure 4703

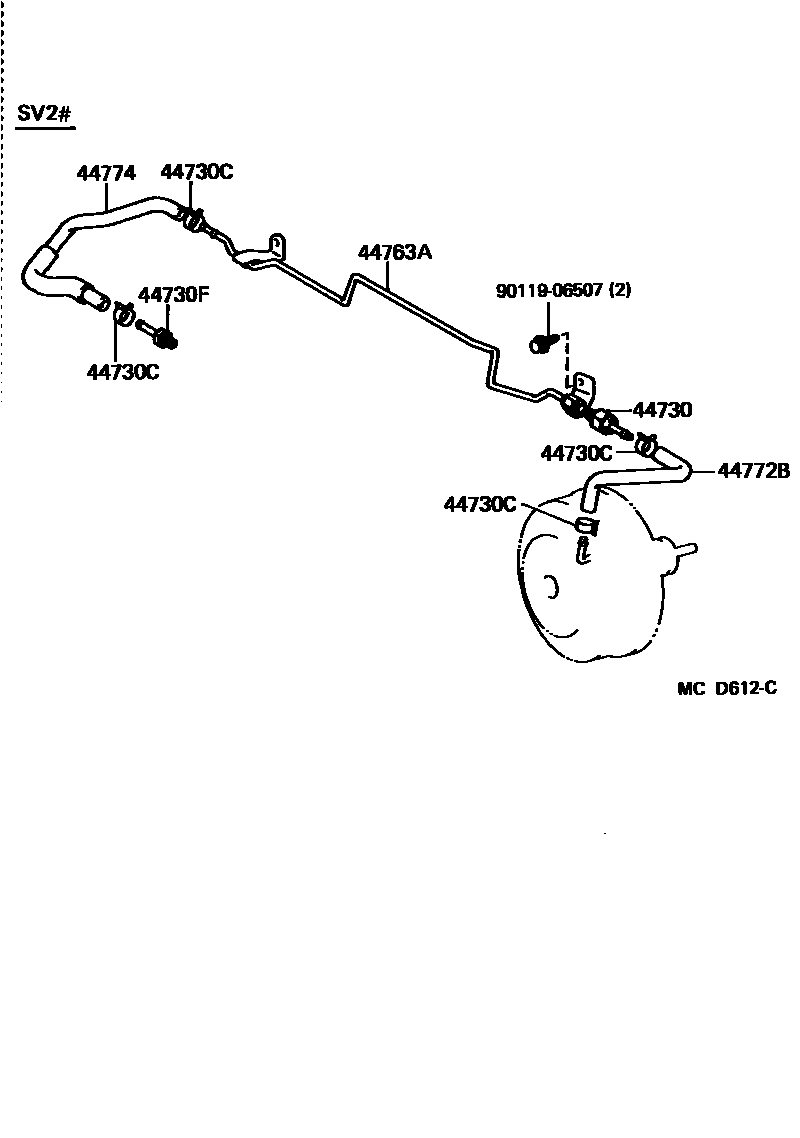

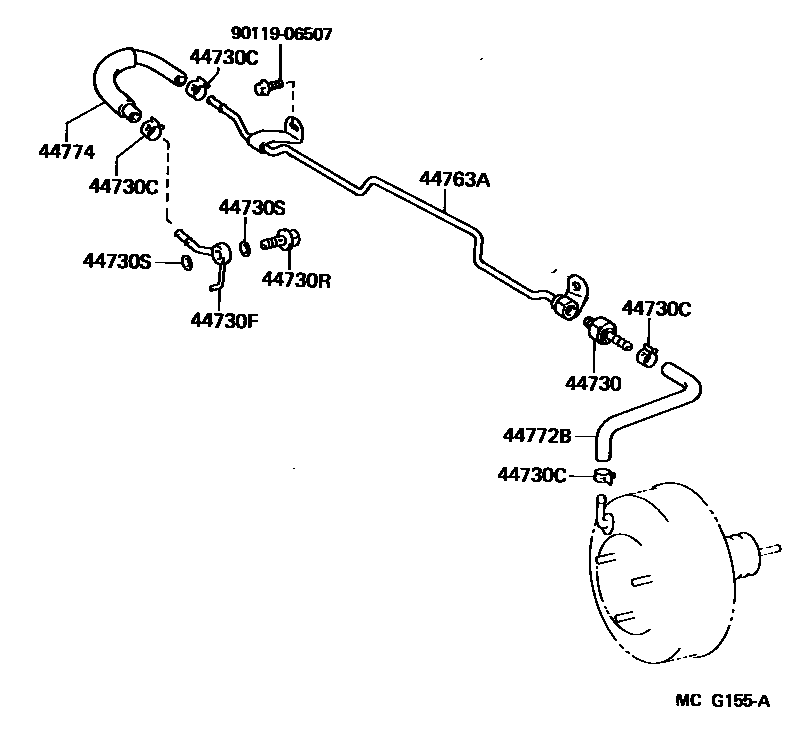

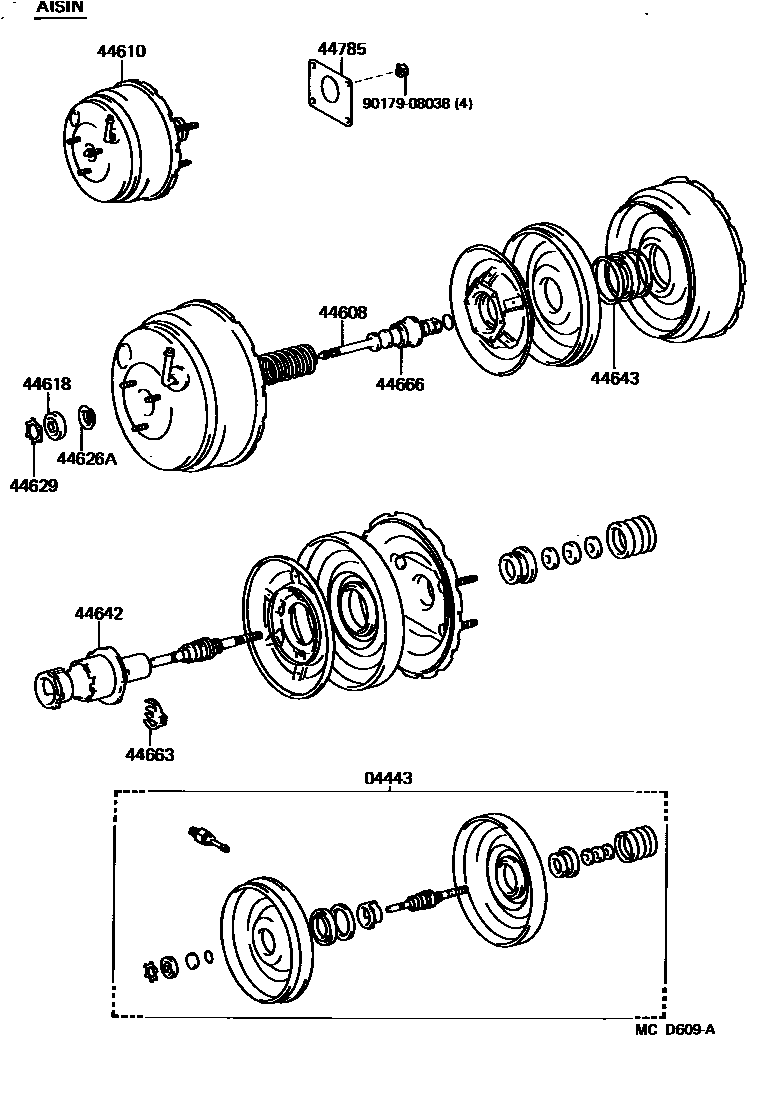

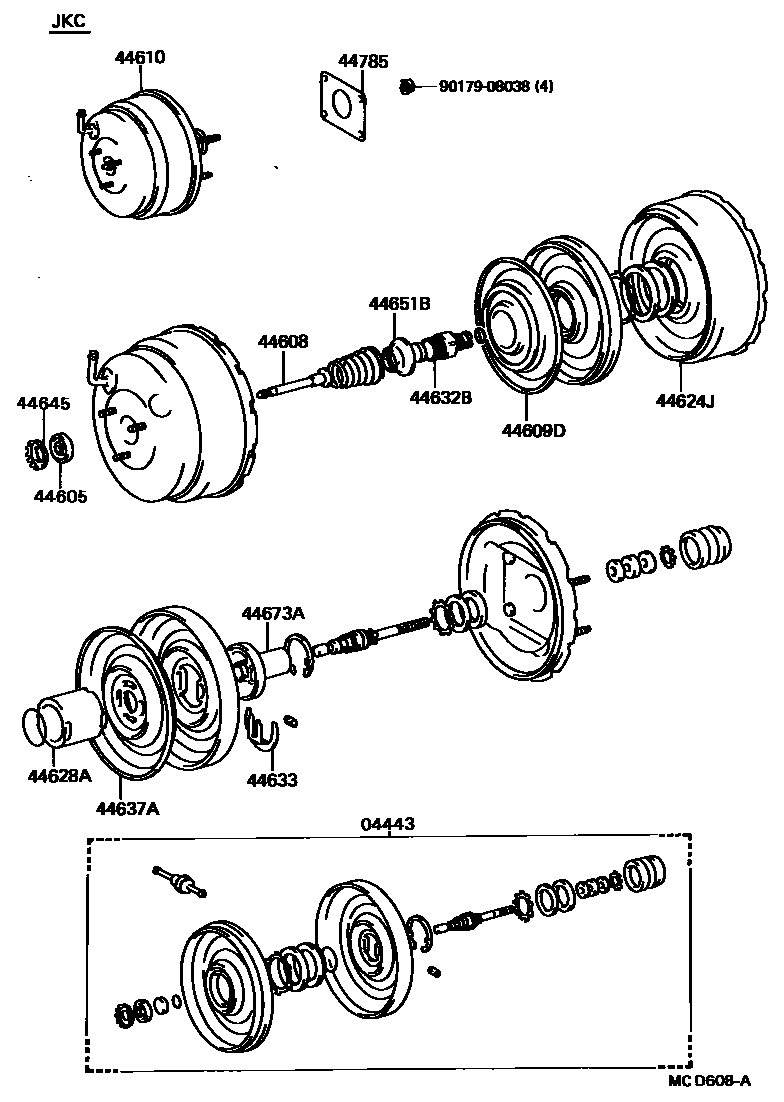

Toyota CAMRY EPC diagram 4703, 制动助力器和真空管, with 4 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04443 | brake booster components | 04443-32270 · 04443-32280 · 04443-32360 · 04443-32440 |
| 44605 | Booster plate and sealing ring sub-assembly | 44605-30350 |
| 44608 | Booster push rod sub-assembly | 44606-20800 · 44608-17090 |
| 44609D | Booster plate and retaining ring sub-assembly | 44609-26380 |
| 44610 | brake booster assembly | 44610-32260 · 44610-32271 · 44610-32300 · 44610-32340 |
| 44618 | Booster body sealing ring | 44621-14030 |
| 44624J | booster center disc | 44624-28300 |
| 44626A | Booster body sealing ring | 44626-60010 |
| 44628A | Booster center body | 44628-20810 |
| 44629 | annular inner ring | 44628-60010 |
| 44632B | Booster reaction disc hub | 44632-30550 |
| 44633 | booster valve plunger key | 44633-20811 |
| 44637A | booster diaphragm disc | 44637-28300 |
| 44642 | brake booster piston | 44642-20800 |
| 44643 | Diaphragm retaining ring | 44643-20800 |
| 44645 | Booster push rod sealing ring | 44645-10080 |
| 44651B | booster nut | 44651-20810 |
| 44663 | valve stop key | 44635-20800 |
| 44666 | reaction disk housing | 44657-28370 · 44657-30560 · 44657-50010 |
| 44673A | booster valve body | 44673-20810 |
| 44730 | Vacuum check valve assembly (for brake) | 44580-22030 · 44730-22120 |
| 44730C | Clip (for vacuum hose) | 90467-16002 · 90467-16017 |
| 44730F | Vacuum hose connector (for manifold side) | 90404-51319 · 90405-09125 |
| 44730R | Connector bolts (for vacuum hose connectors) | 90401-12012 |
| 44730S | Gasket (for vacuum hose coupling) | 90430-12005 |
| 44763A | Pipe No. 1 (hose to hose) | 44763-32071 |
| 44772B | Hoses (check valve to brake booster) | 44772-32050 |
| 44774 | Hoses (joints to connector tubes) | 44774-32060 · 44774-32070 |
| 44785 | brake booster pad | 44785-32010 |
