Toyota CAMRY 暖风和空调系统 - 控制器和风管 — Figure 8715

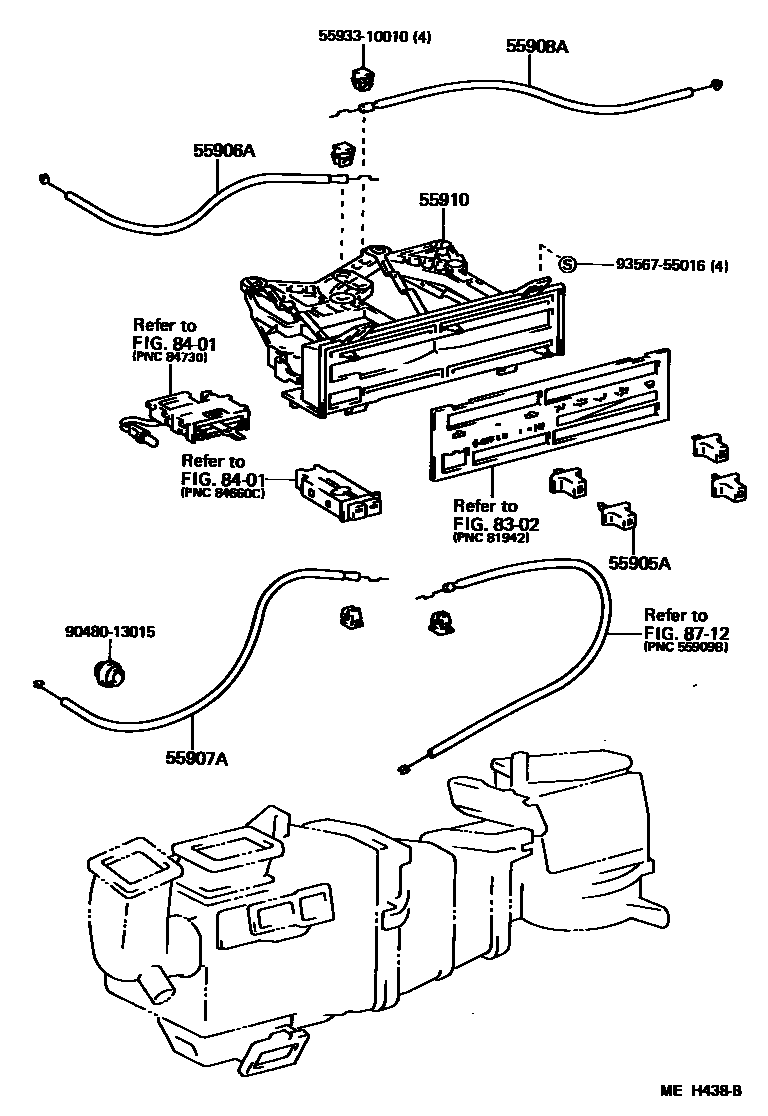

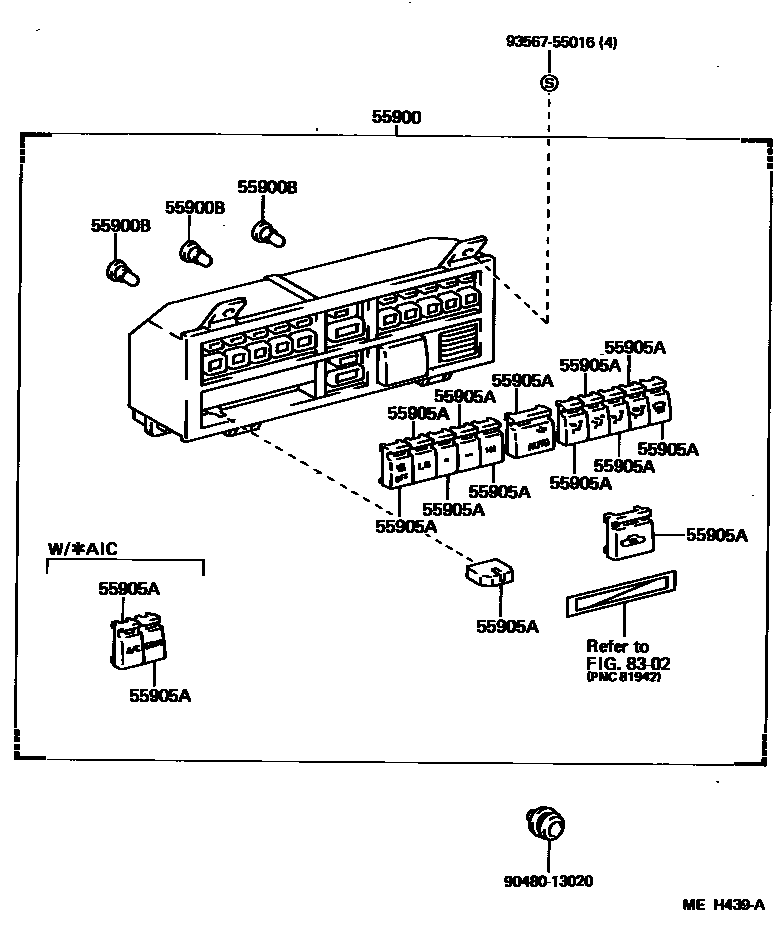

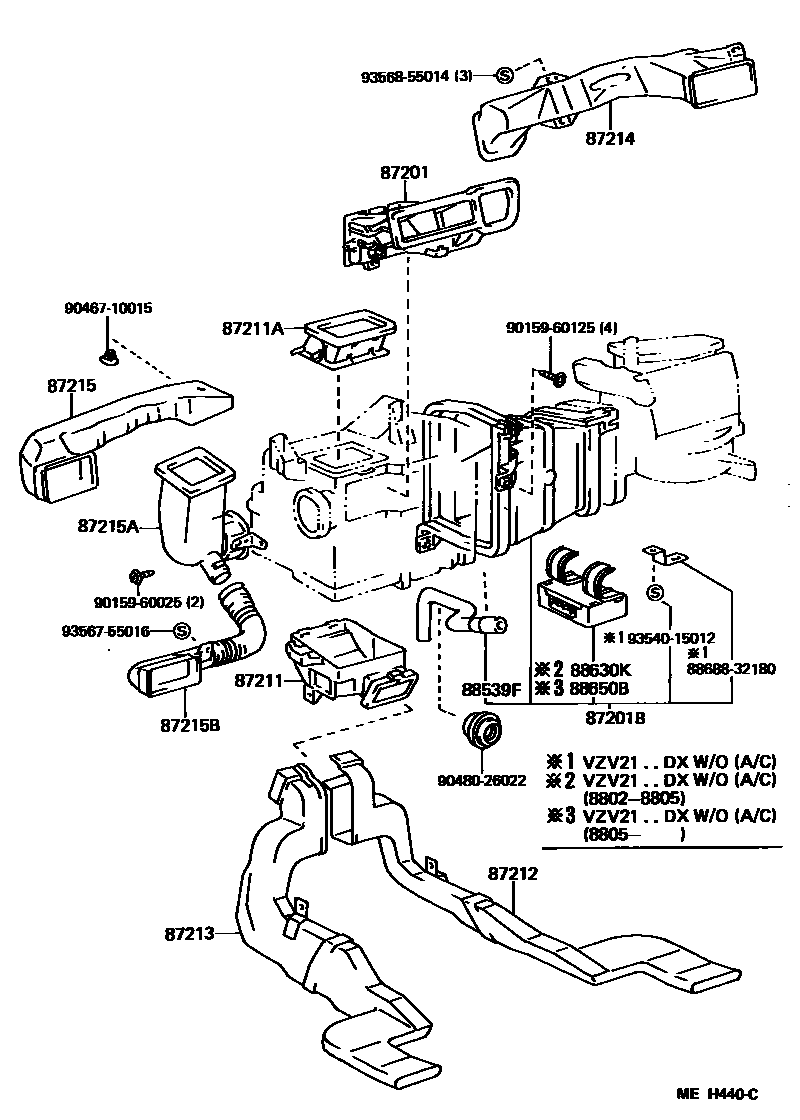

Toyota CAMRY EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 3 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55900 | Air conditioning control assembly | 55900-32120 · 55900-32130 |
| 55900B | air conditioning control light bulb | 81850-32150 |
| 55905A | Heater control button | 55905-32010 · 55905-32020 · 55905-32030 · 55905-32040 · 55905-32050 · 55905-32060 · 55905-32070 · 55905-32080 · 55905-32090 · 55905-32100 · 55905-32110 · 55905-32120 · 55905-32130 · 55905-32140 · 55905-32150 · 55905-32190 |
| 55906A | Defroster damper control cable sub-assembly | 55906-32070 |
| 55907A | Water valve control cable sub-assembly | 55907-32040 · 55907-32050 |
| 55908A | Intake air valve control cable sub-assembly | 55908-32060 · 55908-32070 |
| 55910 | Heater or auxiliary ventilation control assembly | 55910-32070 |
| 87201 | No. 1 air duct sub-assembly | 87201-32150 |
| 87201B | No. 2 air duct sub-assembly | 87220-32020 · 87220-32040 · 87220-32041 |
| 87211 | No. 1 air duct | 87201-32170 · 87201-32171 |
| 87211A | Duct No. 2 | 87211-32040 |
| 87212 | No. 1 rear air duct | 87212-32010 · 87212-32020 |
| 87213 | No. 2 rear air duct | 87213-32010 |
| 87214 | Air duct No. 1 on the right | 55086-32040 · 55086-32041 |
| 87215 | Air duct No. 1 on the left | 55084-32050 |
| 87215A | Air duct No. 2 on the left | 55085-32080 · 55085-32100 |
| 87215B | Air duct No. 3 on the left | 55088-32050 |
| 88539F | discharge hose | 88539-32030 |
| 88630K | Relay assembly | 85927-32040 |
| 88650B | Air conditioning amplifier assembly | 88650-20340 |
