Toyota CAMRY 暖风和空调系统 - 冷却器组件 — Figure 8714

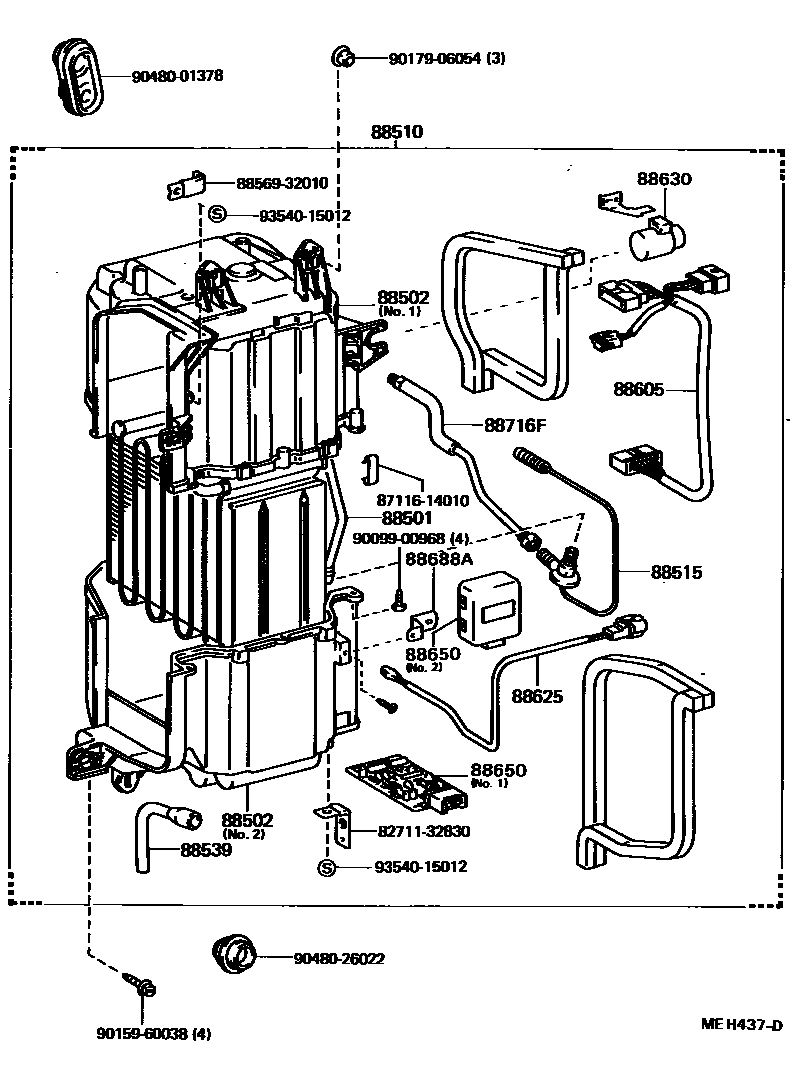

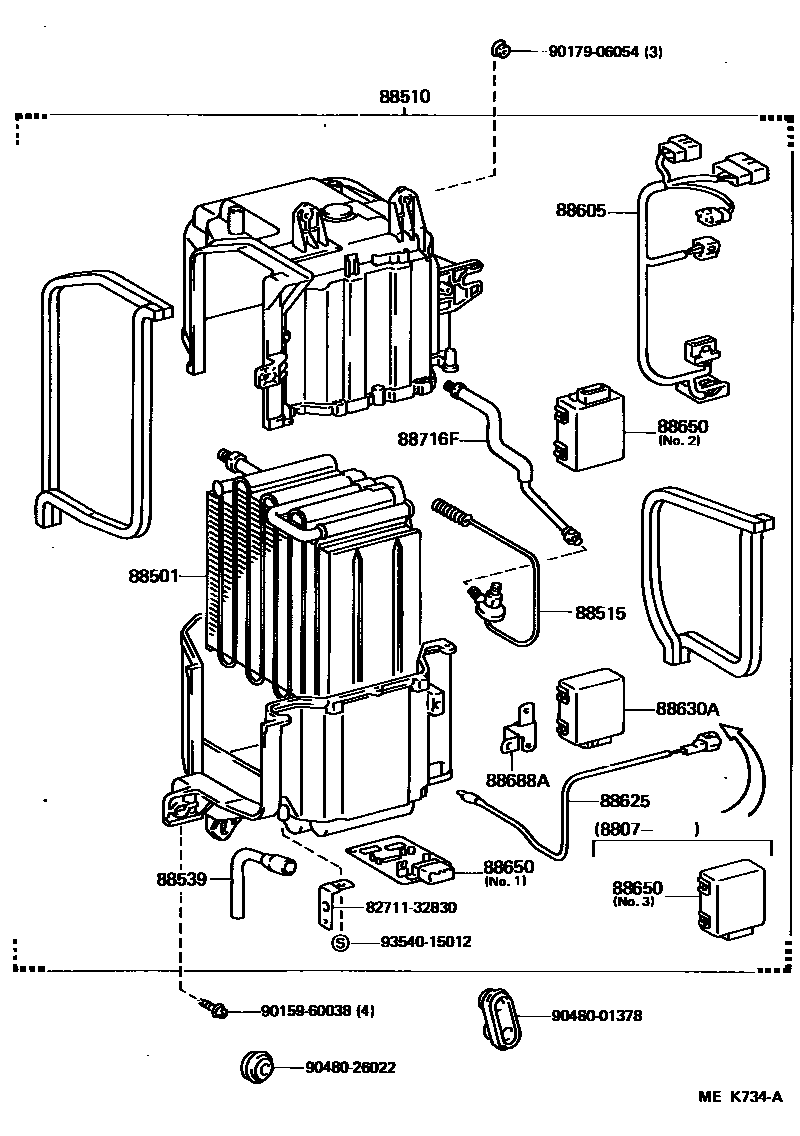

Toyota CAMRY EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-32050 |
| 88502 | Cooling device shell sub-assembly | 88502-32050 · 88502-32060 |
| 88510 | Cooler device assembly | 88510-32260 · 88510-32290 · 88510-32300 · 88510-32380 |
| 88515 | Cooler expansion valve | 88515-16040 |
| 88539 | No. 1 Cooler Unit Drain Hose | 88539-20130 · 88539-22110 |
| 88605 | No. 1 cooler wiring harness sub-assembly | 88605-32350 · 88605-32380 · 88605-32390 · 88605-32391 |
| 88625 | Cooler No. 1 Thermistor | 88625-32040 |
| 88630 | Cooler relay assembly | 90987-03001 |
| 88630A | Cooler relay assembly | 85927-32040 |
| 88650 | Cooler stabilized amplifier assembly | 88650-20340 · 88650-32110 · 88650-32150 · 88650-32160 · 88650-32170 · 88650-32270 |
| 88688A | Cooler stabilized amplifier stand | 88688-32180 · 88688-32250 |
| 88716F | Cooler refrigerant liquid pipe F | 88716-32270 |
