Toyota CAMRY antenna — Figure 8604

Toyota CAMRY EPC diagram 8604, antenna, with 2 images and 7 PNC and OE references.

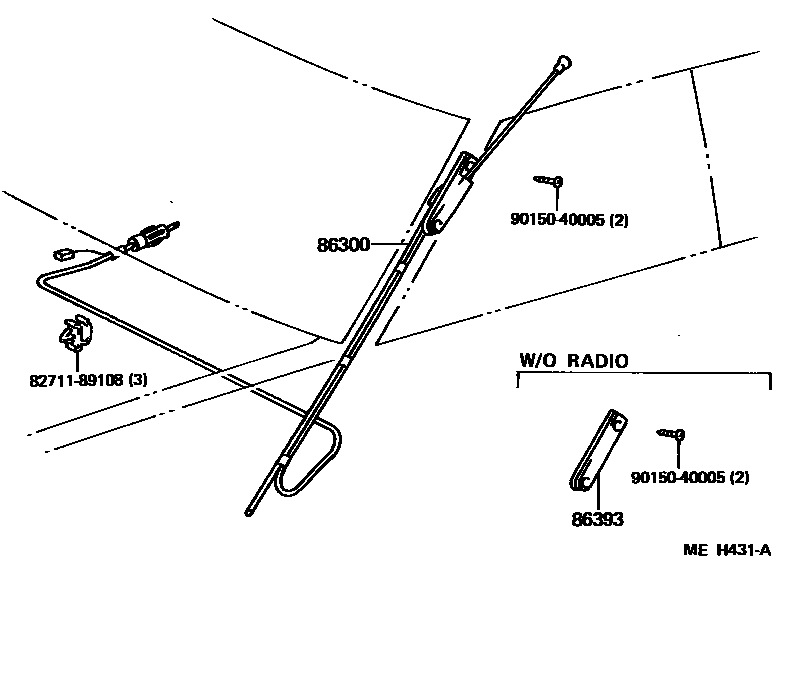

Toyota CAMRY antenna EPC diagram — MEH431A
antenna — MEH431A (198608 – 999999)

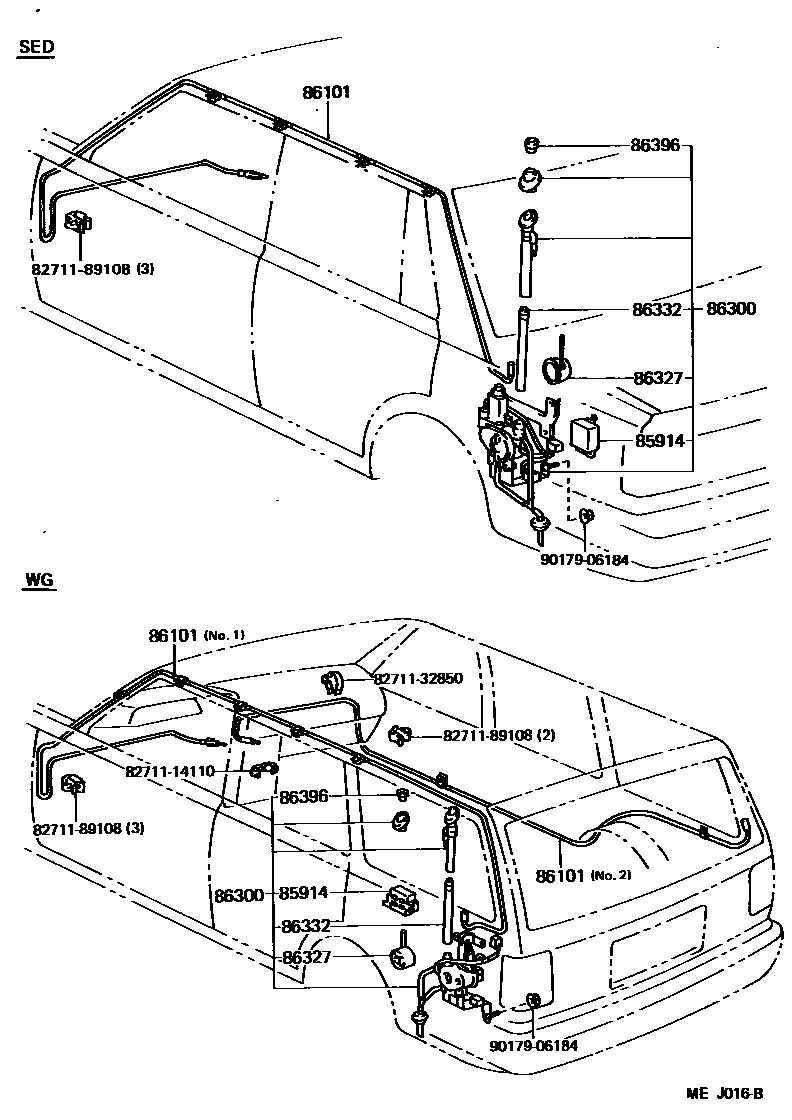

Toyota CAMRY antenna EPC diagram — MEJ016B
antenna — MEJ016B (198608 – 999999)

PNC and OE references

PNCPart nameOE numbers
85914Electric antenna control relay85914-14020
86101Antenna wire sub-assembly86101-32030 · 86101-32040 · 86101-32050 · 86101-32060
86300Antenna assembly with fixing parts86300-32100 · 86300-32101 · 86300-32130 · 86300-32140
86327Cable with antenna drum86327-22210
86332antenna mast86336-14350 · 86336-32130
86393Antenna decorative parts86392-20031
86396Antenna nut86396-14041
