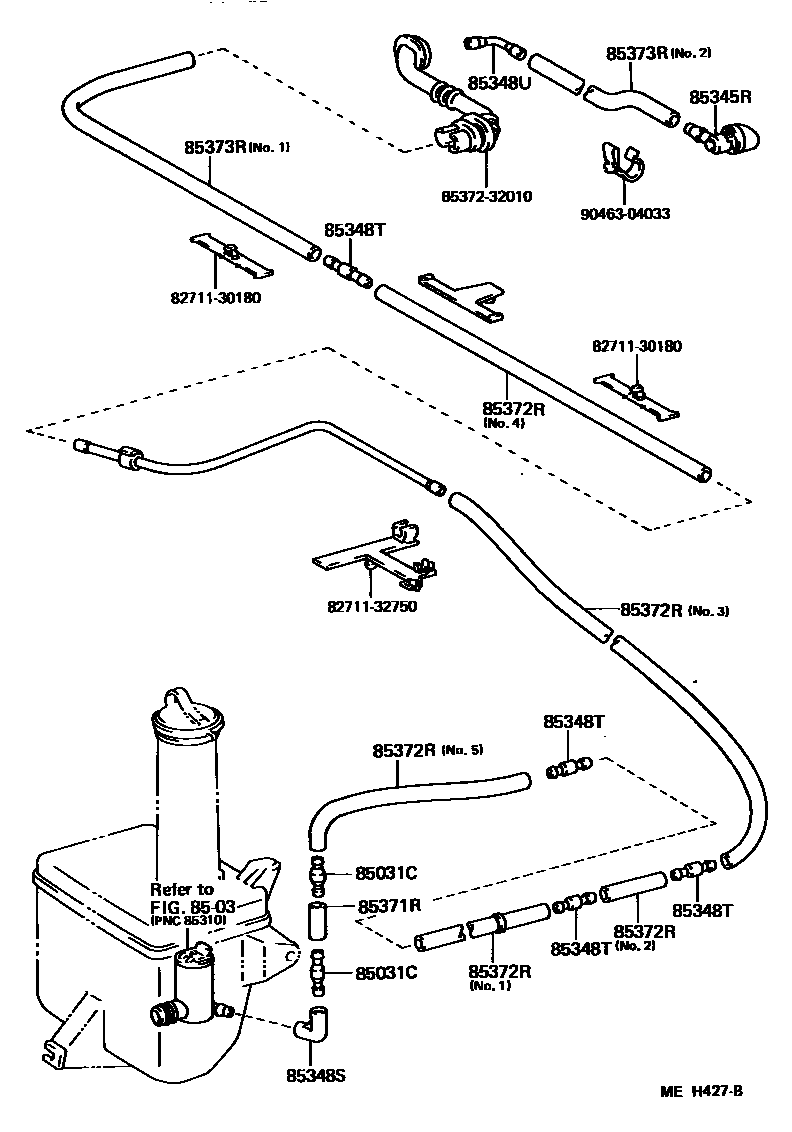

Toyota CAMRY 后清洗器 — Figure 8504
Toyota CAMRY EPC diagram 8504, 后清洗器, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85031C | Cleaner valve sub-assembly | 85031-30010 |
| 85345R | Rear washer nozzle | 85345-32010 |
| 85348S | No. 1 rear cleaner elbow joint | 85355-14481 · 85355-20070 |
| 85348T | No. 2 rear washer hose connector | 85349-89122 |
| 85348U | No. 3 rear washer hose connector | 85355-32020 |
| 85371R | Rear washer hose (from motor to connector) | 90099-33299 |
| 85372R | Rear washer hose (from fitting to fitting or nozzle) | 90099-33299 · 90099-33366 · 90446-07001 |
| 85373R | Rear washer hose (from connector to nozzle) | 90099-33299 |
