Toyota CAMRY 挡风玻璃清洗器 — Figure 8503

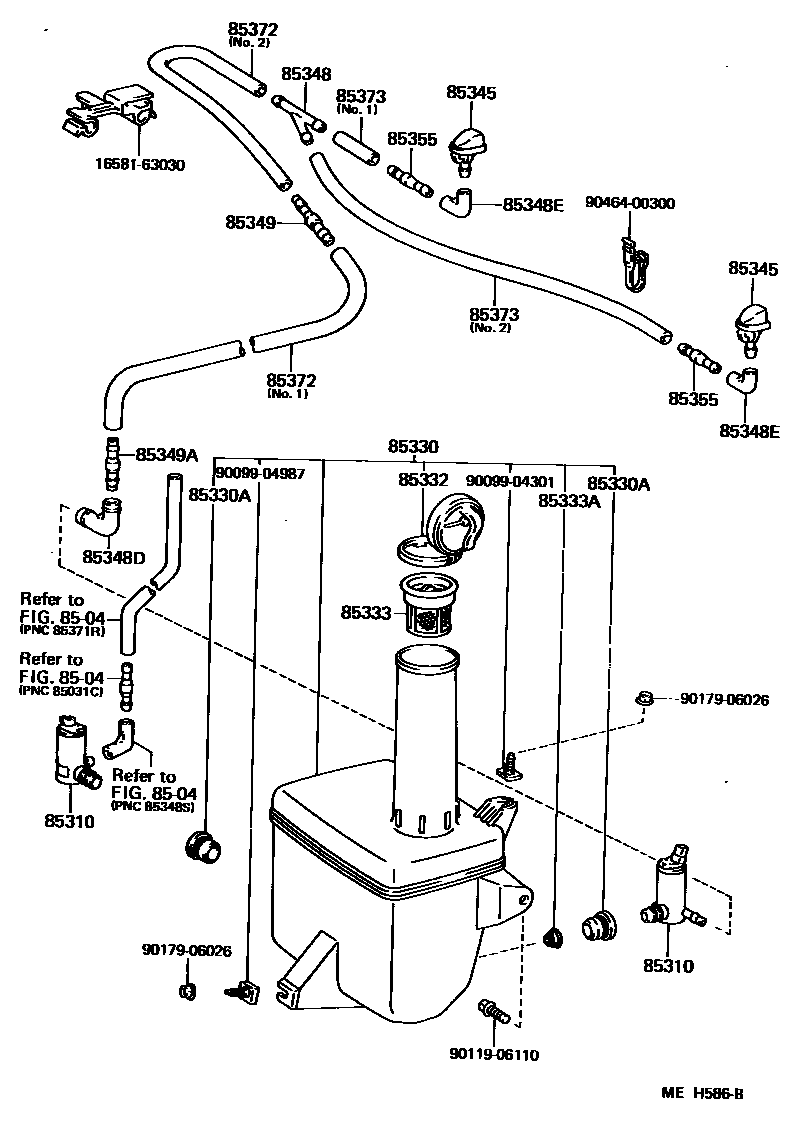

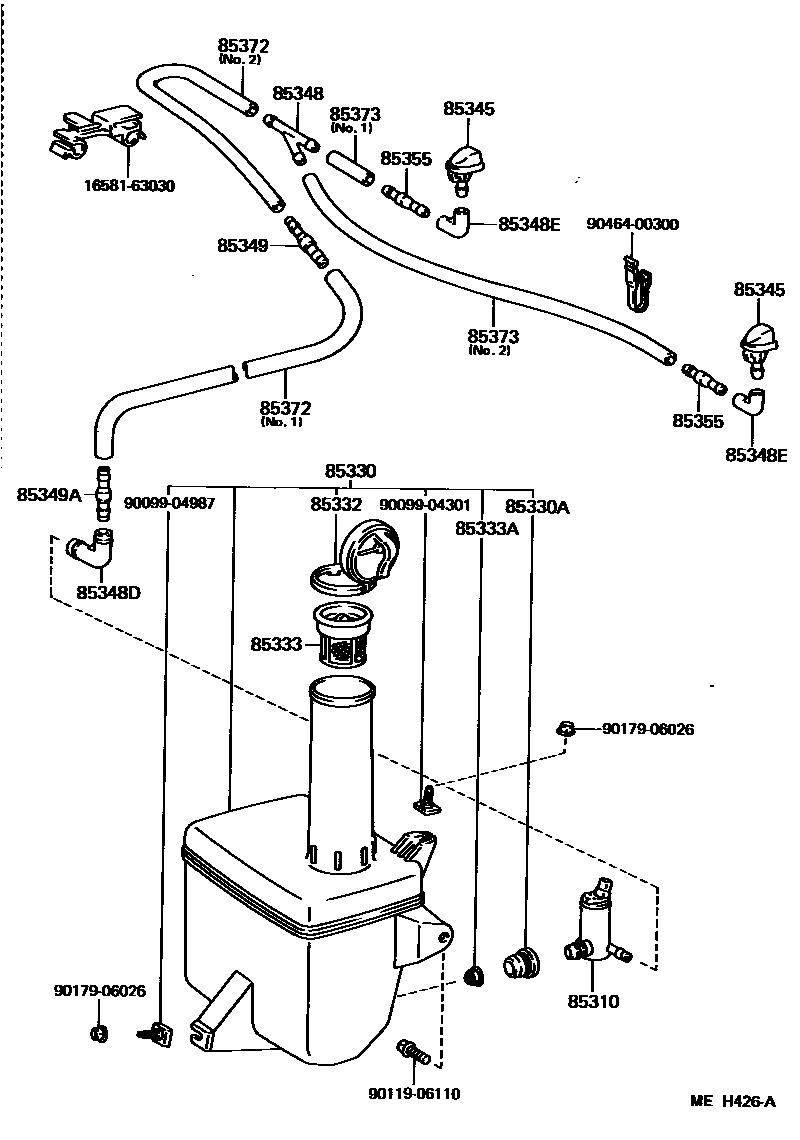

Toyota CAMRY EPC diagram 8503, 挡风玻璃清洗器, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85310 | Windshield washer motor and pump assembly | 85310-14080 · 85310-32020 |
| 85330 | Windshield washer fluid tank assembly | 85331-32160 · 85331-32170 |
| 85330A | Windshield washer fluid tank bushing | 90099-32089 · 90099-32103 |
| 85332 | Windshield washer fluid tank cap | 85332-32130 |
| 85333 | Windshield washer fluid tank filter | 85333-12470 |
| 85333A | Windshield washer fluid tank filter No. 2 | 85333-20020 |
| 85345 | windshield washer nozzle | 85035-32100 · 85035-32110 |
| 85348 | Windshield washer hose connector No. 1 | 85348-12250 |
| 85348D | No. 1 windshield washer elbow joint | 85355-32110 |
| 85348E | No. 2 windshield washer elbow joint | 85355-14481 |
| 85349 | Windshield washer hose connector No. 1 | 85349-14010 |
| 85349A | Windshield washer hose connector No. 2 | 85349-20010 |
| 85355 | Windshield washer hose valve | 85031-12250 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 90099-33083 · 90099-33192 |
| 85373 | Windshield washer hose (from connector to nozzle) | 90099-33080 |
