Toyota CAMRY 挡风玻璃刮水器 — Figure 8501

Toyota CAMRY EPC diagram 8501, 挡风玻璃刮水器, with 1 images and 6 PNC and OE references.

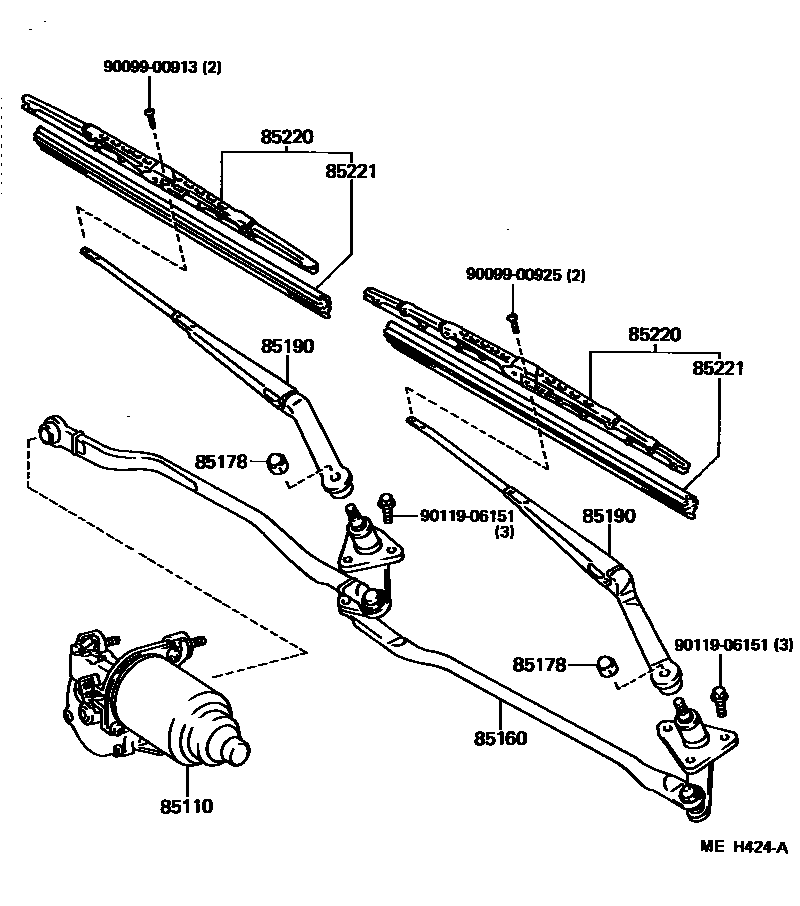

Toyota CAMRY 挡风玻璃刮水器 EPC diagram — MEH424A
挡风玻璃刮水器 — MEH424A (198608 – 999999)

PNC and OE references

PNCPart nameOE numbers
85110Windshield wiper motor assembly85110-32240 · 85110-32241
85160Windshield wiper connecting rod assembly85160-32130
85178Nut (for securing front wiper arm)90176-08033 · 90176-08040
85190Windshield wiper arm assembly85190-32280 · 85210-32210
85220Windshield wiper blade assembly85220-16340 · 85220-32600
85221Windshield wiper blade85221-30100 · 85221-32050
