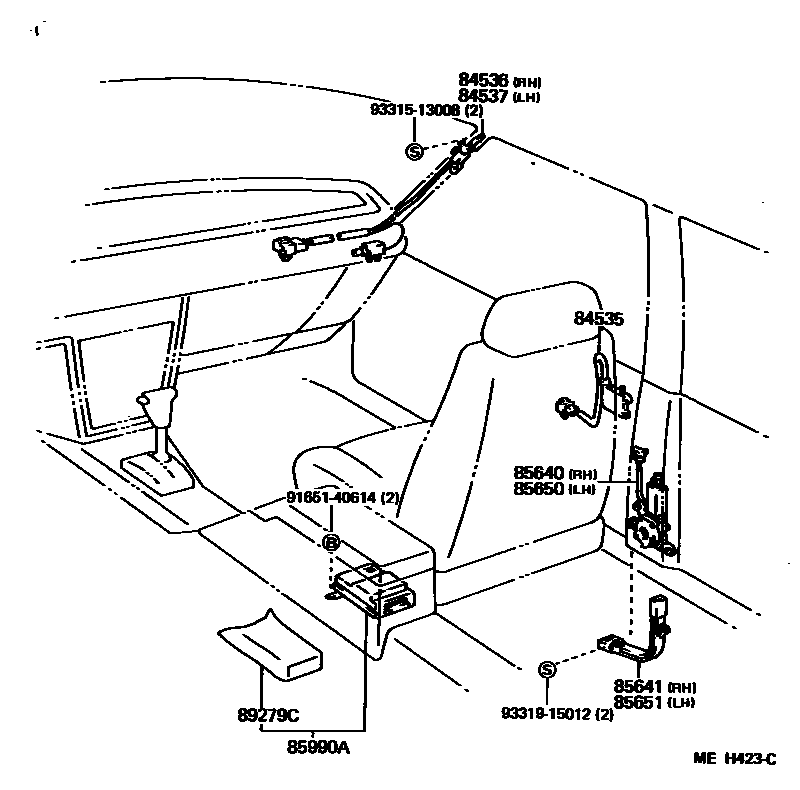

Toyota CAMRY 被动式安全带系统 — Figure 8415
Toyota CAMRY EPC diagram 8415, 被动式安全带系统, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 84535 | door lock switch | 84535-32010 |
| 84536 | Right front slide rail limit switch | 84536-32010 |
| 84537 | Left front slide rail limit switch | 84537-32010 |
| 85640 | Right passive transmission belt motor assembly | 85640-32020 |
| 85641 | Right passive drive belt slide | 85641-20010 |
| 85650 | Left passive transmission belt motor assembly | 85650-32020 |
| 85651 | Passive drive belt slide left | 85651-20010 |
| 85990A | Seat belt warning ECU assembly (for passive seat belts) | 85990-32010 · 85990-32011 |
| 89279C | cover | 89279-32160 |
