Toyota CAMRY ABS 和 VSC — Figure 8414

Toyota CAMRY EPC diagram 8414, ABS 和 VSC, with 2 images and 7 PNC and OE references.

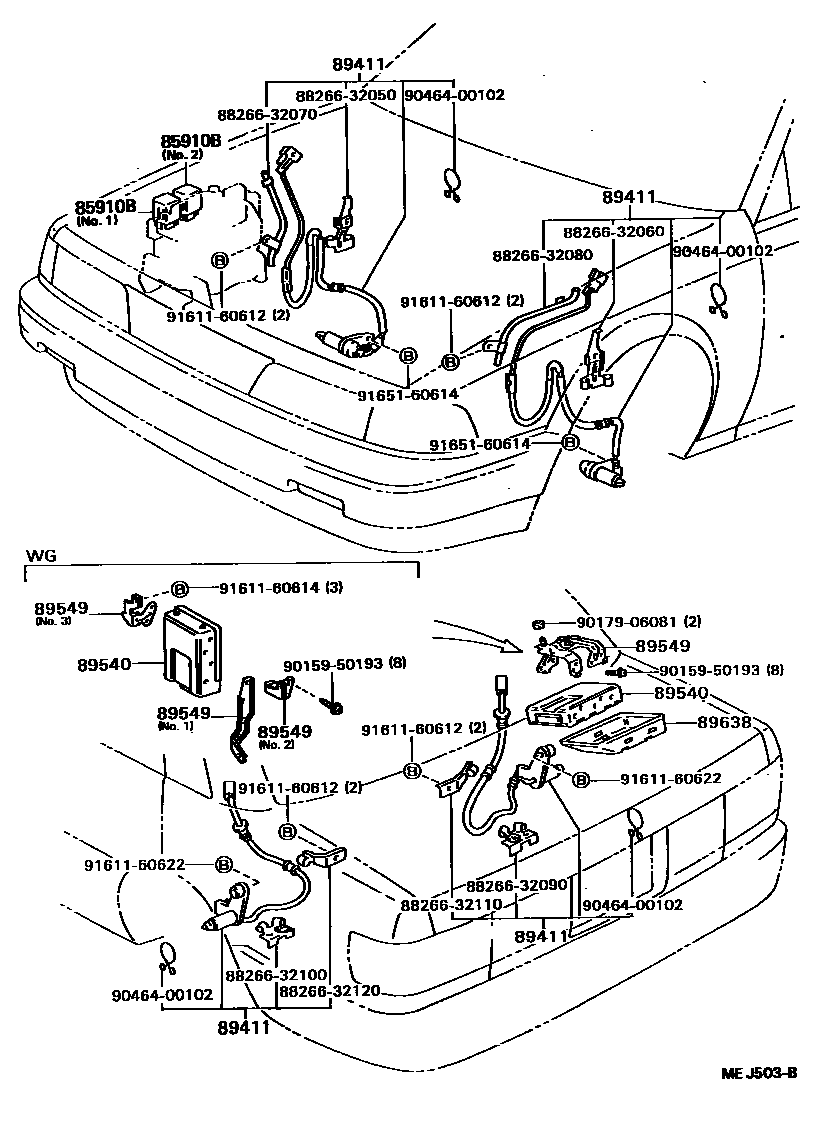

Toyota CAMRY ABS 和 VSC EPC diagram — MEJ503B
ABS 和 VSC — MEJ503B (198802 – 999999)

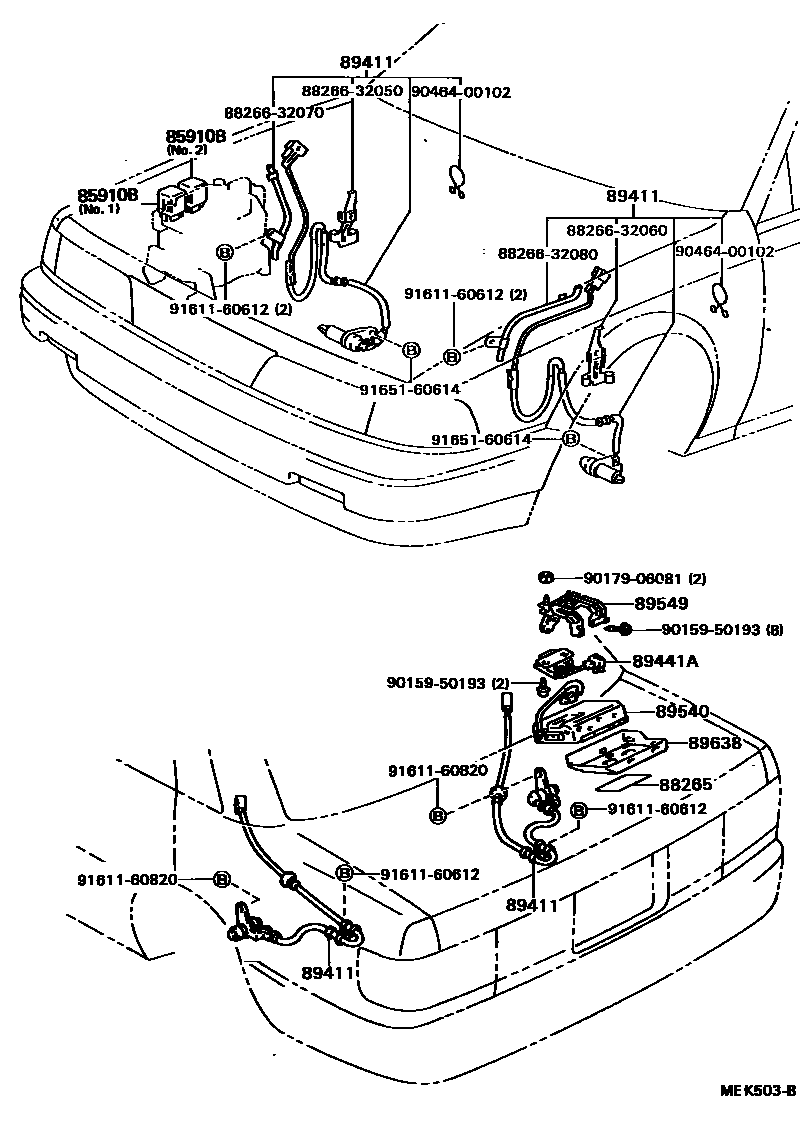

Toyota CAMRY ABS 和 VSC EPC diagram — MEK503B
ABS 和 VSC — MEK503B (198710 – 999999)

PNC and OE references

PNCPart nameOE numbers
85910BCircuit breaking relay assembly (for ESC)88263-14110 · 88263-14120
88265Anti-skid control warning label88265-20040
89411Speed sensor89542-32010 · 89543-32010 · 89545-32010 · 89545-32020 · 89546-32010 · 89546-32020
89441Adeceleration sensor89441-32010
89540Anti-skid control ECU assembly89541-32020 · 89541-32030
89549Anti-slip control ECU bracket88267-32070 · 88268-32060 · 88269-32060 · 89549-32020
89638Brake control ECU cover89638-32010
