Toyota CAMRY 电子燃油喷射系统 — Figure 8404

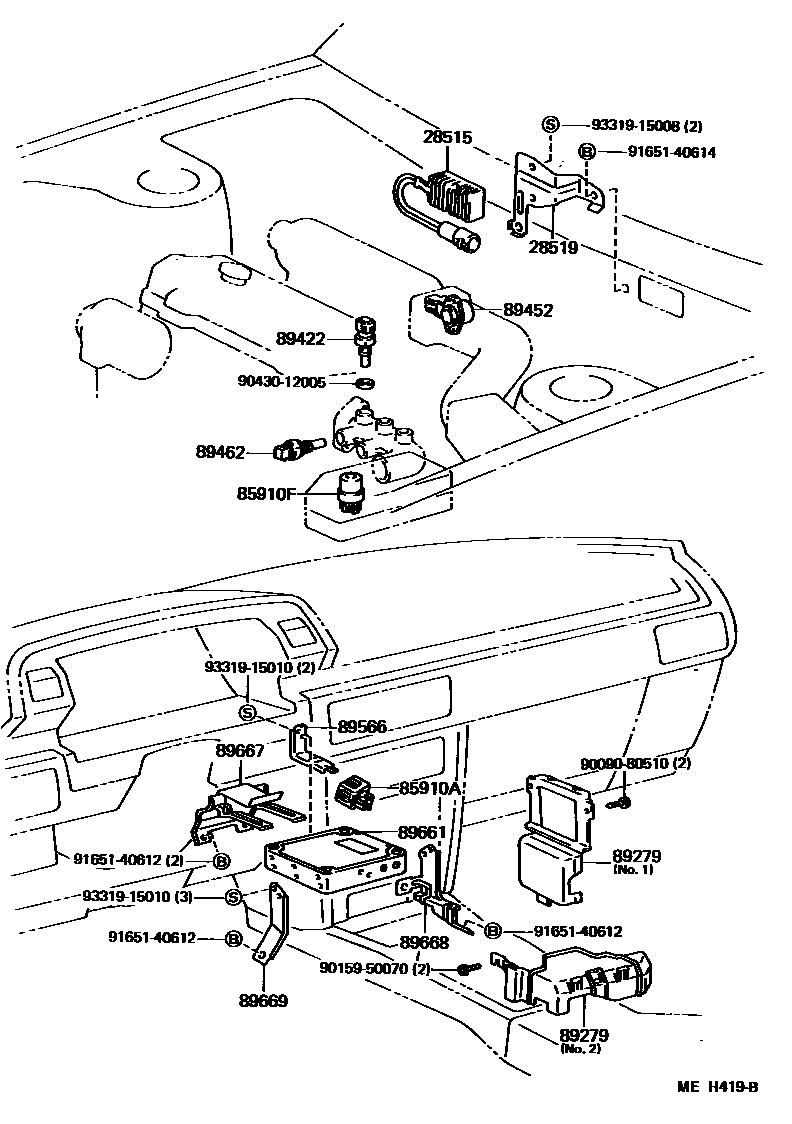

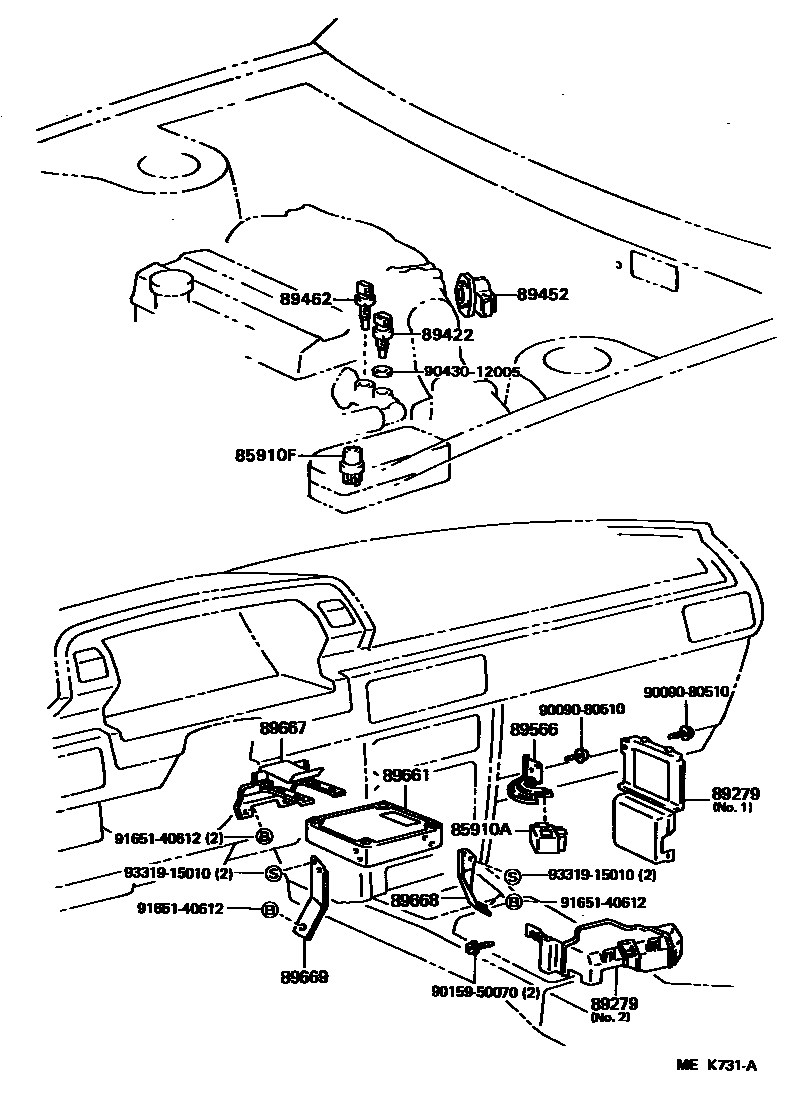

Toyota CAMRY EPC diagram 8404, 电子燃油喷射系统, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28515 | Solenoid valve resistor | 28515-11010 |
| 28519 | Solenoid valve resistor bracket | 28519-63020 |
| 85910A | Circuit breaking relay assembly (for EFI) | 85910-30050 |
| 85910F | ECU relay (for EFI) | 90987-02004 |
| 89279 | Engine control ECU cover | 89279-32070 · 89279-32090 · 89279-32110 |
| 89422 | Water temperature sensor (for E.F.I.) | 89422-30020 |
| 89452 | Throttle position sensor (for E.F.I.) | 89452-20050 · 89452-28030 · 89452-32020 |
| 89462 | Start injector timing switch | 89462-30011 · 89462-40010 |
| 89566 | Fuel injection ECU bracket | 89566-32030 |
| 89661 | Engine control ECU | 89661-20440 · 89661-20441 · 89661-32070 · 89661-32160 · 89661-32230 · 89661-32231 · 89661-32250 · 89661-32260 · 89661-32270 · 89661-32280 |
| 89667 | Engine control ECU bracket | 89667-32020 |
| 89668 | No. 2 engine control ECU bracket | 89668-32020 · 89668-32030 |
| 89669 | No. 3 engine control ECU bracket | 89669-32040 |
