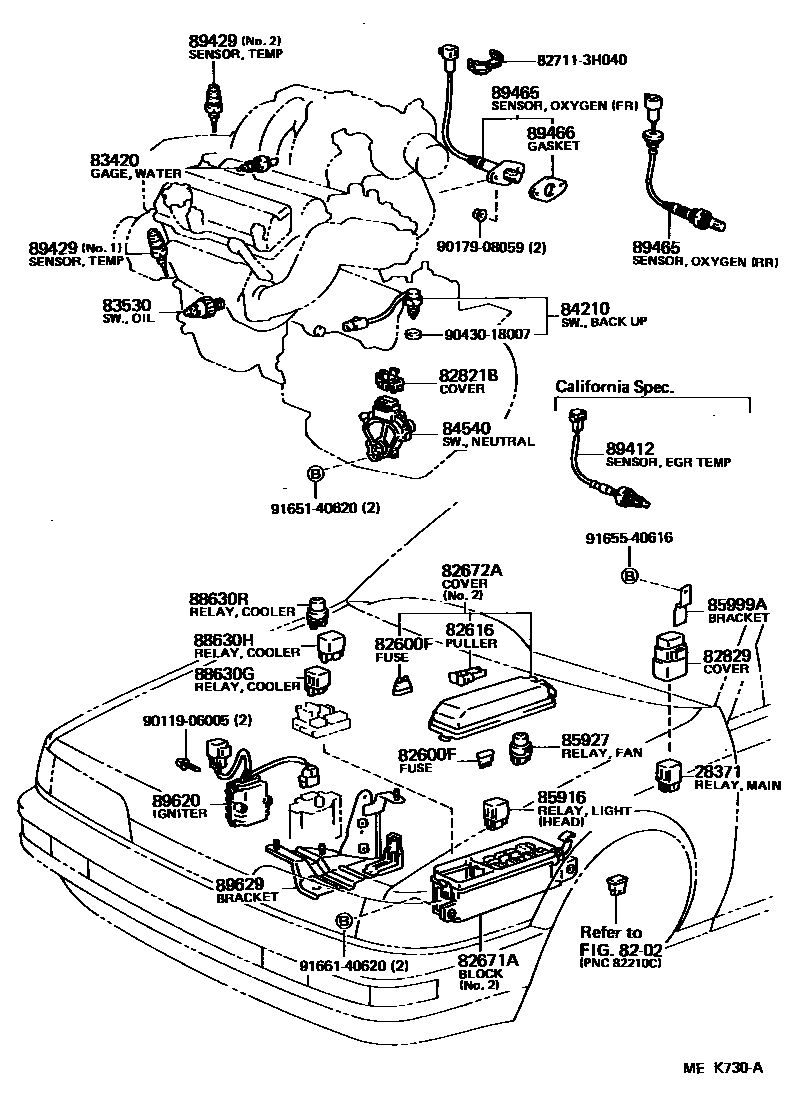

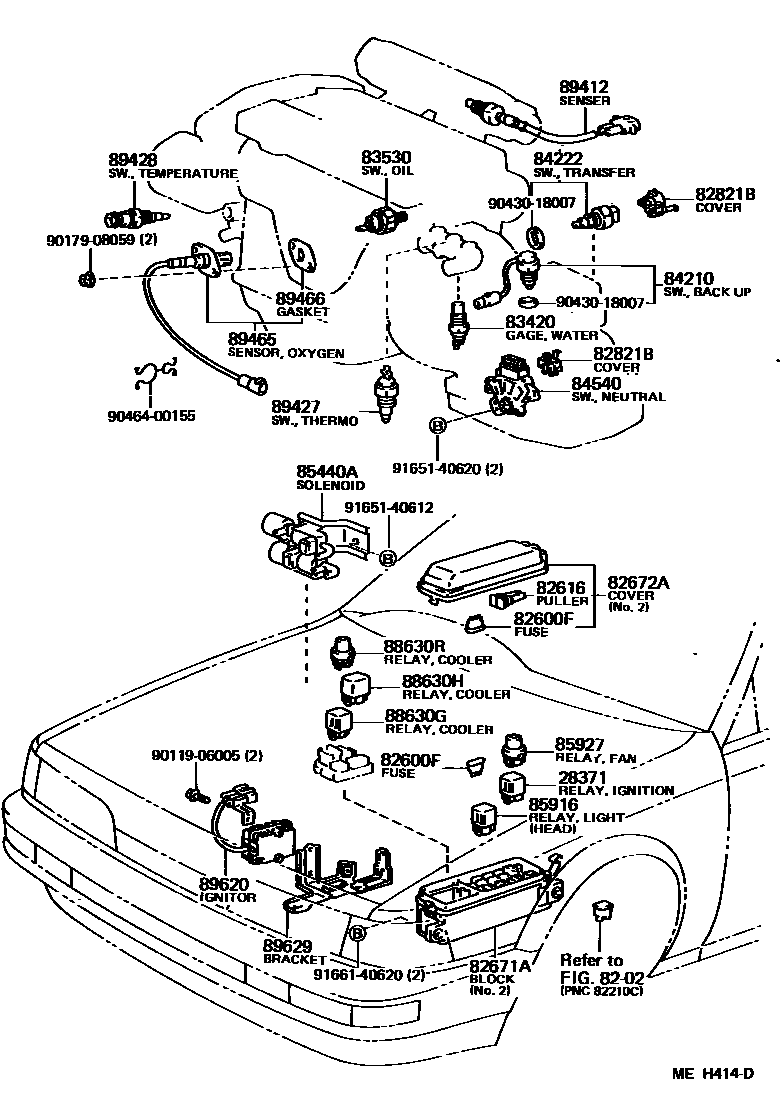

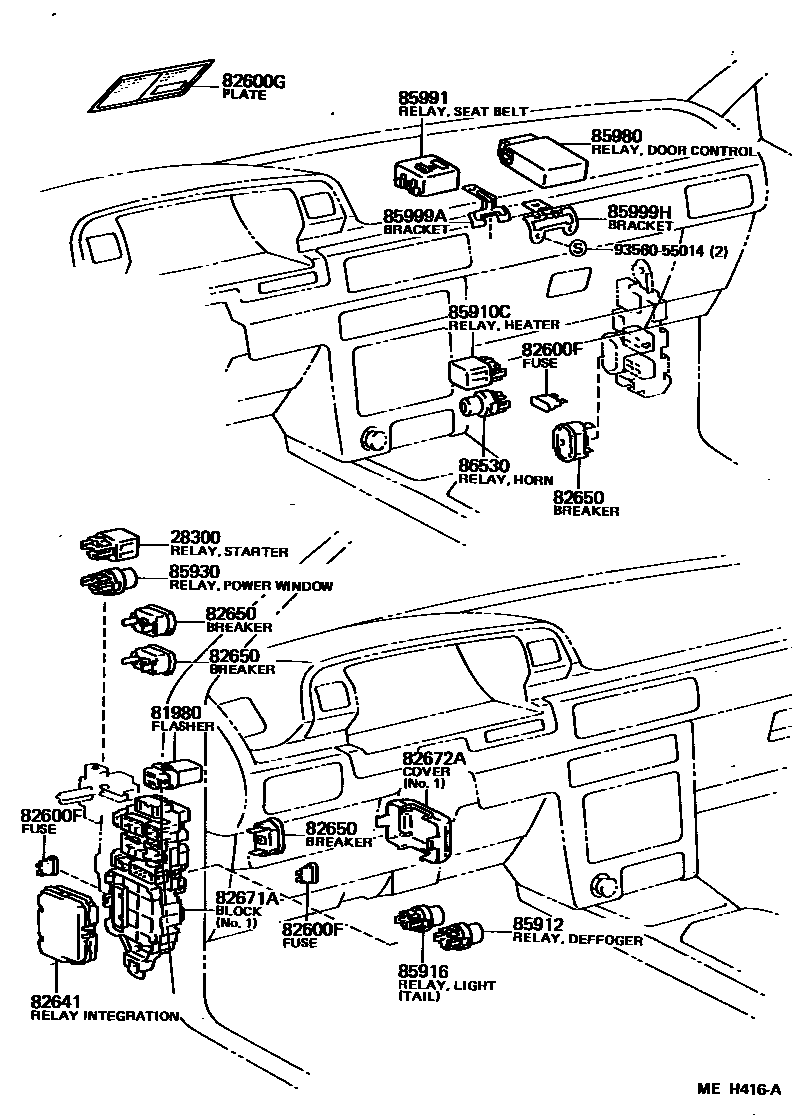

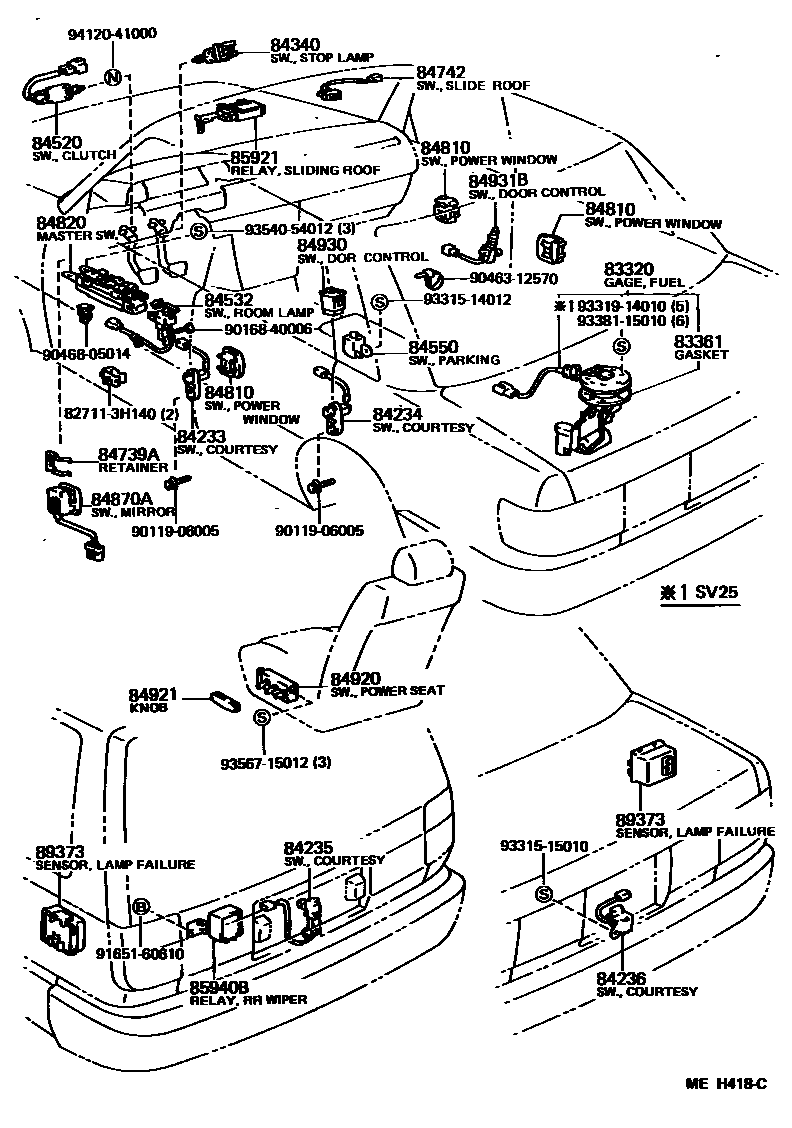

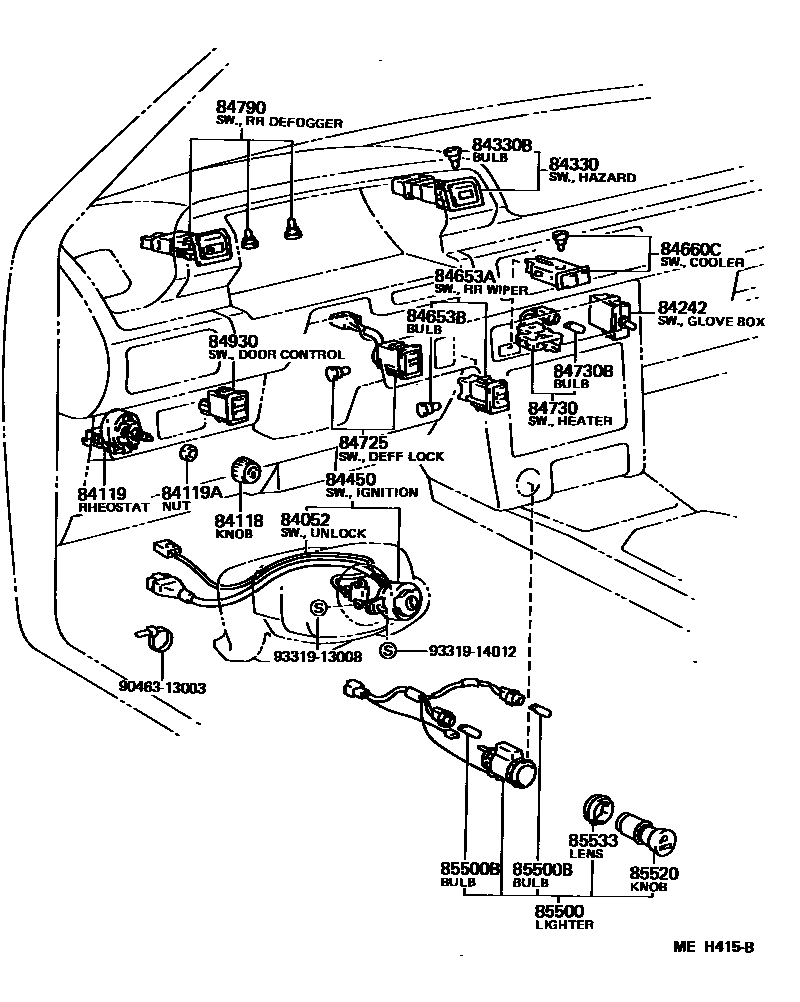

Toyota CAMRY 开关和继电器和ECU — Figure 8401
Toyota CAMRY EPC diagram 8401, 开关和继电器和ECU, with 6 images and 83 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-16010 |
| 28371 | No. 1 ignition relay | 85913-30020 · 90987-04002 |
| 81980 | Turn signal flasher relay assembly | 81980-16010 |
| 82600F | Spare fuse | 90982-09002 · 90982-09003 · 90982-09004 · 90982-09005 |
| 82600G | Warning nameplate (for fuses) | 82685-32010 |
| 82616 | fuse puller | 82616-12010 |
| 82641 | Integrated relay No. 1 | 82641-32020 · 82641-32030 |
| 82650 | No. 1 circuit breaker assembly | 82650-20011 |
| 82671A | junction box | 82671-14010 · 82671-20030 · 82671-32030 |
| 82672A | Junction box cover | 82672-32020 · 82672-32060 · 82672-32260 |
| 82821B | Connector cover | 82821-12250 · 82821-32050 · 82821-35010 |
| 82829 | relay cover | 82825-20010 |
| 83320 | Fuel gauge sensor assembly | 83320-39785 · 83320-39795 · 83320-80095 · 83320-80096 |
| 83361 | fuel gauge sensor gasket | 83361-32020 |
| 83420 | Water temperature sensor assembly | 83420-16020 · 83420-20020 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-30050 · 83530-30080 |
| 84052 | Unlock warning switch assembly | 84052-32010 |
| 84110 | No. 1 light control switch assembly | 84112-39355 · 84112-39385 |
| 84118 | Light control rheostat button | 84118-20011 |
| 84119 | Light control rheostat | 84119-20140 · 84119-22140 |
| 84119A | Rheostat control retaining bolt or nut | 90170-09167 |
| 84140 | Headlight dimmer switch assembly | 84140-32050 · 84140-32070 |
| 84210 | Reversing light switch assembly | 84210-60021 |
| 84222 | No. 1 transfer case indicator switch | 84222-12010 |
| 84233 | Door control light switch assembly (for front door) | 84231-32020 |
| 84234 | Door control light switch assembly (for rear door) | 84231-24010 |
| 84235 | Door control light switch assembly (for back door) | 84230-16020 |
| 84236 | Door control light switch assembly (for trunk) | 84231-20110 |
| 84242 | Glove box light switch | 84242-20030 |

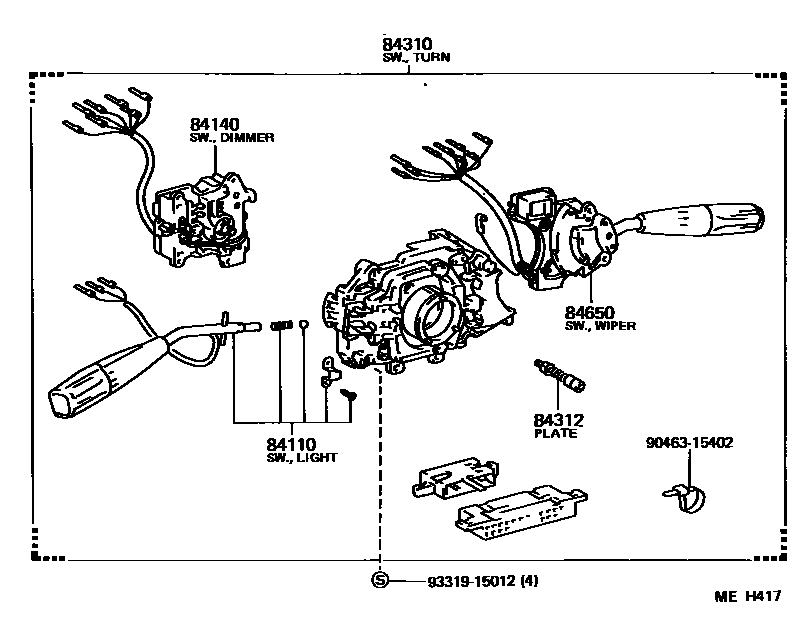

| 84310 | Turn signal switch assembly | 84310-32380 · 84310-32390 · 84310-32490 · 84310-32520 |
| 84312 | Speaker contact piece | 84312-32010 · 84312-32020 |
| 84330 | Hazard warning signal switch assembly | 84332-32120 |
| 84330B | Hazard warning signal switch light bulb | 84999-10190 |
| 84340 | brake light switch assembly | 84340-22100 · 84340-22110 · 84340-30030 · 84340-32010 |
| 84450 | Ignition or starter switch assembly | 84450-32030 · 84450-32031 |
| 84520 | Clutch start switch assembly | 84520-12010 · 84520-32020 |
| 84532 | Interior light fixture switch | 84532-32030 |
| 84540 | Neutral start switch assembly | 84540-32070 · 84540-32090 |
| 84550 | Parking brake switch assembly | 84550-12060 |
| 84650 | Windshield wiper switch assembly | 84652-32380 · 84652-32390 · 84652-32490 · 84652-32520 |
| 84653A | Rear wiper switch | 84653-32030 |
| 84653B | Rear wiper switch light bulb | 84999-10170 |
| 84660C | Cooler switch | 84660-20090 |
| 84725 | Center differential lock switch | 84725-32010 |
| 84730 | Heater blower switch assembly | 84732-32080 |
| 84730B | heater blower switch light bulb | 81850-32160 |
| 84739A | switch fixture | 84739-32010 |
| 84742 | Sliding sunroof limit switch | 84742-32010 |
| 84790 | Rear window defogger switch assembly | 84790-32080 · 84790-32081 |
| 84810 | Electric window lift switch assembly | 84810-32050 |
| 84820 | Electric window lift main switch assembly | 84820-32120 |
| 84920 | Electric seat switch assembly | 84922-14020 |
| 84930 | Door control switch assembly | 84930-32020 · 84930-32030 |
| 84931B | door control switch | 84931-32040 |
| 85440A | Four-wheel drive control solenoid valve assembly | 85440-32010 |
| 85500 | Cigarette lighter assembly | 85500-32060 |
| 85500B | Cigarette lighter bulb | 90981-11014 |
| 85520 | Cigarette lighter button and cigarette lighter core assembly | 85520-20080 |
| 85533 | Cigarette lighter indicator lamp shade | 85533-20011 |
| 85910C | Relay assembly (for heater blower motor) | 85913-30020 · 90987-04002 |
| 85912 | defogger relay | 90987-02002 · 90987-02004 |
| 85916 | Light control relay | 90987-02002 · 90987-02004 · 90987-02006 |
| 85921 | Sliding sunroof control relay | 85921-32010 |
| 85927 | cooling fan relay | 85925-32010 · 90987-03001 |
| 85930 | Electric window relay assembly | 90987-02002 · 90987-02004 |
| 85940B | Rear wiper relay assembly | 85940-32060 |
| 85980 | Door control relay assembly | 85980-32060 |
| 85991 | Seat belt warning relay | 85991-32021 |
| 85999A | No. 2 relay bracket | 85999-20240 · 85999-32020 · 85999-32021 |
| 85999H | Relay bracket | 85999-32030 |
| 86530 | Speaker relay assembly | 90987-02002 · 90987-02004 |
| 88630G | Cooler relay assembly | 85926-30020 |
| 88630H | Cooler relay assembly | 88630-32010 |
| 88630R | No. 3 cooler relay assembly | 90987-02004 |
| 89373 | Malfunction indicator light sensor | 89373-32120 · 89373-32130 |
| 89412 | E.G.R exhaust gas temperature sensor | 89412-12010 |
| 89427 | Temperature detection switch | 89427-32021 |
| 89428 | No. 2 temperature detection switch | 89428-20060 · 89428-32010 |
| 89429 | oil temperature sensor | 89429-16010 · 89429-32020 |
| 89465 | oxygen sensor | 89465-29285 · 89465-32090 · 89465-39145 · 89465-39185 |
| 89466 | Oxygen sensor pad | 89466-20020 · 89466-30010 |
| 89620 | Ignition assembly | 89620-32110 · 89621-32010 |
| 89629 | Ignition bracket assembly | 89629-32040 · 89629-32070 |
