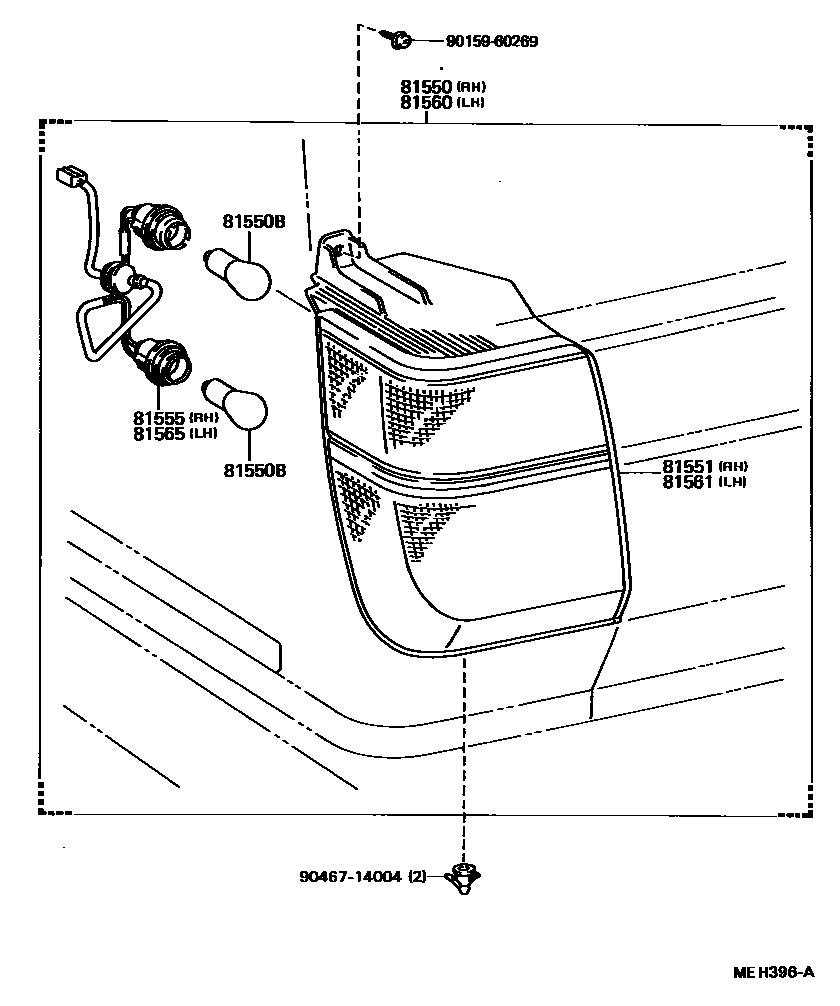

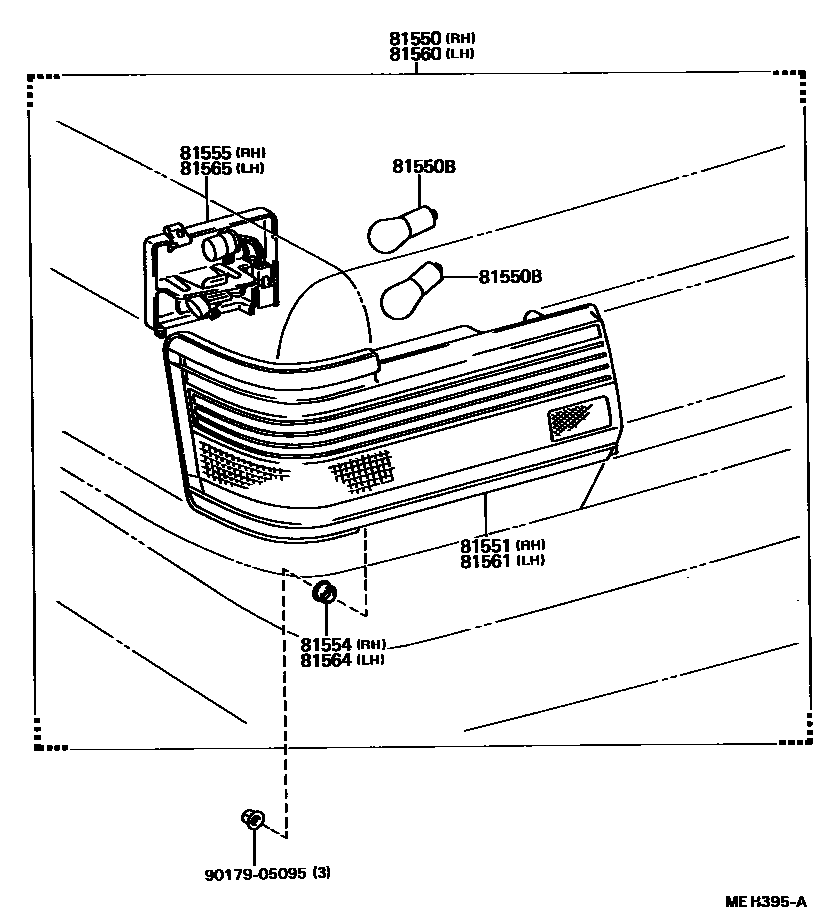

Toyota CAMRY 后组合灯 — Figure 8111
Toyota CAMRY EPC diagram 8111, 后组合灯, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81550 | Right rear combination light assembly | 81550-32140 · 81550-32170 |
| 81550B | Bulb (for rear combination lights) | 99132-11270 · 99132-21270 |
| 81551 | Right rear combination lamp shade | 81551-32140 · 81551-32170 |
| 81554 | Right rear combination lamp body gasket | 81558-20720 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-32140 · 81555-32160 |
| 81560 | Left rear combination light assembly | 81560-32140 · 81560-32170 |
| 81561 | Left rear combination lamp shade | 81561-32140 · 81561-32170 |
| 81564 | Left rear combination lamp body gasket | 81558-20720 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81565-32140 · 81565-32160 |
