Toyota CAMRY 背门板和背门玻璃 — Figure 6708

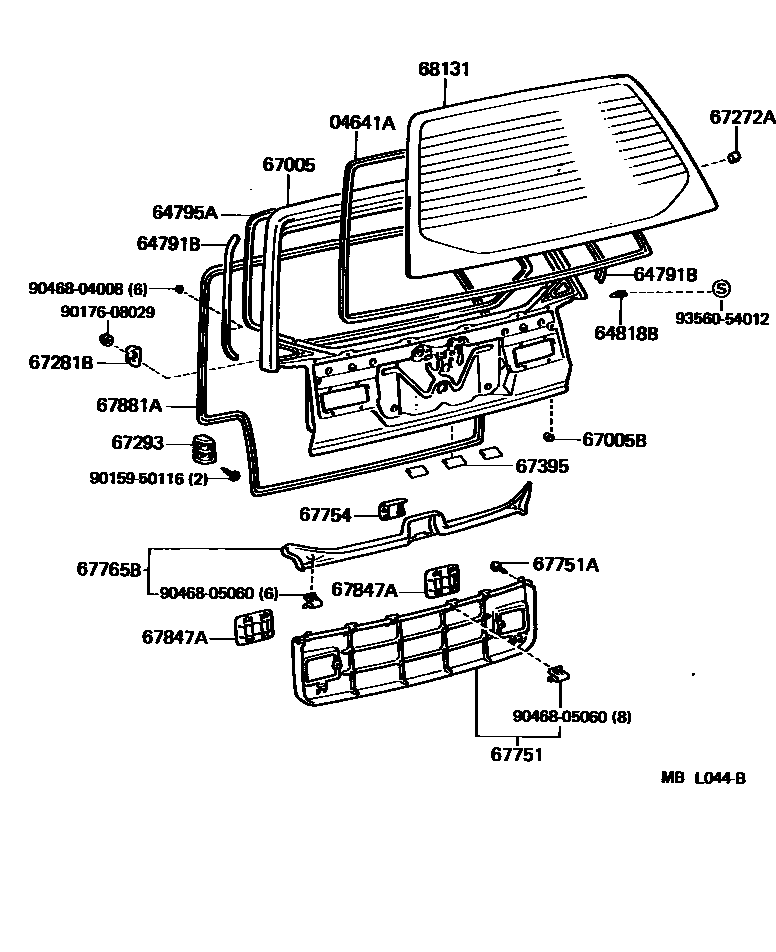

Toyota CAMRY EPC diagram 6708, 背门板和背门玻璃, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04641A | Rear window glass adhesive sealing strip assembly | 04562-30040 |
| 64818B | No. 1 back door glass spacer | 64818-32010 |
| 67005 | Rear door panel sub-assembly | 67005-32160 |
| 67005B | Cushion pad (for back door panel) | 90541-11003 |
| 67272A | No. 2 rear door stop buffer pad | 67272-32010 |
| 67281B | Back door lower block | 67281-32020 |
| 67293 | Back door lower block cushion | 67293-32020 · 67294-32020 |
| 67395 | Protective parts under rear door | 67395-32010 |
| 67881A | Back door seal | 67881-32030 |
| 68131 | back door glass | 68131-32090 · 68131-32110 |
