Toyota CAMRY 前门板和前门玻璃 — Figure 6701

Toyota CAMRY EPC diagram 6701, 前门板和前门玻璃, with 2 images and 31 PNC and OE references.

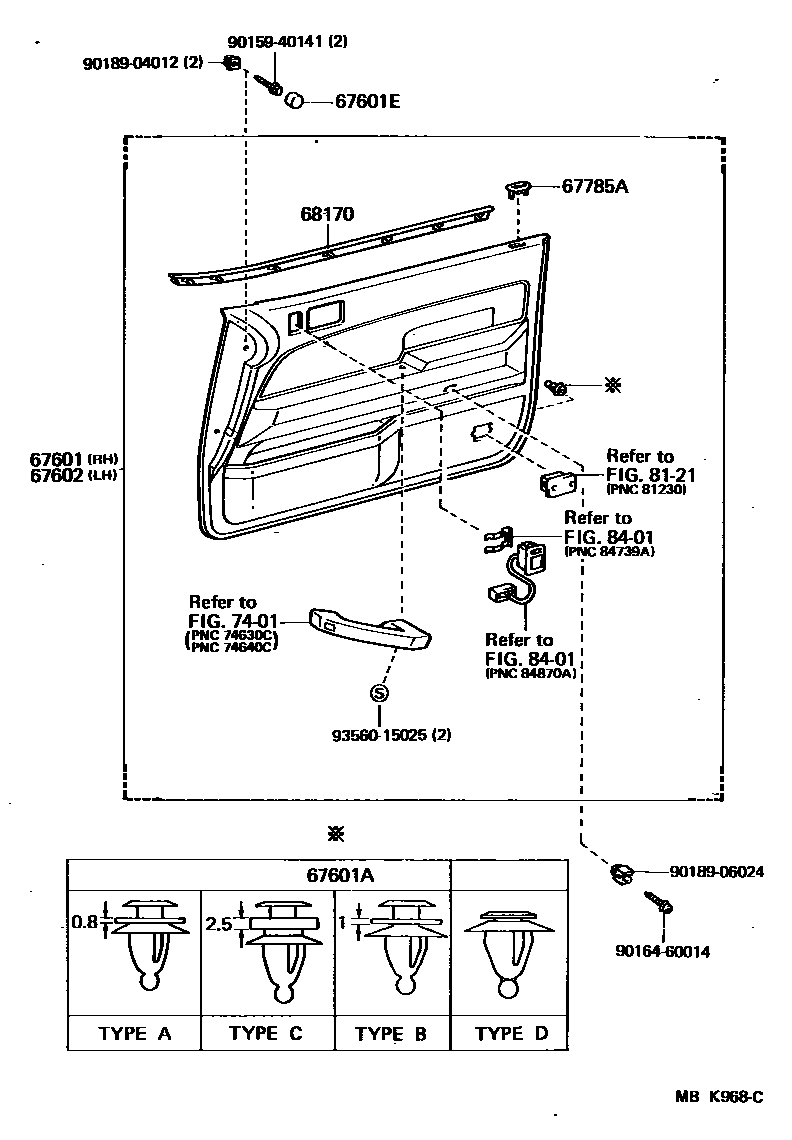

Toyota CAMRY 前门板和前门玻璃 EPC diagram — MBK968C
前门板和前门玻璃 — MBK968C (198608 – 999999)

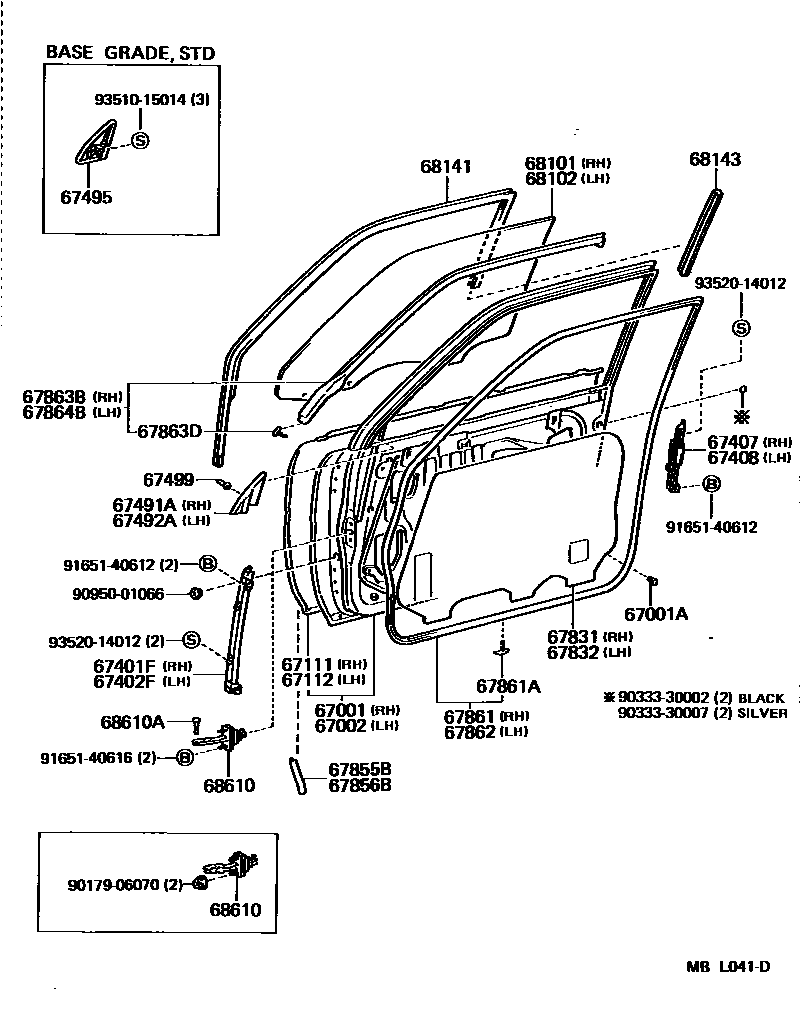

Toyota CAMRY 前门板和前门玻璃 EPC diagram — MBL041D
前门板和前门玻璃 — MBL041D (198608 – 999999)

PNC and OE references

PNCPart nameOE numbers
67001Right front door panel sub-assembly67001-32160
67001AFront door panel cushion90541-09006
67002Left front door panel sub-assembly67002-32170
67111Outer right front door panel67111-32040
67112Outer left front door panel67112-32040
67401FRight front door front lower door frame sub-assembly67401-32080
67402FLeft front door front lower door frame sub-assembly67402-32080
67407Right front door rear lower door frame sub-assembly67403-32040
67408Left front door rear lower door frame sub-assembly67404-32040
67491ARight front door lower door frame bracket decorative strip67491-32070 · 67491-32080
67492ALeft front door lower door frame bracket decorative strip67492-32070 · 67492-32080
67495Front door lower door frame upper cover67495-32040
67499Front door lower door frame bracket trim strip fixing67499-32010
67601AFixings (for front door trim)67771-14030 · 67771-14040 · 67771-32040 · 67771-32060
67831Right front door access hole cover67831-32050
67832Left front door access hole cover67832-32050
67855BRight front door panel protector58741-12060
67856BLeft front door panel protector58741-12060
67861Right front door seal67861-32090
67861AFixing piece (for front door sealing strip)67868-30040 · 67868-32010
67862Left front door seal67862-32090
67863BRight front door seal No. 267863-32010
67863DRight side fixing piece (for front door seal No. 2)67868-22010 · 67868-30040
67864BLeft front door seal No. 267864-32010
68101Right front door glass sub-assembly68111-32100 · 68111-32120
68102Left front door glass sub-assembly68112-32100 · 68112-32120
68141Front door glass lift chute68141-32070 · 68151-32010
68143Lift chute under front door glass68143-32040
68170Front door glass inner sealing strip assembly68170-32040
68610Front door opening limiter assembly68610-32040 · 68610-32041
68610APin (for front door opening limiter)68617-32010
