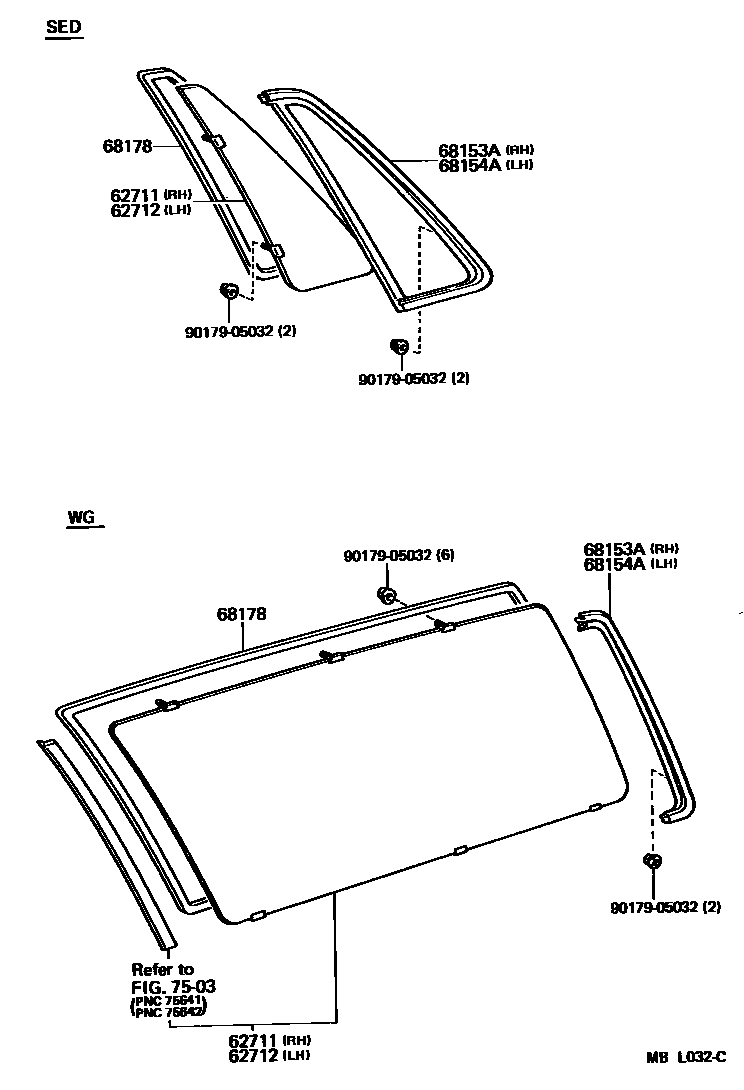

Toyota CAMRY 角窗 — Figure 6103
Toyota CAMRY EPC diagram 6103, 角窗, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62711 | Right corner window glass | 62710-32010 · 62710-32020 · 62710-32040 · 62710-32050 · 62711-32180 · 62711-32210 |
| 62712 | Left corner window glass | 62712-32190 · 62712-32240 · 62720-32010 · 62720-32020 |
| 68153A | Right corner window No. 2 glass protective strip | 68153-32040 · 68153-32050 |
| 68154A | No. 2 glass protective strip for left corner window | 68154-32040 · 68154-32050 |
| 68178 | Corner window glass seal No. 2 | 68177-32030 |
