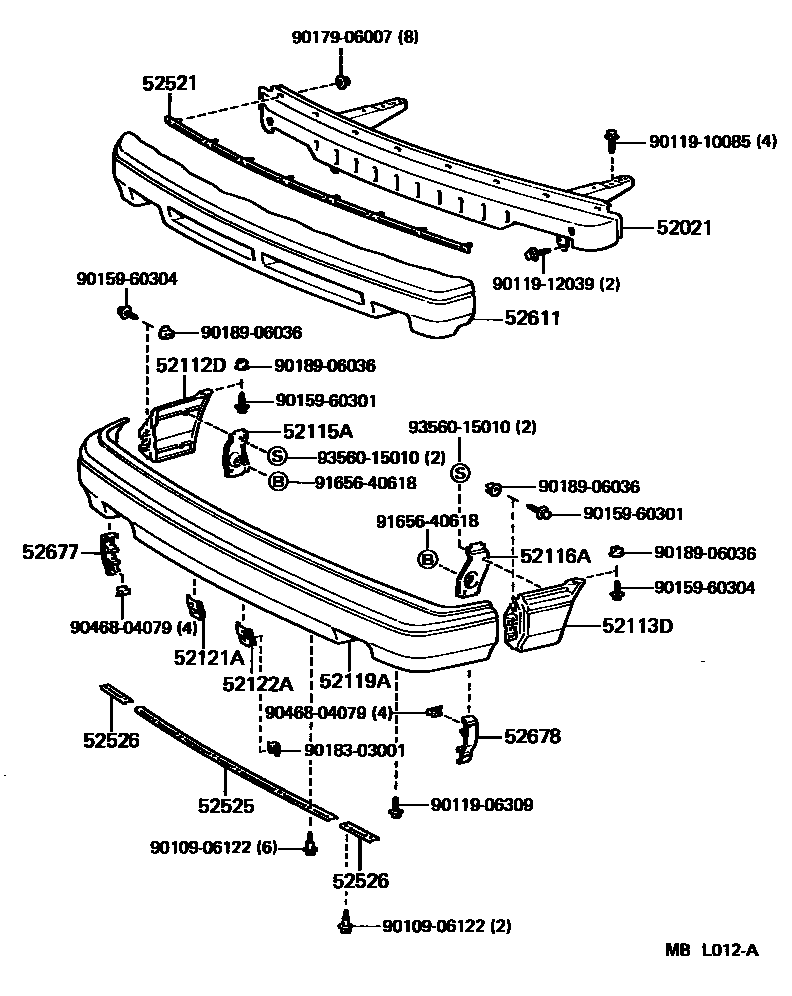

Toyota CAMRY 前保险杠及附件 — Figure 5201
Toyota CAMRY EPC diagram 5201, 前保险杠及附件, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52021 | Front bumper reinforcement sub-assembly | 52021-32040 |
| 52112D | Front bumper right extension | 52112-32030 |
| 52113D | Front bumper left extension | 52113-32030 |
| 52115A | Front bumper right side bracket | 52115-32020 |
| 52116A | Front bumper left bracket | 52116-32020 |
| 52119A | front bumper cover | 52119-32180 · 52119-32907 |
| 52121A | Front license plate right mounting bracket | 52121-32040 |
| 52122A | Front license plate left mounting bracket | 52122-32010 |
| 52521 | Front bumper upper center fixing bracket | 52521-32060 |
| 52525 | Front bumper lower center fixing bracket | 52525-32020 |
| 52526 | Front bumper lower side fixing bracket | 52526-32040 |
| 52611 | front bumper energy absorber | 52611-32070 |
| 52677 | Front bumper No. 2 right side bracket | 52677-32020 |
| 52678 | Front bumper No. 2 left side bracket | 52678-32020 |
