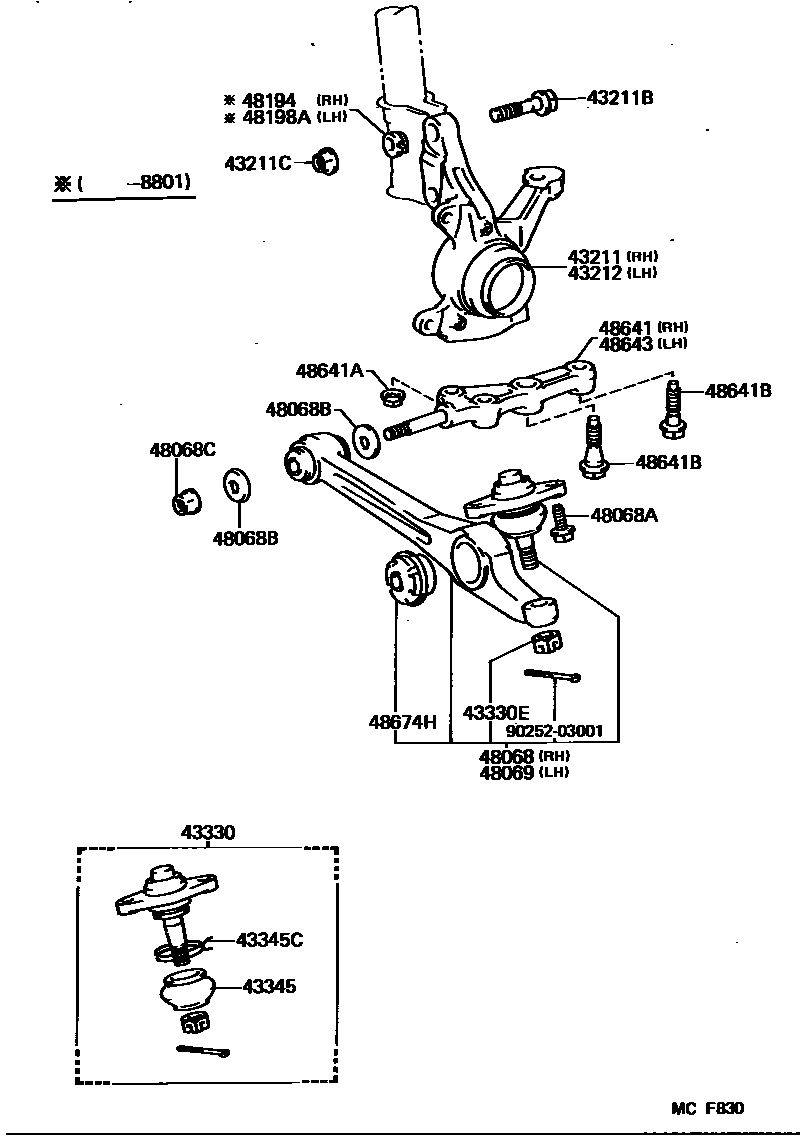

Toyota CAMRY 前桥控制臂和转向节 — Figure 4802
Toyota CAMRY EPC diagram 4802, 前桥控制臂和转向节, with 1 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 43211 | Right steering knuckle | 43211-32030 · 43211-32040 · 43211-32041 · 43211-32060 |
| 43211B | Bolts (for securing the shock absorber) | 90105-17001 |
| 43211C | Nut (for fixing the shock absorber) | 90179-17001 |
| 43212 | left steering knuckle | 43212-32030 · 43212-32040 · 43212-32041 · 43212-32060 |
| 43330 | Front lower ball joint assembly | 43330-39135 |
| 43330E | Castle nut (used to secure the front lower ball joint) | 90171-14002 |
| 43345 | Lower ball joint dust cover | 43345-32010 |
| 43345C | Wiring harness (for lower ball joint dust cover) | 90580-10002 |
| 48068 | Right front suspension No. 1 lower arm sub-assembly | 48620-32040 |
| 48068A | Bolt (for front suspension lower arm) | 90105-12142 |
| 48068B | Crash pad retainer (for front suspension lower arm) | 90948-02088 · 90948-02103 |
| 48068C | Nut (for front suspension lower arm) | 90179-16004 |
| 48069 | Left front suspension No. 1 lower arm sub-assembly | 48640-32040 |
| 48194 | Right camber angle adjustment cam | 48194-32030 |
| 48198A | Left camber angle adjustment cam | 48198-32030 |
| 48641 | Right lower arm shaft | 48641-32010 |
| 48641A | Nut (for suspension lower arm shaft) | 90179-14007 |
| 48641B | Bolt (for suspension lower arm shaft) | 90105-14049 · 90105-14056 |
| 48643 | left lower arm axis | 48643-32010 |
| 48674H | Support rod cushion | 48674-32090 |
