Toyota CAMRY 警示铭牌和名称铭牌(发动机) — Figure 1709

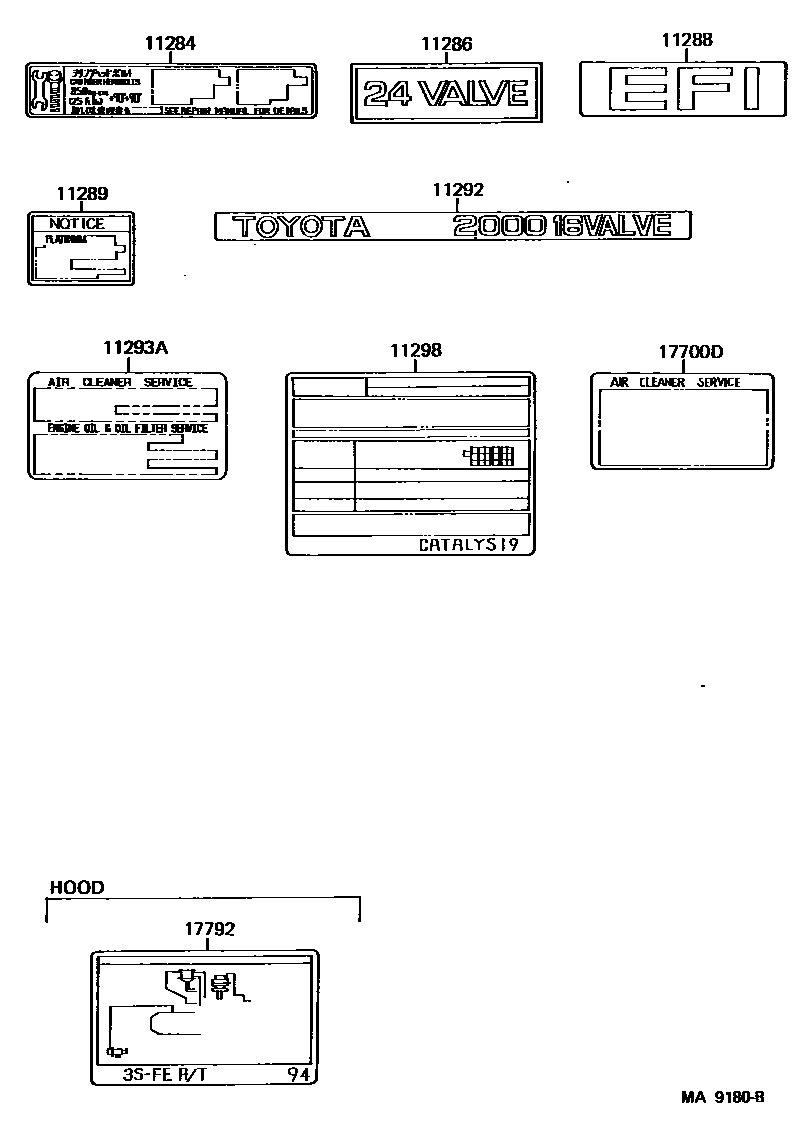

Toyota CAMRY EPC diagram 1709, 警示铭牌和名称铭牌(发动机), with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11284 | Engine bolt information plate | 11284-62010 |
| 11286 | Engine specification plate | 11286-62010 |
| 11288 | Engine system nameplate | 11288-74020 |
| 11289 | Spark plug warning nameplate | 11289-73020 |
| 11292 | Engine No. 2 name plate | 11292-74020 · 11292-74021 |
| 11293A | Engine warning plate | 11293-74070 |
| 11298 | Emission control information plate | 11298-62010 · 11298-62020 · 11298-74230 · 11298-74240 · 11298-74320 · 11298-74330 · 11298-74360 · 11298-74370 |
| 17700D | Engine warning plate | 11293-74070 |
| 17792 | Engine vacuum hose information plate | 17792-62010 · 17792-74120 · 17792-74130 |
