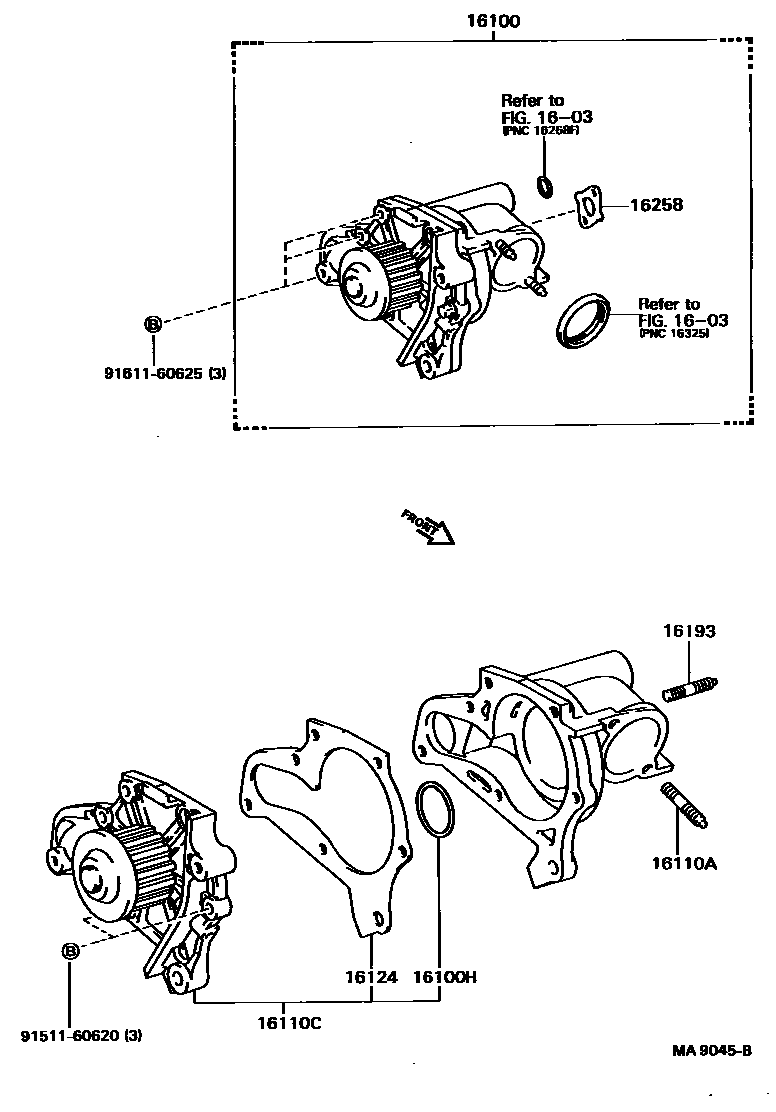

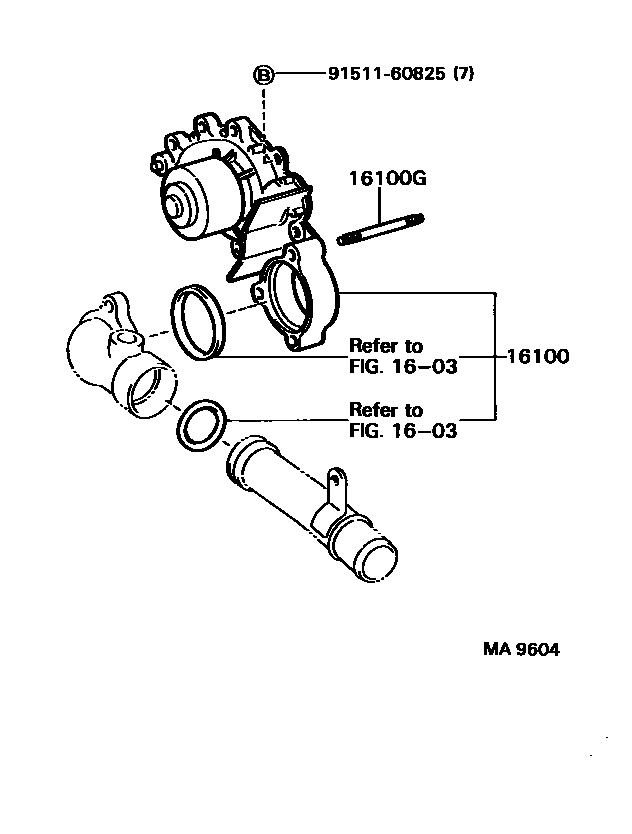

Toyota CAMRY Water Pump — Figure 1601
Toyota CAMRY EPC diagram 1601, Water Pump, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16100 | Engine water pump assembly | 16100-69205 · 16100-69206 · 16100-79075 |
| 16100G | Studs (for water pump assembly) | 90116-08270 |
| 16100H | O-ring (for water pump) | 90301-37005 · 96711-24037 |
| 16110A | Stud bolts (for fixing the water outlet) | 16193-63010 |
| 16110C | Water pump assembly without cover | 16110-79025 |
| 16124 | water pump cover gasket | 16124-74010 |
| 16193 | Studs (for water pump cover) | 90029-01500 |
| 16258 | Pad (for heater return) | 16258-15011 |
