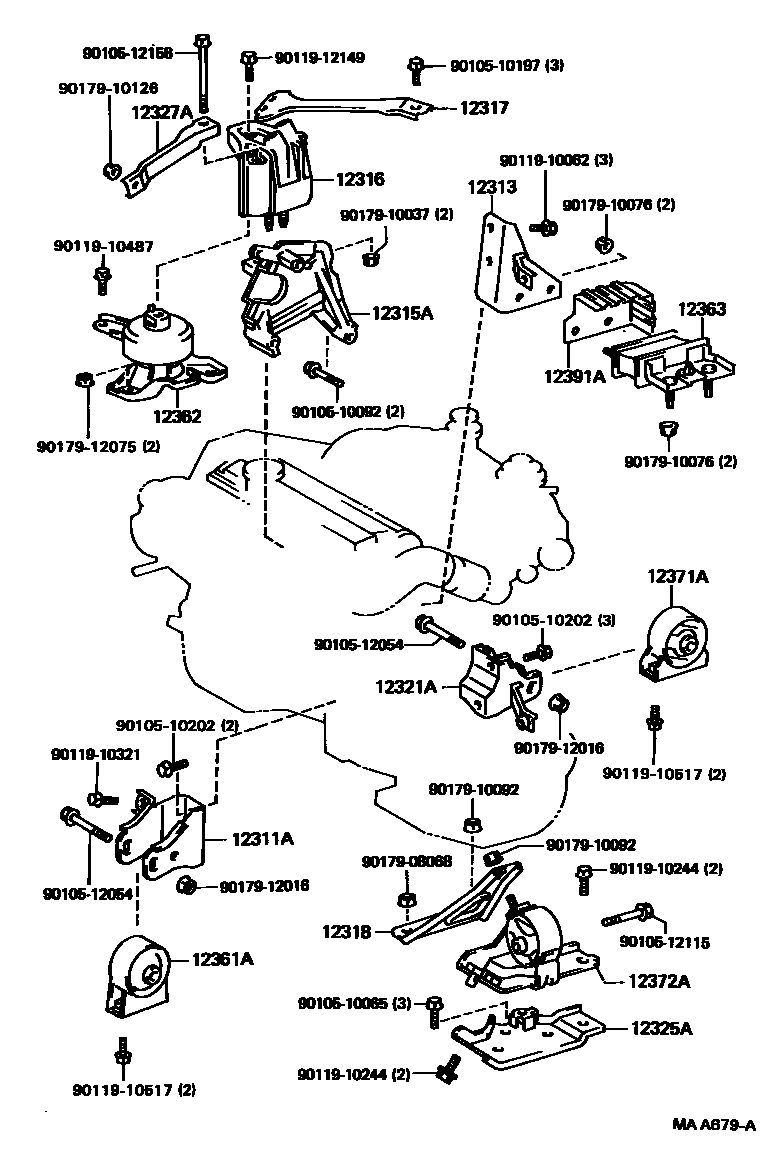

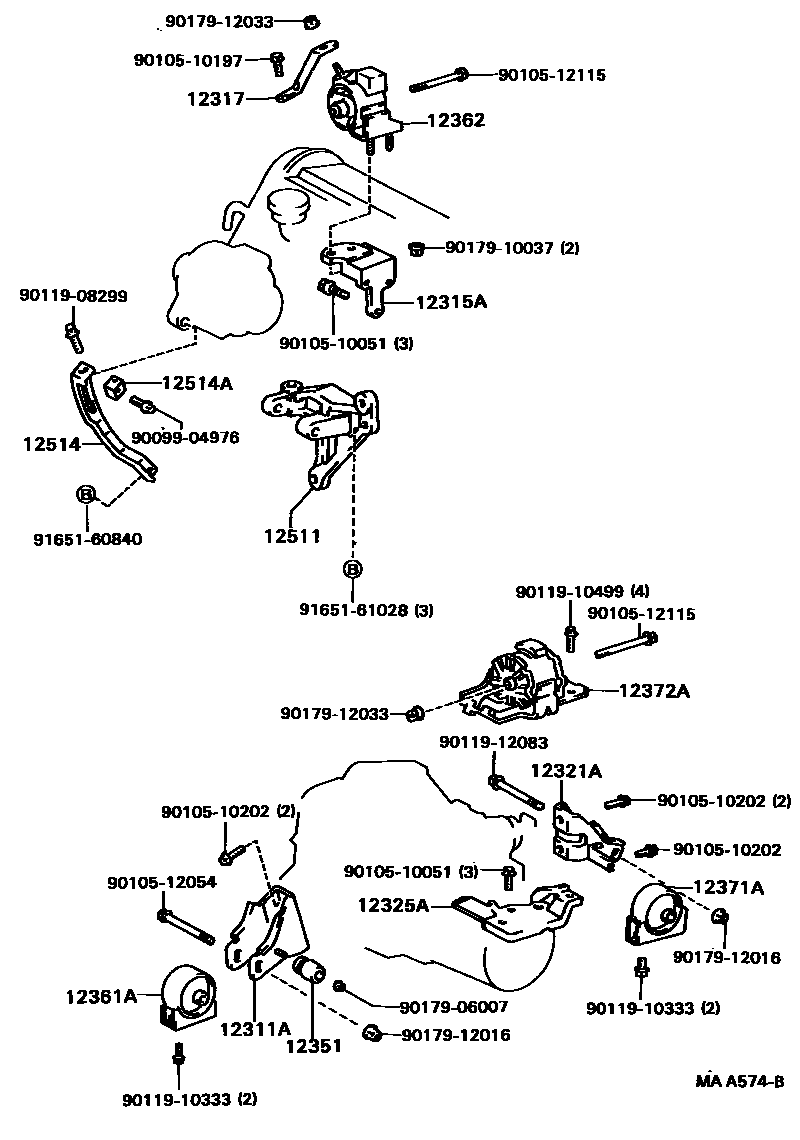

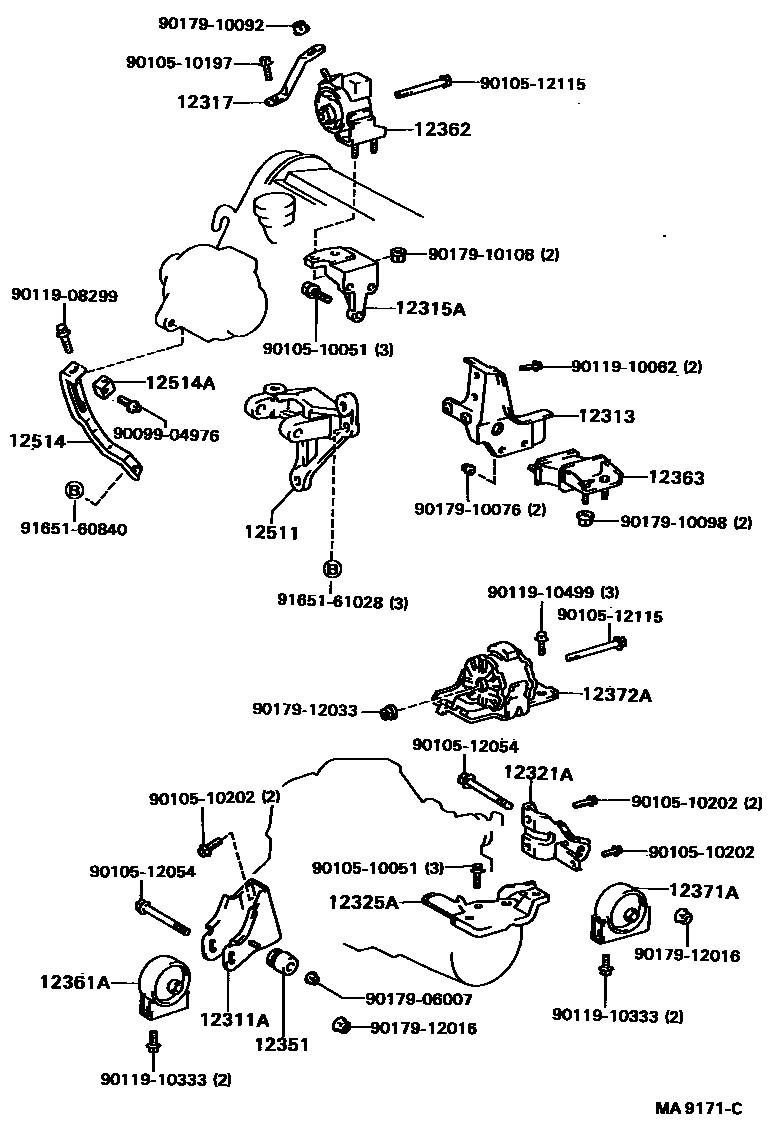

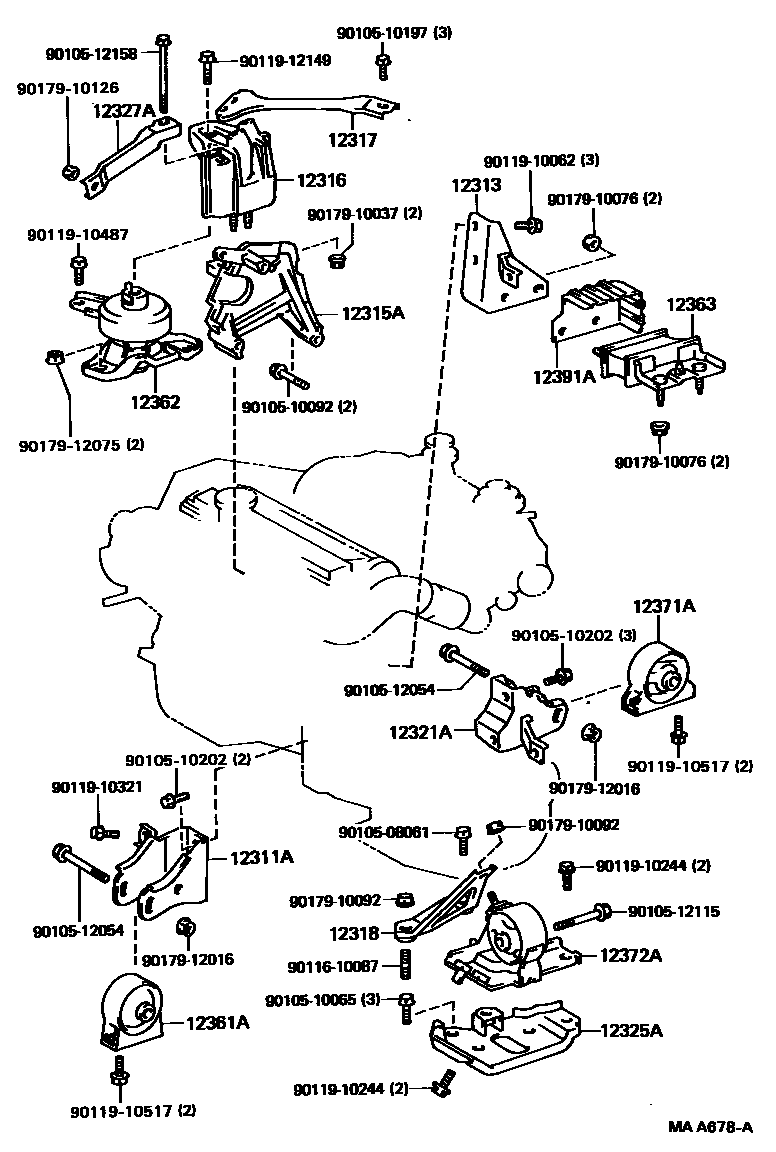

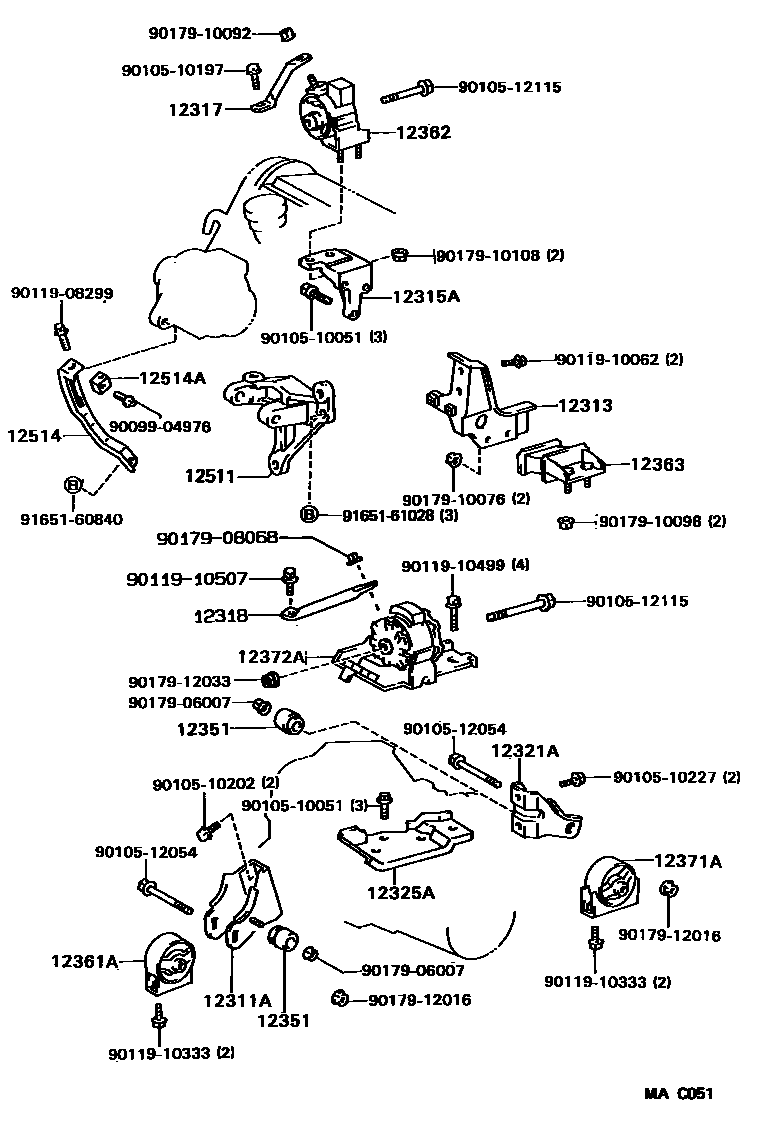

Toyota CAMRY Engine Mounting — Figure 1107
Toyota CAMRY EPC diagram 1107, Engine Mounting, with 5 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12311A | Engine front mounting bracket (for transverse engine) | 12311-62010 · 12311-74030 · 12311-74050 |
| 12313 | Engine mount control bracket (for transversely mounted engines) | 12313-62010 · 12313-74020 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-62020 · 12315-74030 |
| 12316 | Engine No. 2 right side suspension bracket | 12316-62010 |
| 12317 | Engine right mounting bracket | 12317-62020 · 12317-74010 |
| 12318 | Engine left mounting bracket | 12318-62010 · 12318-62011 · 12318-62030 · 12318-74030 |
| 12321A | Rear engine mounting bracket (for transverse engine) | 12321-62010 · 12321-62030 · 12321-64110 · 12321-64120 · 12321-74060 |
| 12325A | Engine left side mounting bracket (for transversely mounted engine) | 12325-62010 · 12325-62020 · 12325-74030 · 12325-74031 · 12325-74040 · 12325-74041 |
| 12327A | Engine No. 2 right side mounting bracket | 12327-62020 |
| 12351 | engine mount shock absorber | 12351-63010 · 12351-64020 |
| 12361A | Engine front mounting vibration isolation pad (for transversely mounted engine) | 12361-62011 · 12361-62020 · 12361-64120 · 12361-74010 · 12361-74020 |
| 12362 | Engine right side mounting vibration isolation pad (for transversely mounted engine) | 12362-62020 · 12362-74030 · 12362-74060 |
| 12363 | Engine center mount vibration isolation pad | 12363-74010 · 12363-74030 |
| 12371A | Engine rear mount vibration isolation pad | 12371-62011 · 12371-62020 · 12371-64100 · 12371-74030 · 12371-74060 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-62010 · 12372-62020 · 12372-74040 · 12372-74050 · 12372-74052 · 12372-74080 · 12372-74190 |
| 12391A | Engine center mount vibration isolation pad | 12391-62010 |
| 12511 | No. 1 generator bracket | 12511-74020 |
| 12514 | Generator belt adjustment lever | 12514-74010 |
| 12514A | Fan belt adjustment slider | 16385-64011 |
