Toyota CAMRY 暖风和空调系统 - 加热装置和鼓风机 — Figure 8712

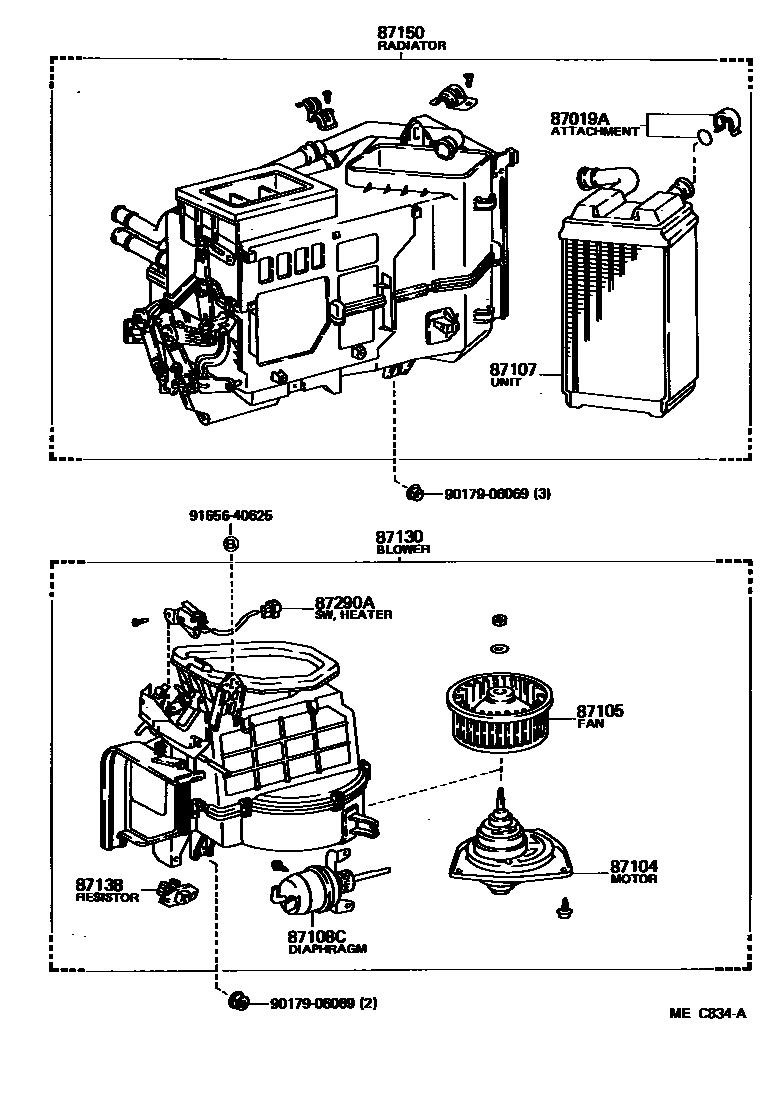

Toyota CAMRY EPC diagram 8712, 暖风和空调系统 - 加热装置和鼓风机, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87019A | heater connection | 87019-32010 |
| 87104 | Heater blower motor sub-assembly | 87104-32020 |
| 87105 | Heater blower fan sub-assembly | 87105-14020 |
| 87107 | Heater radiator device sub-assembly | 87107-32020 |
| 87108C | Heater blower damper diaphragm sub-assembly | 87108-32010 |
| 87130 | Front heater blower assembly | 87130-32020 · 87130-32030 |
| 87138 | Heater Blower Resistor | 87138-32010 |
| 87150 | Heater radiator assembly | 87150-32020 · 87150-32060 |
| 87290A | Heater switch assembly | 87290-32010 |
