Toyota CAMRY 后视镜 — Figure 8701

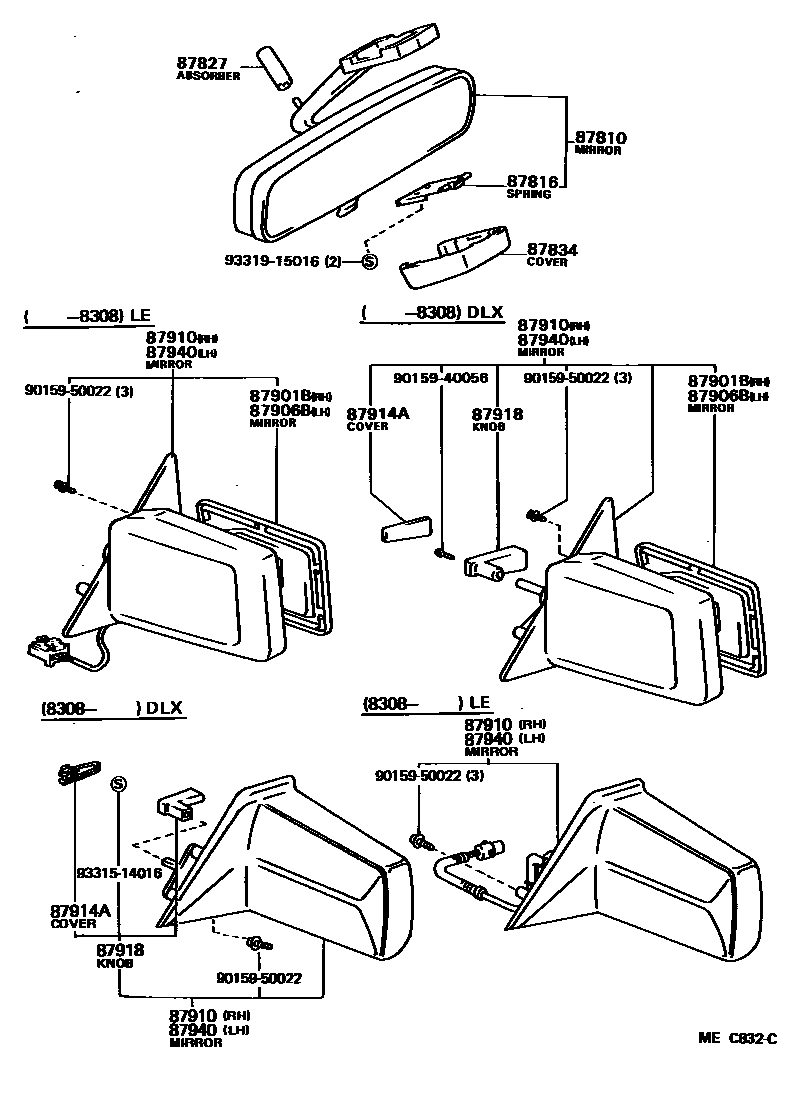

Toyota CAMRY EPC diagram 8701, 后视镜, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87816 | Interior rearview mirror spring | 74372-32010 |
| 87827 | Interior rearview mirror shock absorber | 87828-30010 |
| 87901B | Right exterior rearview mirror sub-assembly | 87908-32060 · 87908-32070 |
| 87906B | Left exterior rearview mirror sub-assembly | 87909-32030 · 87909-32040 |
| 87910 | Right exterior rearview mirror assembly | 87910-32050 · 87910-32060 · 87910-32100 · 87910-32110 |
| 87914A | Exterior rearview mirror button cover | 87914-14010 · 87914-16010 |
| 87918 | Exterior rearview mirror control handle | 87918-14050 · 87918-19015 |
| 87940 | Left exterior rearview mirror assembly | 87940-32050 · 87940-32060 · 87940-32100 · 87940-32110 |
