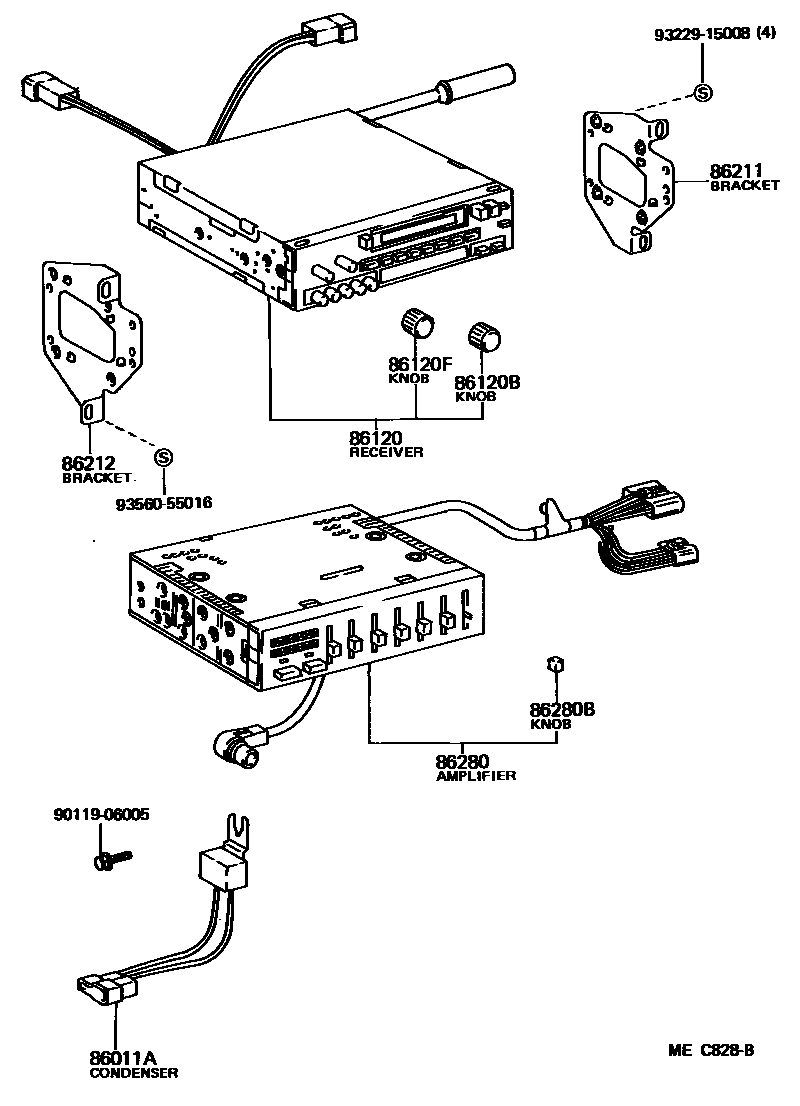

Toyota CAMRY 收音机、放大器和冷凝器 — Figure 8601
Toyota CAMRY EPC diagram 8601, 收音机、放大器和冷凝器, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86011A | radio settings phase modulator | 90980-04041 |
| 86120 | Radio assembly | 86120-32020 · 86120-32021 · 86120-32030 · 86120-32040 · 86120-32140 · 86120-32150 |
| 86120B | Radio tuning knob No. 1 | 86128-22090 · 86128-22130 · 86128-32010 |
| 86120F | Radio auxiliary volume knob | 86128-14090 · 86128-22010 · 86128-22370 |
| 86211 | No. 1 radio bracket | 86211-32020 |
| 86212 | No. 2 radio bracket | 86212-32020 |
| 86280 | Stereo parts amplifier assembly | 86280-39015 |
| 86280B | Amplifier graphic equalizer knob | 86128-14110 |
