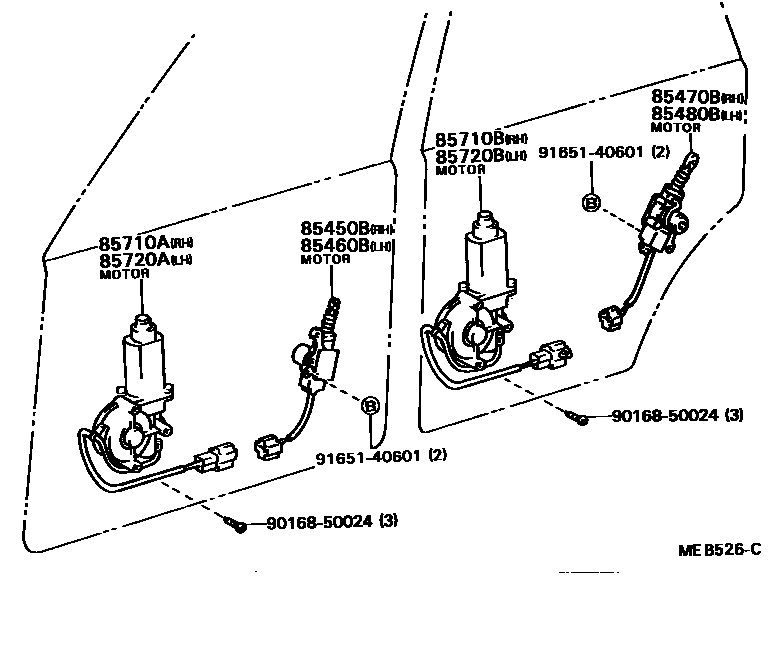

Toyota CAMRY 车门电机和车门电磁阀 — Figure 8511
Toyota CAMRY EPC diagram 8511, 车门电机和车门电磁阀, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85450B | Right front door control motor assembly | 85450-32020 · 85450-32040 |
| 85460B | Left front door control motor assembly | 85460-32020 · 85460-32040 |
| 85470B | Right rear door control motor assembly | 85470-32030 |
| 85480B | Left rear door control motor assembly | 85480-32030 |
| 85710A | Right front electric window lift motor assembly | 85710-32010 |
| 85710B | Right rear electric window lift motor assembly | 85710-32020 · 85710-32030 |
| 85720A | Left front electric window lift motor assembly | 85720-32010 |
| 85720B | Left rear electric window lift motor assembly | 85720-32020 · 85720-32030 |
