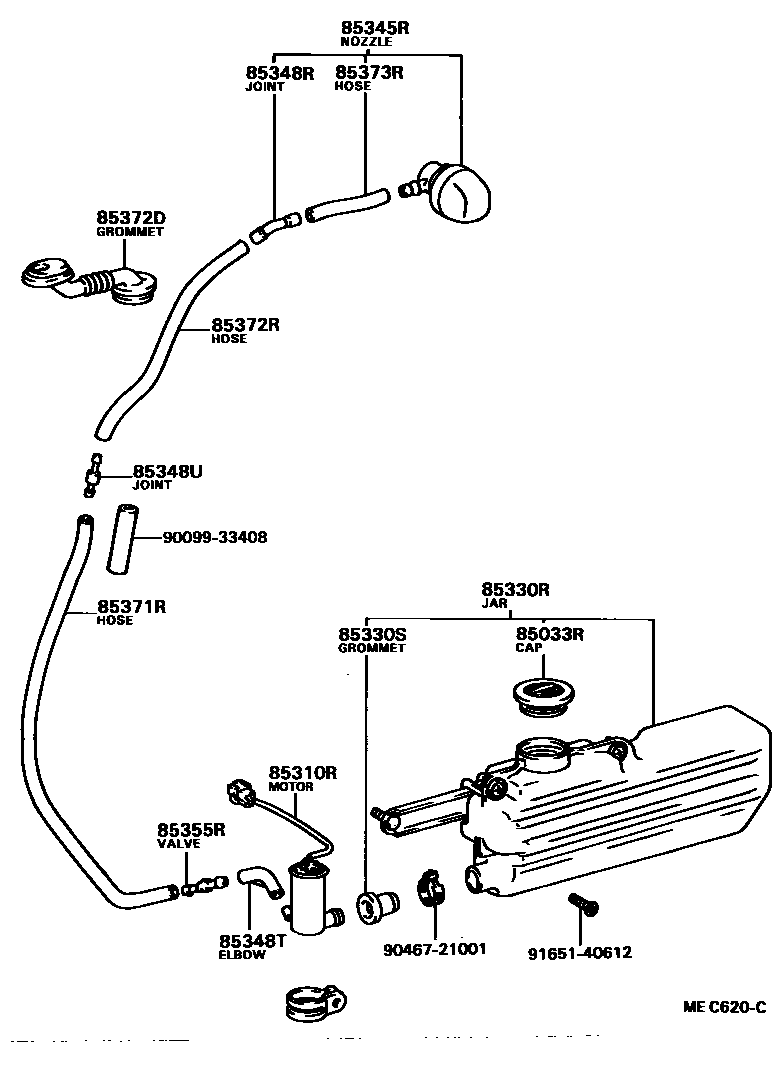

Toyota CAMRY 后清洗器 — Figure 8504
Toyota CAMRY EPC diagram 8504, 后清洗器, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85033R | Rear washer cover assembly | 85332-32010 |
| 85310R | Rear washer motor assembly | 85310-30060 |
| 85330R | Rear cleaning fluid tank assembly | 85330-32020 |
| 85330S | Rear washer fluid tank bushing | 90099-32103 |
| 85345R | Rear washer nozzle | 85035-32020 |
| 85348R | No. 1 rear washer hose connector | 85355-32020 |
| 85348T | No. 2 rear washer hose connector | 85355-20070 |
| 85348U | No. 3 rear washer hose connector | 85355-87201 |
| 85355R | Rear washer hose valve | 85031-14080 |
| 85371R | Rear washer hose (from motor to connector) | 90446-07001 |
| 85372D | Rear washer hose seal | 85372-14020 |
| 85372R | Rear washer hose (from fitting to fitting or nozzle) | 90099-33299 |
| 85373R | Rear washer hose (from connector to nozzle) | 90099-33299 |
