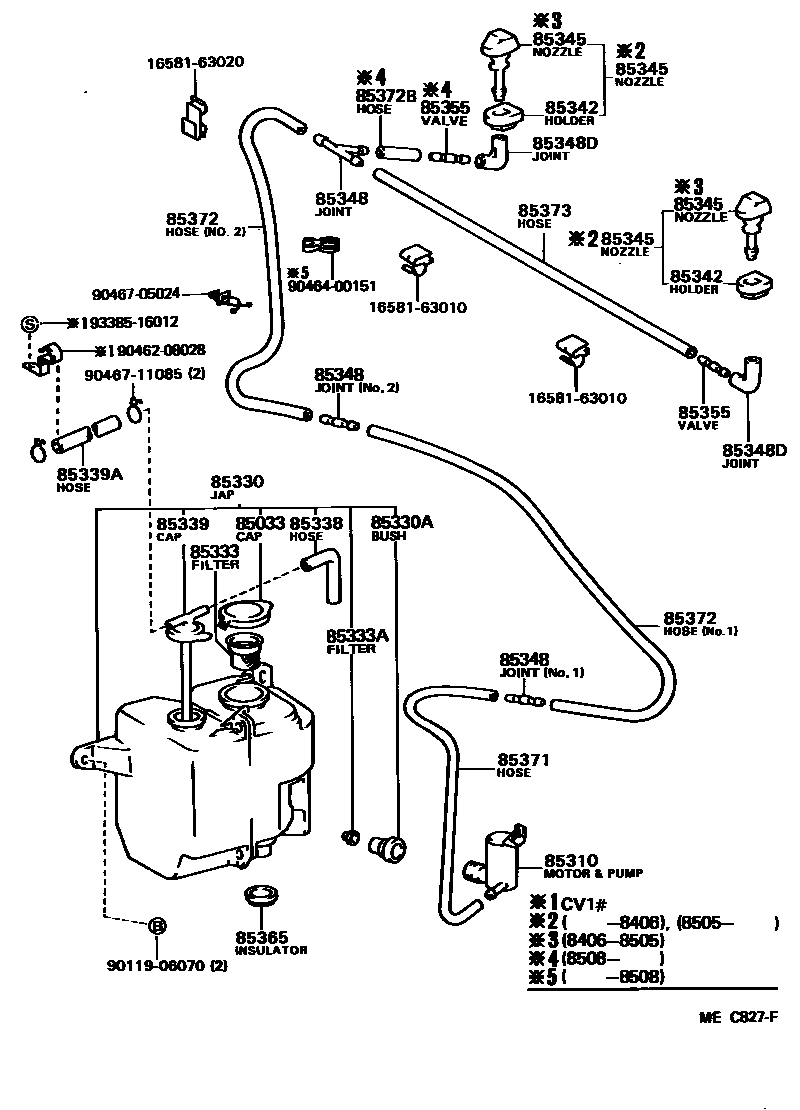

Toyota CAMRY 挡风玻璃清洗器 — Figure 8503
Toyota CAMRY EPC diagram 8503, 挡风玻璃清洗器, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85033 | Windshield washer cover assembly | 85332-12320 · 85332-20060 |
| 85310 | Windshield washer motor and pump assembly | 85310-10140 · 85310-12130 · 85310-20130 |
| 85330 | Windshield washer fluid tank assembly | 85331-32050 · 85331-32051 |
| 85330A | Windshield washer fluid tank bushing | 90099-32089 · 90099-32103 |
| 85333 | Windshield washer fluid tank filter | 85333-20010 |
| 85333A | Windshield washer fluid tank filter No. 2 | 85333-20020 |
| 85338 | Breather hose | 85338-12010 · 85338-14010 |
| 85339 | Liquid storage tank cover sub-assembly | 85339-32020 |
| 85339A | Hoses (for radiator reservoir) | 90099-33377 |
| 85342 | Washer nozzle retainer | 85342-14010 |
| 85345 | windshield washer nozzle | 85035-19025 · 85035-32040 · 85035-32041 |
| 85348 | Windshield washer hose connector No. 1 | 85348-12250 · 85349-14010 · 85349-20010 · 85355-14010 · 85355-87201 |
| 85348D | No. 1 windshield washer elbow joint | 85355-14481 · 85355-20070 |
| 85355 | Windshield washer hose valve | 85031-12250 · 85031-14080 |
| 85365 | Windshield washer fluid tank vibration isolation pad | 85312-32010 |
| 85371 | Windshield washer hose (from motor to connector) | 90099-33332 · 90446-06013 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 90099-33063 · 90099-33073 · 90099-33080 · 90099-33299 · 90099-33332 · 90446-07005 |
| 85372B | Windshield washer hose No. 2 (from connector to connector) | 90099-33299 |
| 85373 | Windshield washer hose (from connector to nozzle) | 90099-33062 · 90099-33299 · 90446-06013 |
