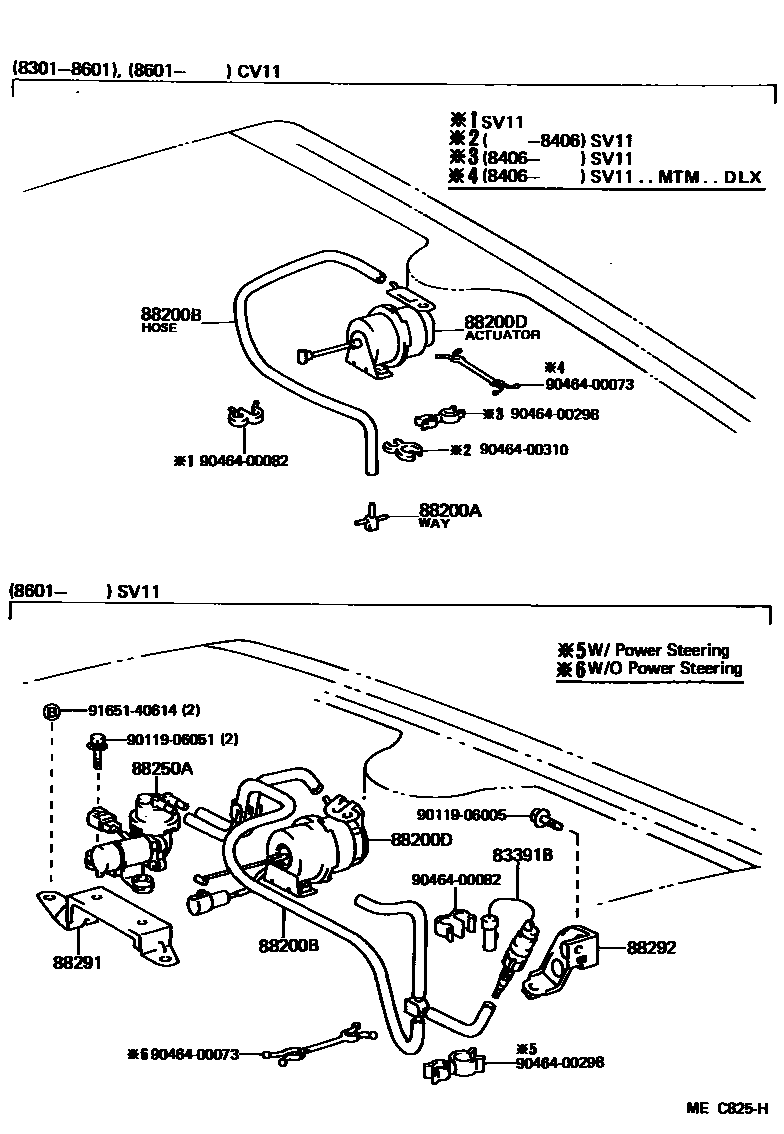

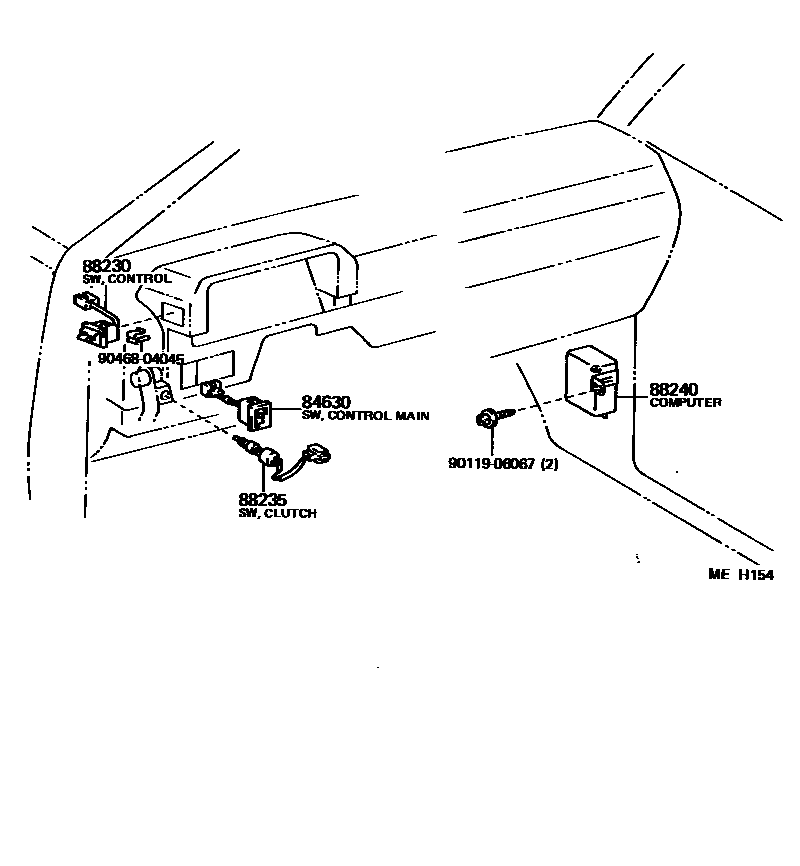

Toyota CAMRY 巡航控制(自动行驶) — Figure 8408
Toyota CAMRY EPC diagram 8408, 巡航控制(自动行驶), with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83391B | Automatic driving vacuum switch | 83391-22040 |
| 84630 | Cruise control main switch assembly | 84630-32020 · 84630-32040 |
| 88200A | cruise control vacuum fitting or tube | 90413-04005 |
| 88200B | cruise control vacuum hose | 88283-32010 |
| 88200D | Cruise control actuator assembly | 88200-32010 · 88200-32020 · 88200-32030 · 88200-32040 · 88200-32050 |
| 88235 | Cruise control (automatic driving) release switch assembly | 88280-35010 |
| 88240 | Cruise control ECU assembly | 88240-32020 · 88240-32021 · 88240-32050 · 88240-32051 · 88240-32052 · 88240-32070 · 88240-32071 · 88240-32080 |
| 88250A | cruise control pump assembly | 88251-32050 |
| 88291 | No. 1 cruise control (automatic driving) bracket | 88291-32010 |
| 88292 | No. 2 cruise control (automatic driving) bracket | 88292-32010 |
