Toyota CAMRY 开关和继电器和ECU — Figure 8401

Toyota CAMRY EPC diagram 8401, 开关和继电器和ECU, with 8 images and 98 PNC and OE references.

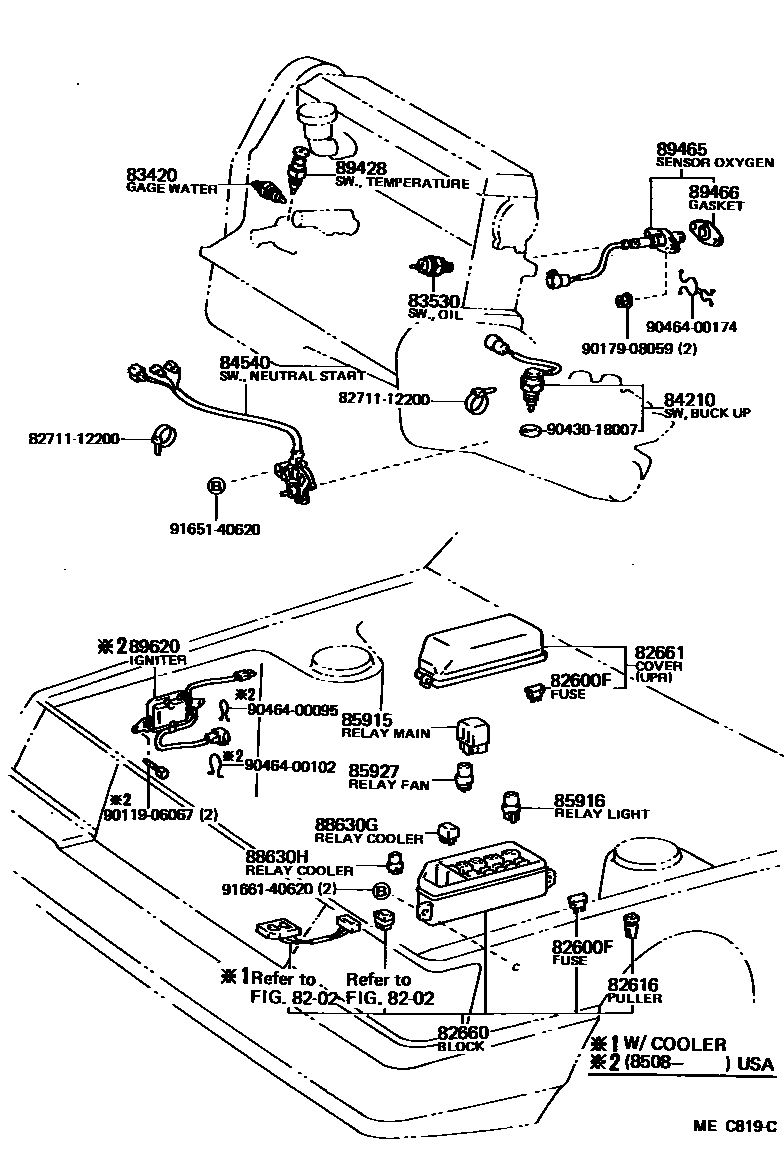

Toyota CAMRY 开关和继电器和ECU EPC diagram — MEC819C
开关和继电器和ECU — MEC819C (198301 – 999999)

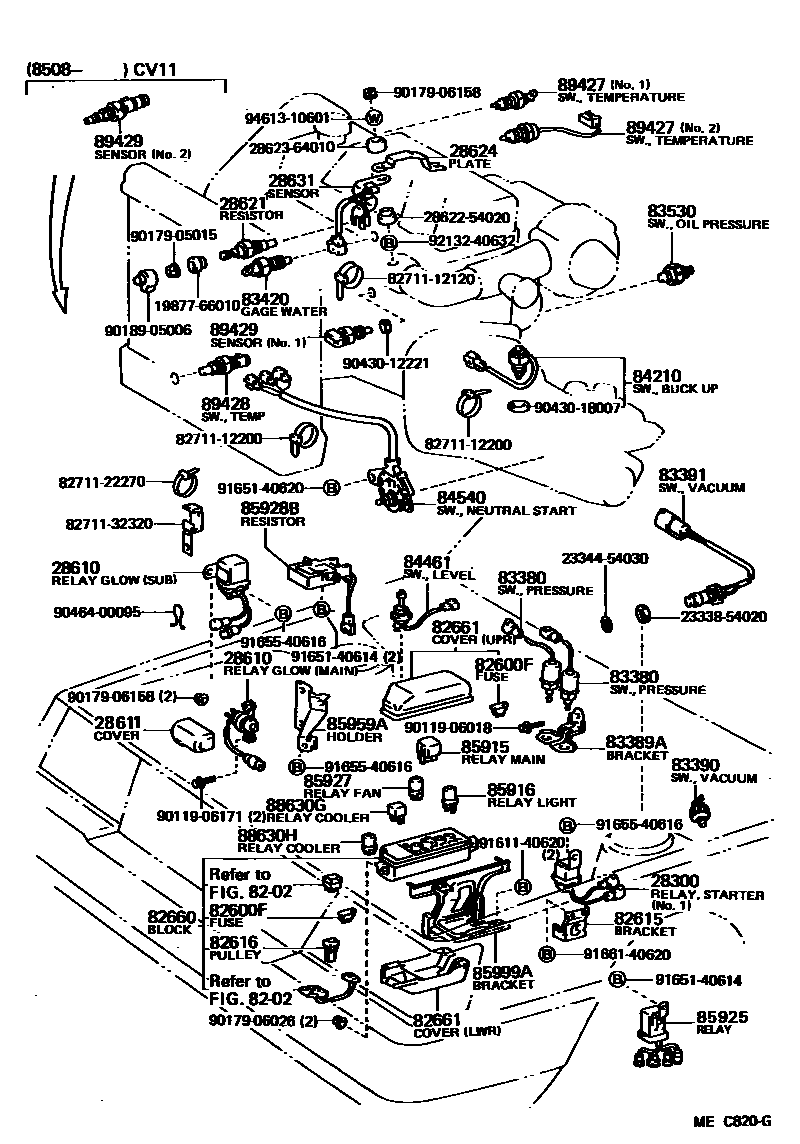

Toyota CAMRY 开关和继电器和ECU EPC diagram — MEC820G
开关和继电器和ECU — MEC820G (198308 – 999999)

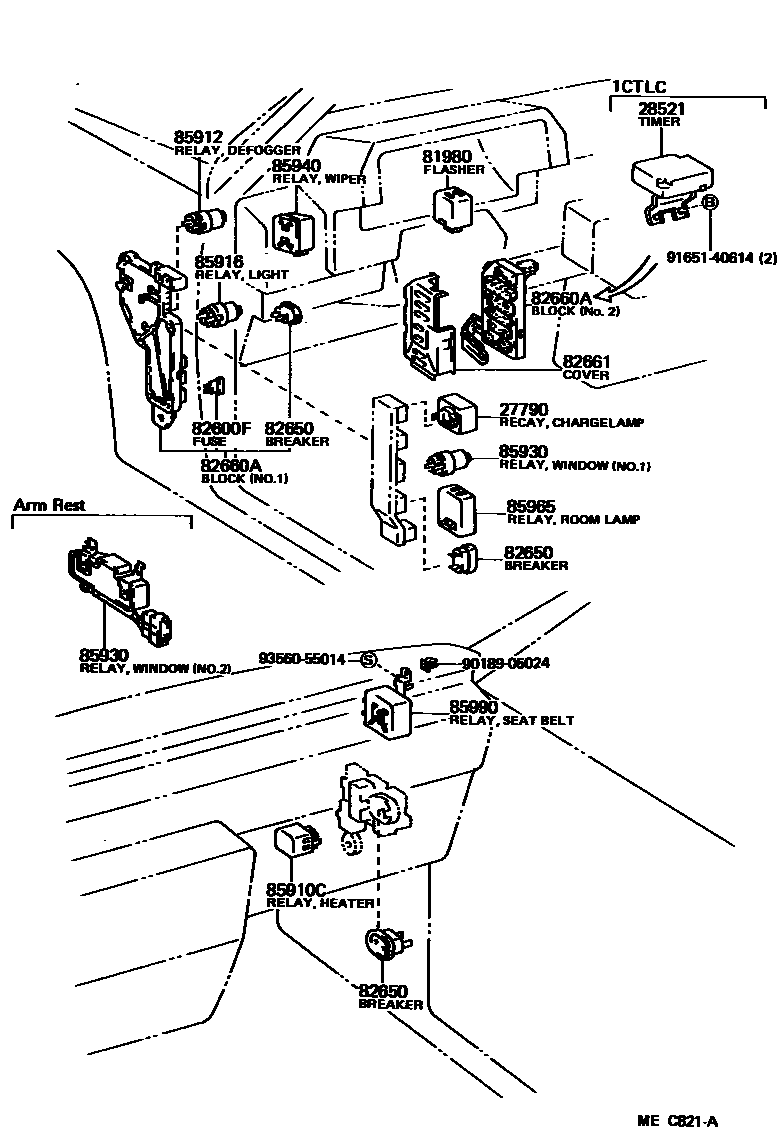

Toyota CAMRY 开关和继电器和ECU EPC diagram — MEC821A
开关和继电器和ECU — MEC821A (198301 – 198408)

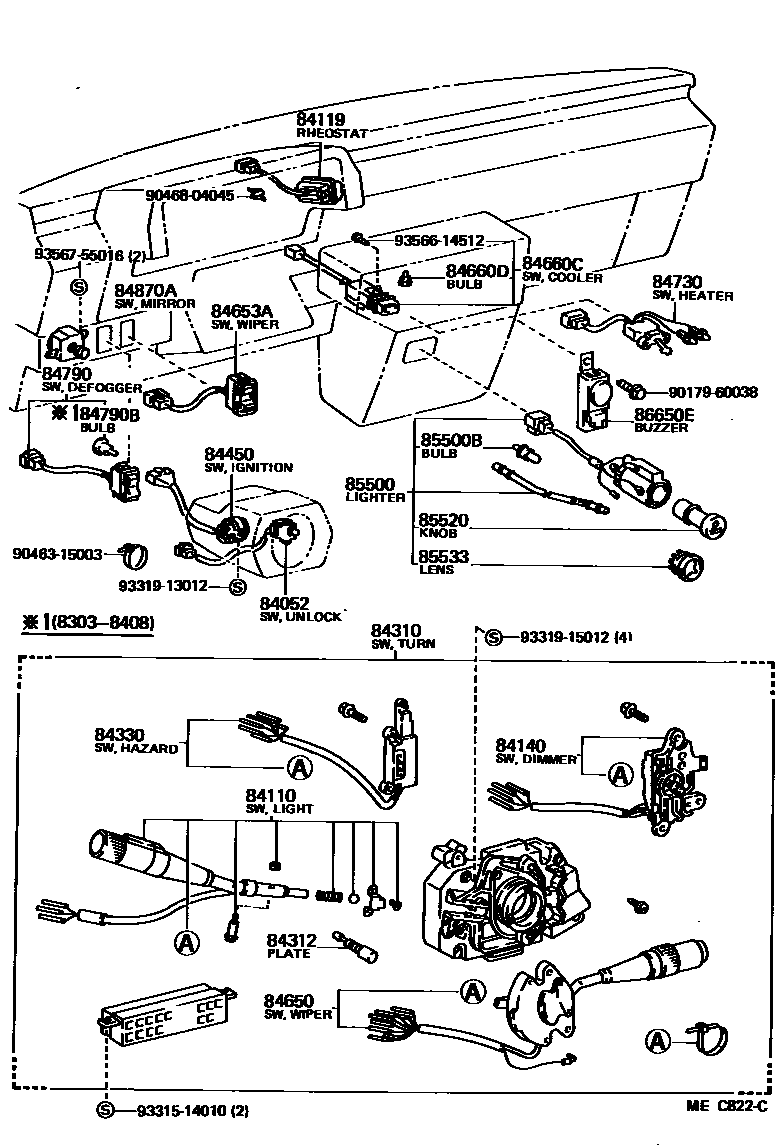

Toyota CAMRY 开关和继电器和ECU EPC diagram — MEC822C
开关和继电器和ECU — MEC822C (198301 – 198408)

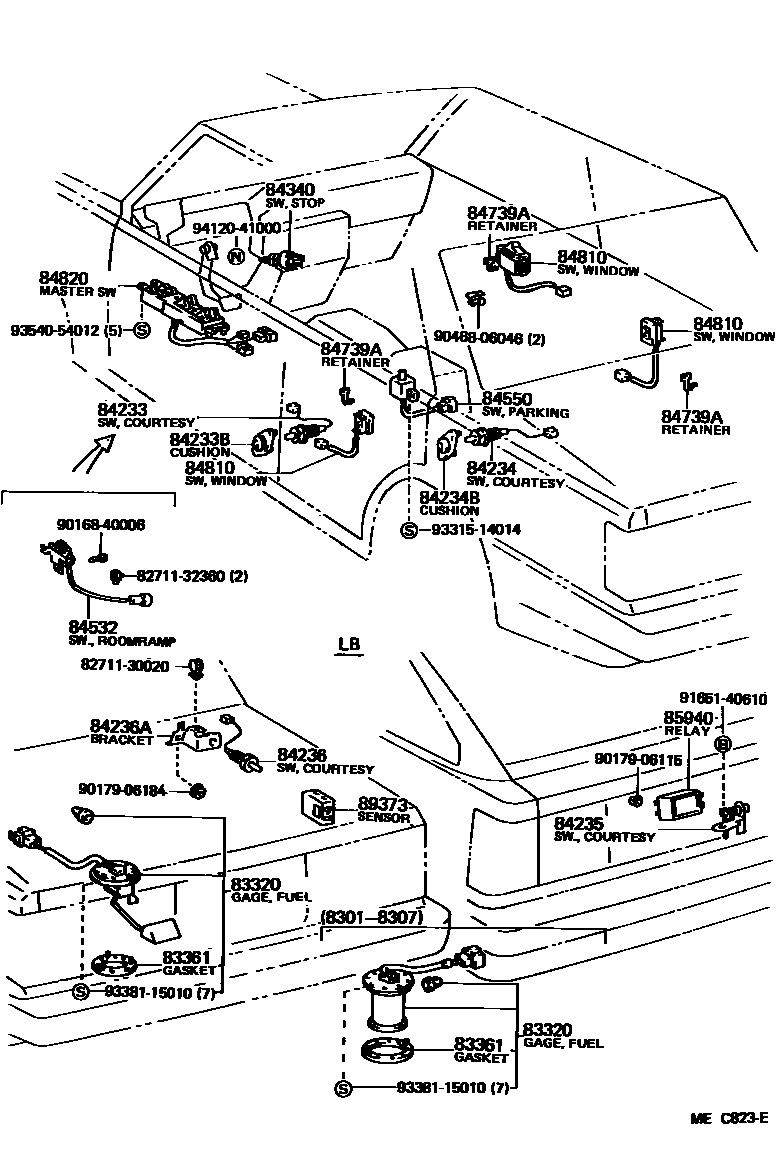

Toyota CAMRY 开关和继电器和ECU EPC diagram — MEC823E
开关和继电器和ECU — MEC823E (198301 – 198408)

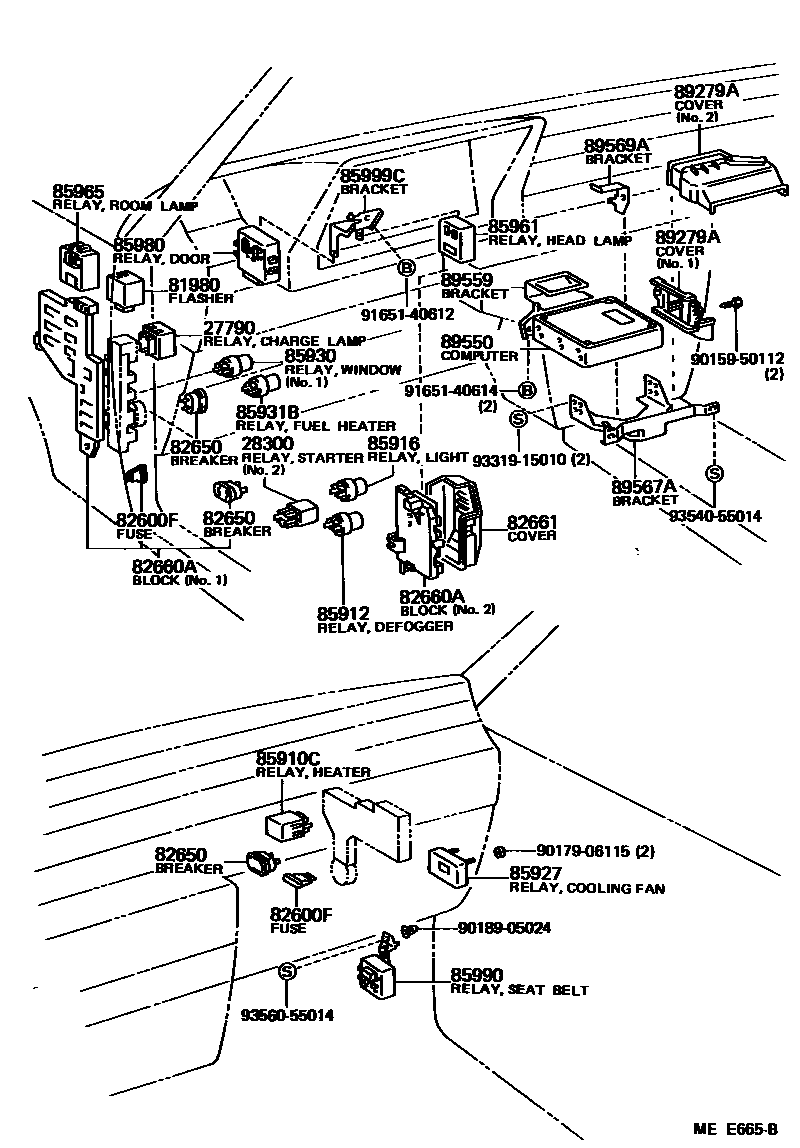

Toyota CAMRY 开关和继电器和ECU EPC diagram — MEE665B
开关和继电器和ECU — MEE665B (198408 – 999999)

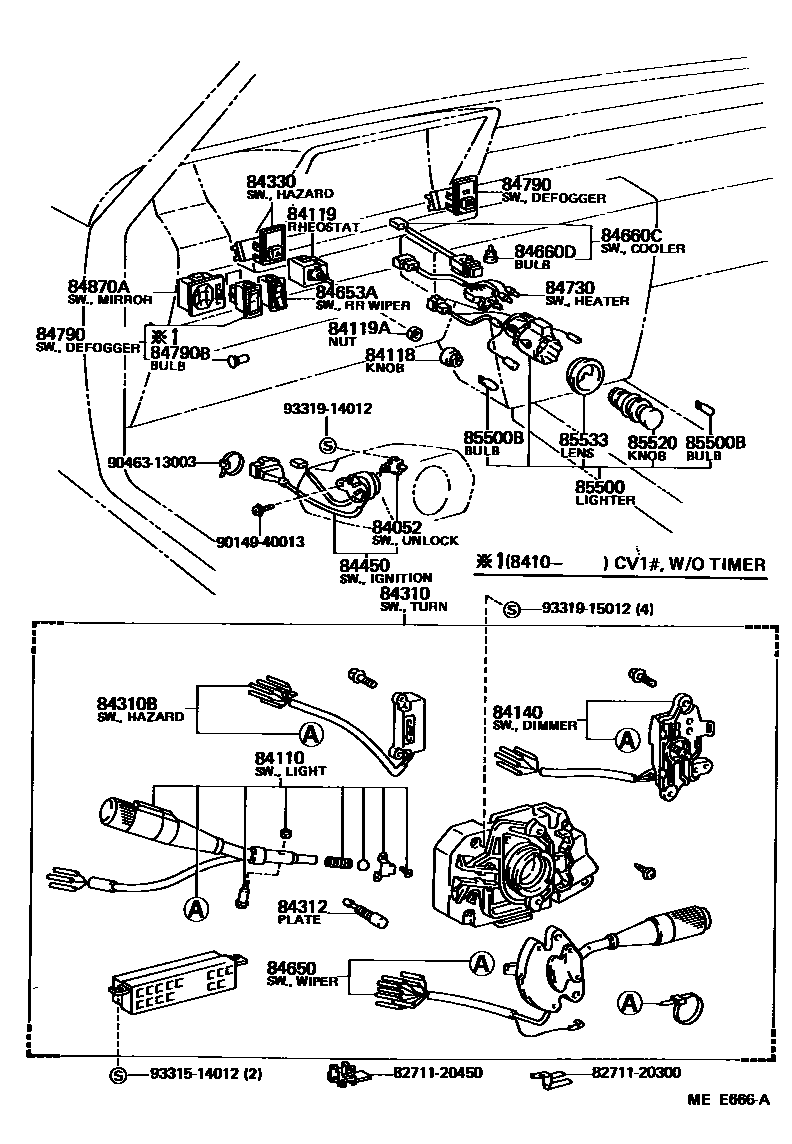

Toyota CAMRY 开关和继电器和ECU EPC diagram — MEE666A
开关和继电器和ECU — MEE666A (198408 – 999999)

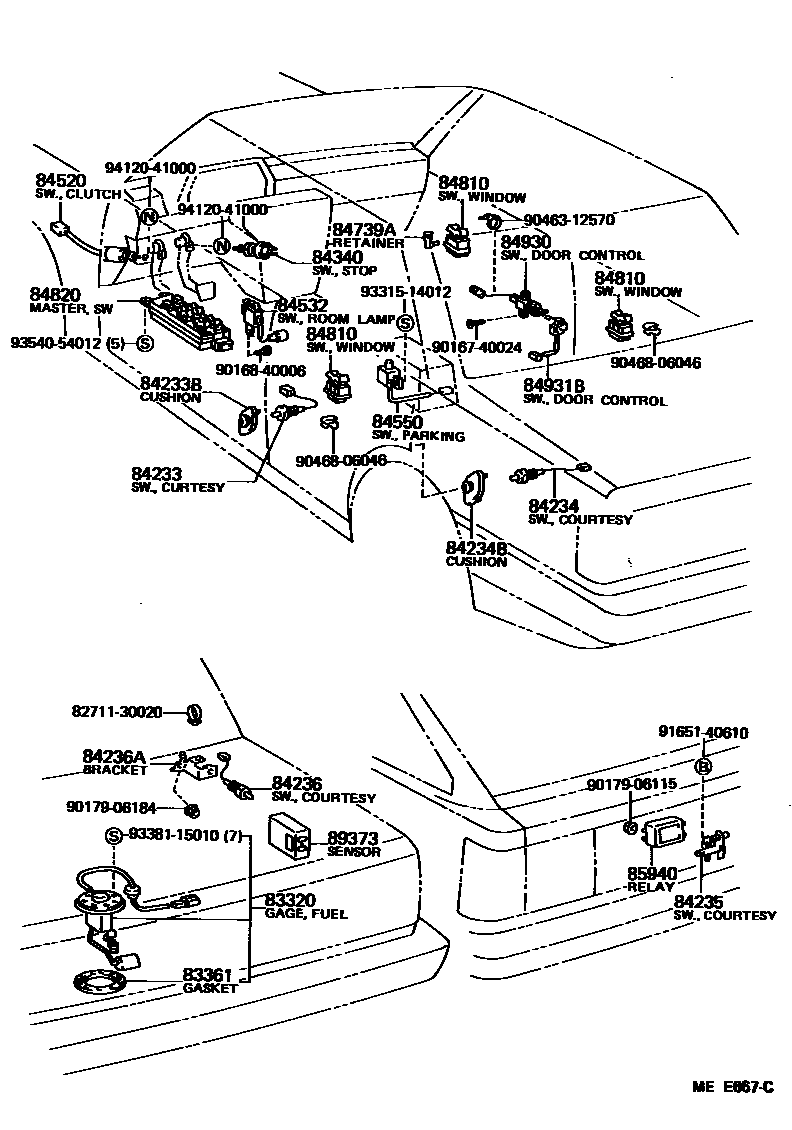

Toyota CAMRY 开关和继电器和ECU EPC diagram — MEE667C
开关和继电器和ECU — MEE667C (198408 – 999999)

PNC and OE references

PNCPart nameOE numbers
27790Charging indicator light relay assembly27790-13010 · 27790-35020
28300Starter relay assembly28300-16010 · 28300-54070 · 28300-64040
28521Preheat timer28521-64150
28610Glow plug relay assembly28610-64010 · 28610-64020
28611Glow plug relay cover28611-64010
28621glow plug resistor28621-64011 · 28621-64020
28624Current sensor chip28624-64020
28631glow plug current sensor28631-64040
81980Turn signal flasher relay assembly81980-16010 · 81980-22070
82600FSpare fuse90982-09002 · 90982-09003 · 90982-09004 · 90982-09005
82615fuse holder82615-32010
82616fuse puller82616-12010
82650No. 1 circuit breaker assembly82650-20011 · 82650-32020 · 82650-35010
82660Engine room relay box assembly82660-32040 · 82660-32160 · 82660-32230
82660AFront wall side relay box assembly82660-32020 · 82660-32070 · 82660-32071 · 82660-32120
82661No. 1 relay box cover82661-32010 · 82661-32020 · 82661-32040 · 82661-32070 · 82661-32100
83320Fuel gauge sensor assembly83320-29885 · 83320-39325 · 83320-39326 · 83320-39327 · 83320-39535 · 83320-39536 · 83320-39537 · 83320-39625
83361fuel gauge sensor gasket83361-32010
83380Pressure switch assembly83381-30010 · 83381-30021 · 83381-32020
83389APressure switch bracket83389-32010
83390Vacuum warning switch assembly83390-30020
83391Vacuum switch83391-32020
83420Water temperature sensor assembly83420-20020
83530Oil pressure switch assembly (for engine)83530-10020 · 83530-12040 · 83530-14020 · 83530-14030 · 83530-30043
84052Unlock warning switch assembly84052-10010 · 84052-10020
84110No. 1 light control switch assembly84112-29385 · 84112-39205 · 84112-39215
84118Light control rheostat button84118-20011
84119Light control rheostat84119-32060 · 84119-32070
84119ARheostat control retaining bolt or nut90170-09167
84140Headlight dimmer switch assembly84140-29225 · 84140-39095 · 84140-39105
84210Reversing light switch assembly84210-60021
84233Door control light switch assembly (for front door)84230-12120 · 84231-20080
84233BDoor light switch cushion (for front doors)84234-24010
84234Door control light switch assembly (for rear door)84230-12120 · 84231-20080
84234BDoor light switch cushion (for rear doors)84234-24010
84235Door control light switch assembly (for back door)84231-32010
84236Door control light switch assembly (for trunk)84230-32010
84236ADoor control light switch bracket (for luggage compartment)84233-32010
84310Turn signal switch assembly84310-32070 · 84310-32090 · 84310-32150 · 84310-32160 · 84310-32170 · 84310-32180
84310Bturn signal switch84332-39225
84312Speaker contact piece84312-32010 · 84312-32020
84330Hazard warning signal switch assembly84332-39175 · 84332-39185
84340brake light switch assembly84340-20030 · 84340-22100 · 84340-22110 · 84340-30030 · 84340-32010
84450Ignition or starter switch assembly84450-27040 · 84450-32010
84461Liquid level warning switch84461-12050
84520Clutch start switch assembly84520-12010
84532Interior light fixture switch84532-32020
84540Neutral start switch assembly84540-32050
84550Parking brake switch assembly84550-16010 · 84550-24010
84650Windshield wiper switch assembly84652-39255 · 84652-39275 · 84652-39375 · 84652-39385 · 84652-39395 · 84652-39405
84653ARear wiper switch84653-14020 · 84653-32010 · 84653-32020
84660CCooler switch84660-32020
84660DLight bulb (for cooler switch)88607-32010
84730Heater blower switch assembly84732-32010 · 84732-32030
84739Aswitch fixture84739-30020
84790Rear window defogger switch assembly84790-20130 · 84790-32010 · 84790-32020 · 84790-32040 · 84790-32070
84790BBulb (for rear window defogger switch)84999-10110 · 84999-10130
84810Electric window lift switch assembly84810-32020 · 84810-32040 · 84810-32050
84820Electric window lift main switch assembly84820-32040 · 84820-32041 · 84820-32042 · 84820-32070
84870AExterior rearview mirror switch assembly84870-17010 · 84870-32020
84930Door control switch assembly84931-32010
84931Bdoor control switch84931-32020
85500Cigarette lighter assembly85500-32020 · 85500-32040
85500BCigarette lighter bulb90981-11014
85520Cigarette lighter button and cigarette lighter core assembly85520-14030
85533Cigarette lighter indicator lamp shade85533-20010
85910CRelay assembly (for heater blower motor)85913-30020
85912defogger relay90987-02004
85915main relay85913-30020
85916Light control relay90987-01003
85925Radiator fan relay85925-32020
85927cooling fan relay85925-32010 · 85927-32020 · 90987-03001
85928BCooling fan resistor85928-32010
85930Electric window relay assembly85930-32020 · 90987-02004
85931BFuel heater relay90987-02004
85940Windshield wiper relay assembly85940-32030 · 85940-32040 · 85940-32050
85959ARelay mounting parts85959-32030
85961Headlight fixture relay85961-24010
85965Car interior light control relay85965-22021 · 85965-32010
85980Door control relay assembly85980-32040 · 85980-32041
85990Seat belt warning relay or ECU assembly85991-32010
85999ANo. 2 relay bracket85999-32050 · 85999-32060
85999CNo. 3 relay bracket85999-32080
86650EBuzzer assembly86650-32010
88630GCooler relay assembly88630-32010
88630HCooler relay assembly90987-02004
89279AECU cover89279-32010 · 89279-32050
89373Malfunction indicator light sensor89373-32030 · 89373-32040 · 89373-32080 · 89373-32090 · 89373-32120 · 89373-32130
89427Temperature detection switch89427-12051 · 89427-32020 · 89427-32021 · 89427-32030
89428No. 2 temperature detection switch89428-15011 · 89428-15030 · 89428-32010
89429oil temperature sensor89422-30020 · 89429-32010
89465oxygen sensor89465-39105
89466Oxygen sensor pad89466-32010
89550Emission control ECU assembly89551-32010 · 89551-32020
89559Emission control ECU bracket89559-32010
89567ANo. 1 exhaust ECU bracket89567-32030
89569ANo. 3 exhaust ECU bracket89569-32010
89620Ignition assembly89620-32050
