Toyota CAMRY indicator light — Figure 8302

Toyota CAMRY EPC diagram 8302, indicator light, with 1 images and 7 PNC and OE references.

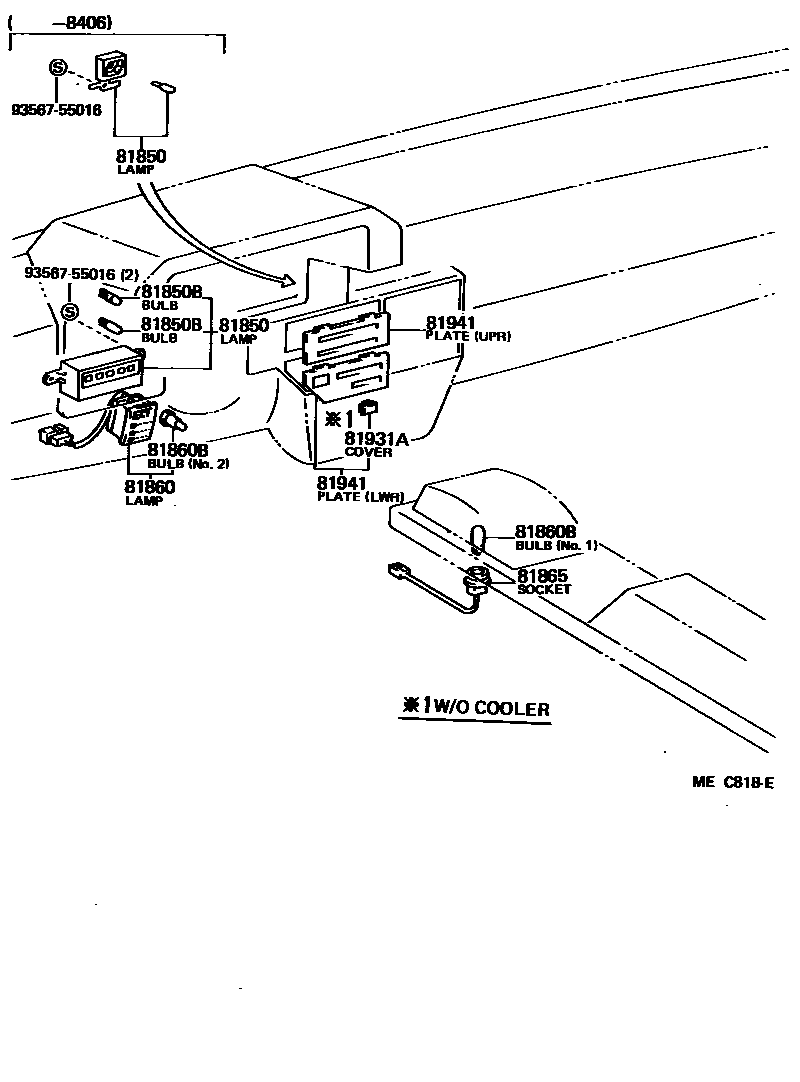

Toyota CAMRY indicator light EPC diagram — MEC818E
indicator light — MEC818E (198301 – 999999)

PNC and OE references

PNCPart nameOE numbers
81850Indicator light assembly81850-32010 · 81850-32050 · 81850-32051 · 81850-32060 · 81850-32061
81850Bpilot light bulb84999-20020 · 84999-20040 · 84999-20050
81860Transmission indicator light assembly81860-32030 · 81860-32031
81860BTransmission indicator light bulb84999-10110 · 99132-12034
81865Transmission indicator light holder and wiring harness35906-32010 · 35906-32030
81931ACooler switch hole cover55538-32010
81941Heater controller nameplate55519-32050 · 55519-32051 · 55519-32060 · 55519-32061 · 55519-32070 · 55519-32071
