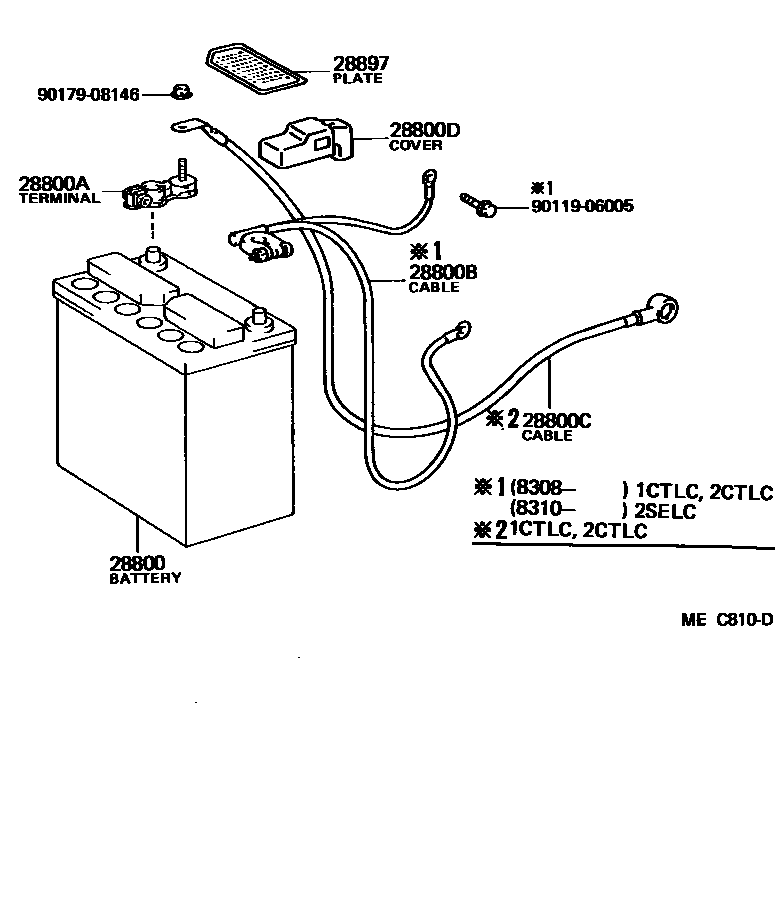

Toyota CAMRY 蓄电池和蓄电池电缆 — Figure 8201
Toyota CAMRY EPC diagram 8201, 蓄电池和蓄电池电缆, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800 | battery | 28800-15050 · 28800-43070 · 28800-43090 · 28800-64070 · 28800-64090 |
| 28800A | battery positive terminal | 90982-05023 |
| 28800B | Cable between battery and ground | 82124-32010 · 90982-02244 |
| 28800C | Cable between battery and starter (for battery to main switch) | 82123-32010 · 82123-32030 |
| 28800D | Connector cover (for battery terminals) | 82821-12190 · 82821-20120 · 82821-24010 · 82821-32010 |
| 28897 | Battery warning nameplate | 28897-35010 · 28897-38010 · 28898-26010 |
