Toyota CAMRY 车内灯 — Figure 8121

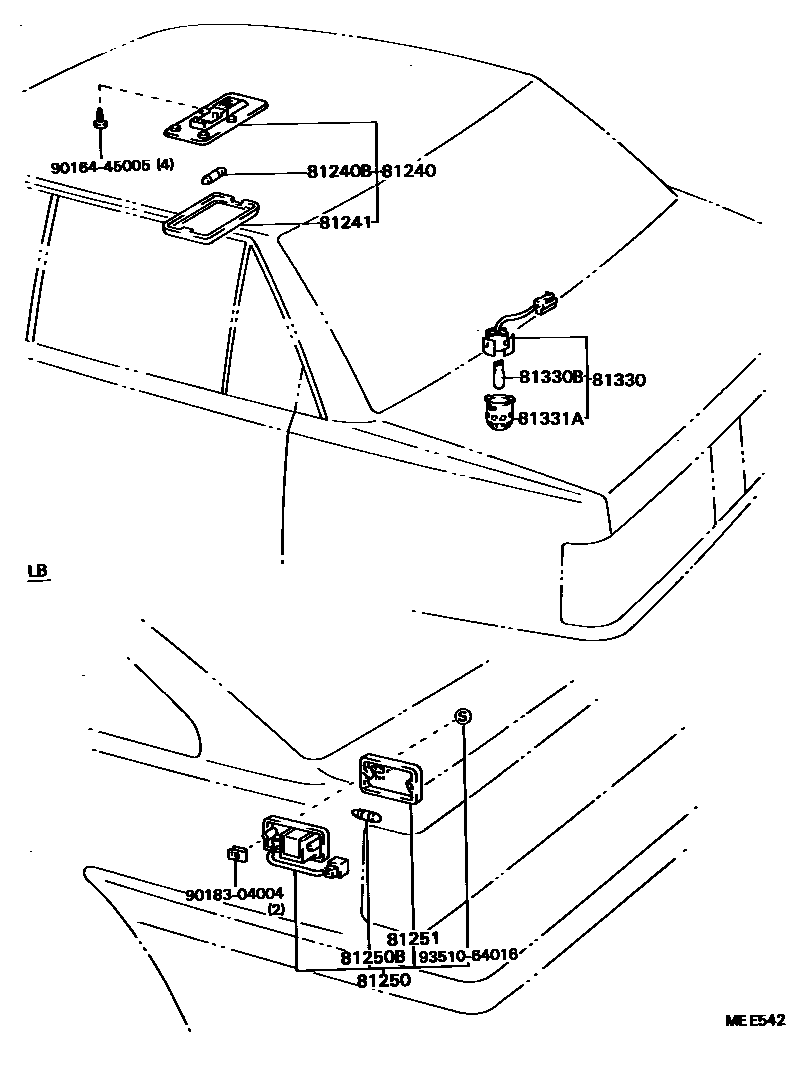

Toyota CAMRY EPC diagram 8121, 车内灯, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81240B | Interior light bulb No. 1 | 99132-12100 |
| 81241 | Interior light cover No. 1 | 81241-16010 · 81241-20060 |
| 81250B | Interior light bulb No. 2 | 99132-13050 |
| 81251 | Interior light cover No. 2 | 81251-14030 |
| 81260C | Light bulb (for reading lamp) | 90981-12005 · 90981-12014 |
| 81330 | No. 1 trunk light assembly | 81330-22030 |
| 81330B | trunk light bulb | 99132-12050 |
| 81331A | Trunk light cover | 81331-22030 |
| 81870D | Lock core lighting assembly | 81870-32010 |
| 81870E | Lock cylinder lighting bulb | 90981-11018 |
