Toyota CAMRY 后牌照灯 — Figure 8113

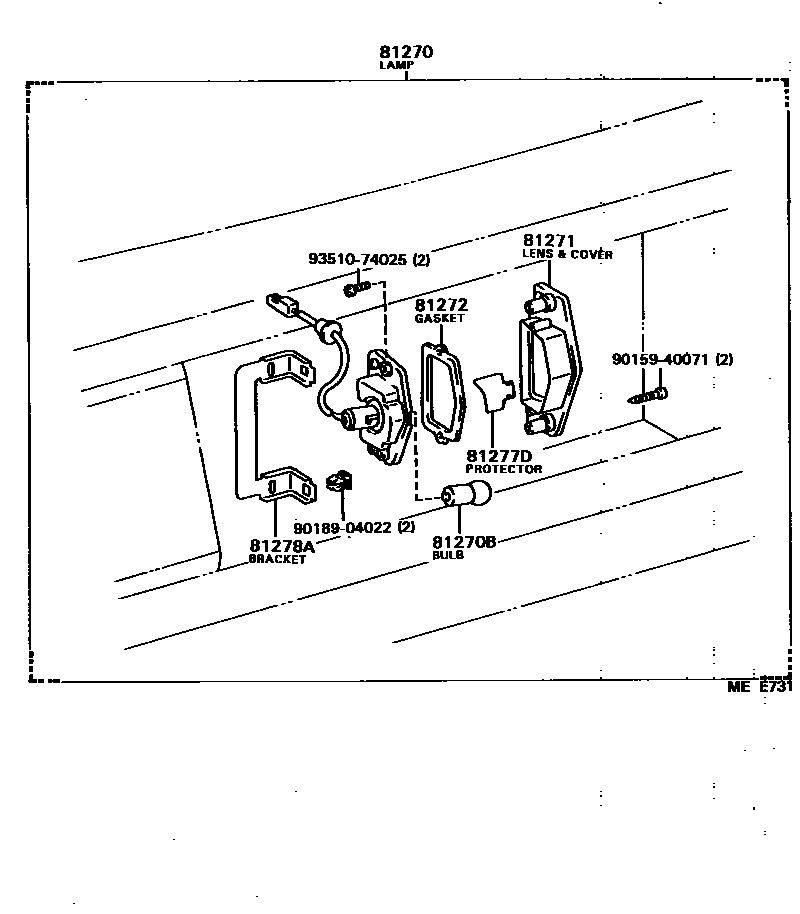

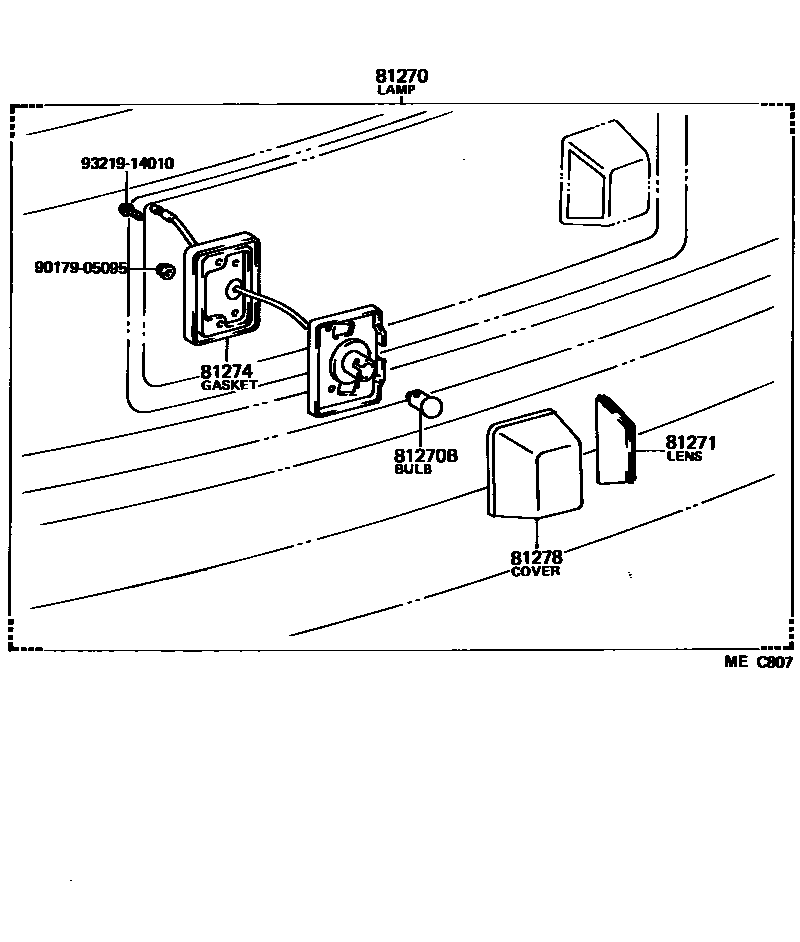

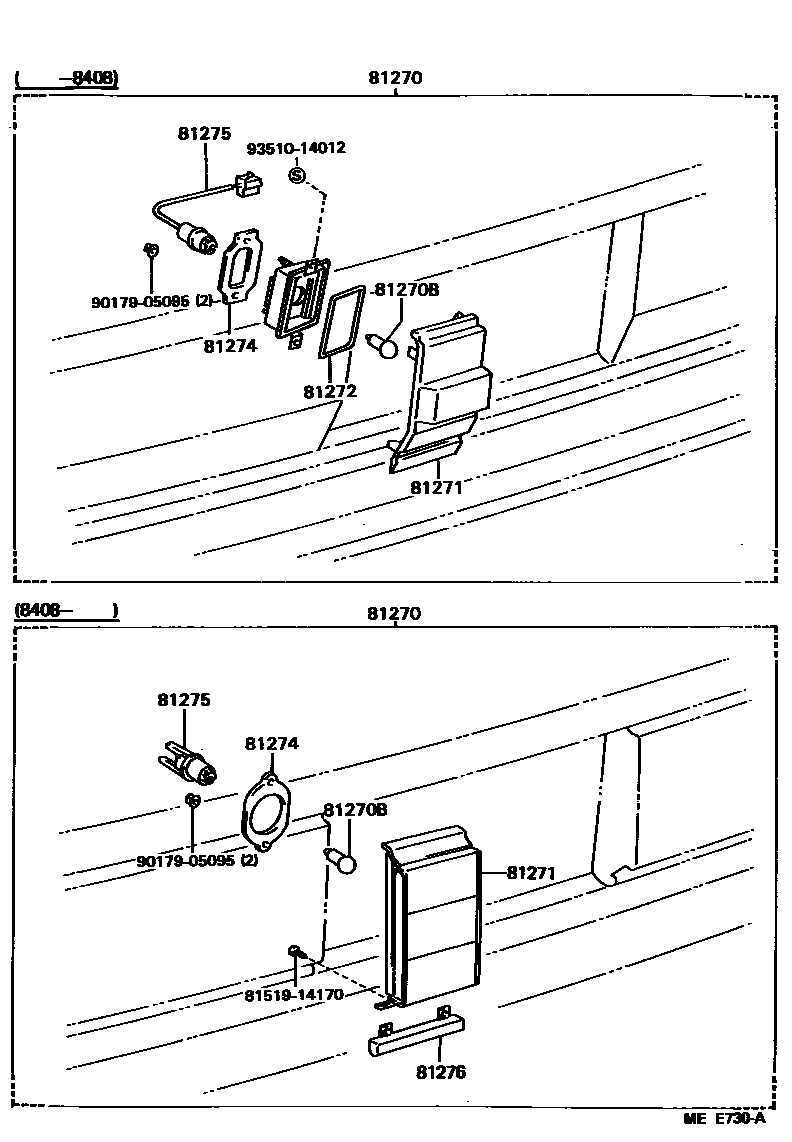

Toyota CAMRY EPC diagram 8113, 后牌照灯, with 3 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81270 | License plate light assembly | 81270-19705 · 81270-39405 · 81270-39406 · 81270-39485 · 81690-19145 · 81690-39065 · 81690-39066 |
| 81270B | Bulb (for license plate light) | 90981-12012 · 99132-11075 |
| 81271 | license plate lamp shade | 81271-14220 · 81271-20110 · 81271-32010 · 81271-32071 · 81691-20030 · 81691-32010 · 81691-32061 |
| 81272 | License plate lamp shade gasket | 81272-20210 · 81272-32010 |
| 81274 | License plate light body gasket | 81274-20110 · 81274-32010 · 81694-20030 |
| 81275 | License plate lamp holder and wiring harness | 81275-12240 · 81275-32070 |
| 81276 | license plate light frame | 81276-32011 |
| 81277D | license plate light reflector | 81277-20210 |
| 81278 | license plate light cover | 81276-12210 · 81696-12060 |
| 81278A | license plate light bracket | 81278-32030 |
