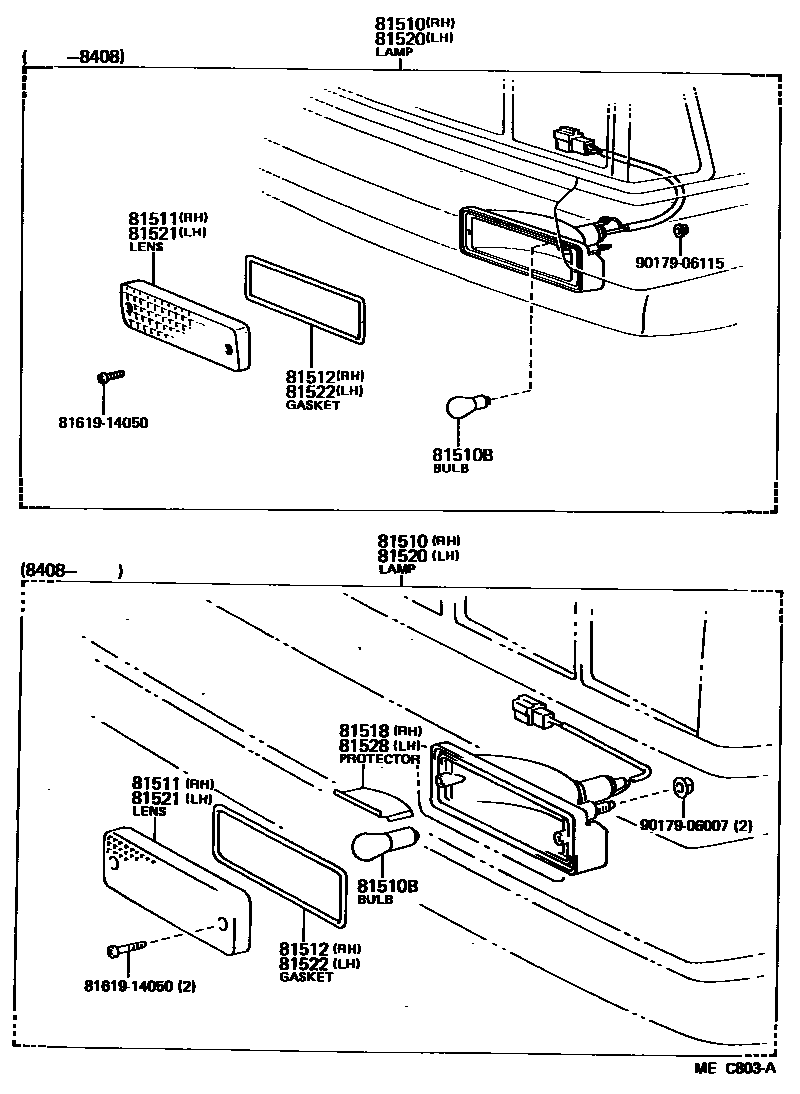

Toyota CAMRY 前转向灯 — Figure 8103
Toyota CAMRY EPC diagram 8103, 前转向灯, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81510 | Right front turn signal lamp assembly | 81510-29657 · 81510-80015 |
| 81510B | Bulb (for front turn signal lamp) | 99132-11270 |
| 81511 | Right front turn signal lamp cover | 81511-22221 |
| 81512 | Right front turn signal lamp housing gasket | 81512-14140 |
| 81518 | Right front turn signal lamp cover | 81517-22220 |
| 81520 | Left front turn signal lamp assembly | 81520-29657 · 81520-80015 |
| 81521 | Left front turn signal lamp cover | 81521-22221 |
| 81522 | Left front turn signal lamp housing gasket | 81512-14140 |
| 81528 | Left front turn signal lamp cover | 81517-22220 |
