Toyota CAMRY Headlamp — Figure 8101

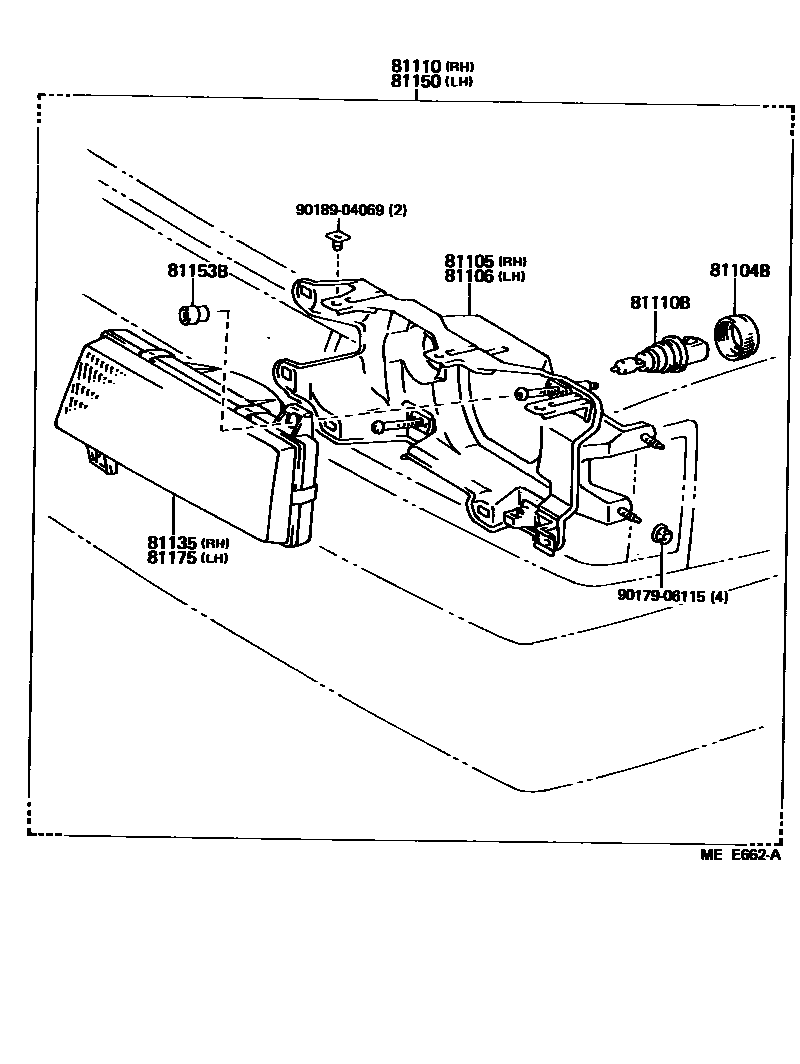

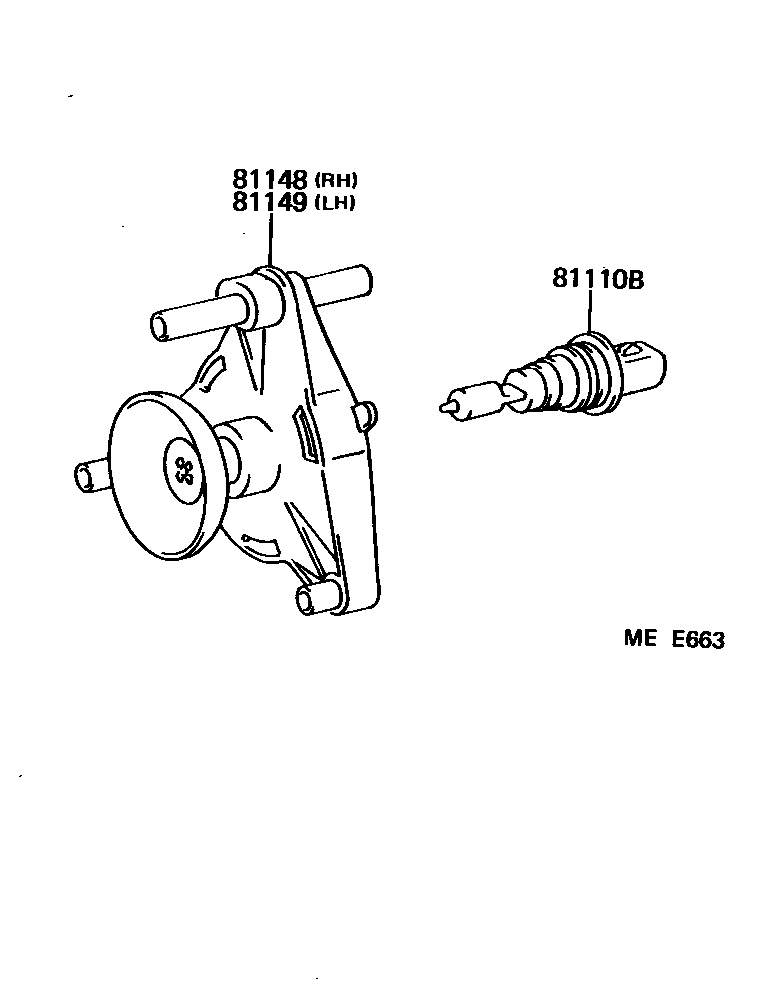

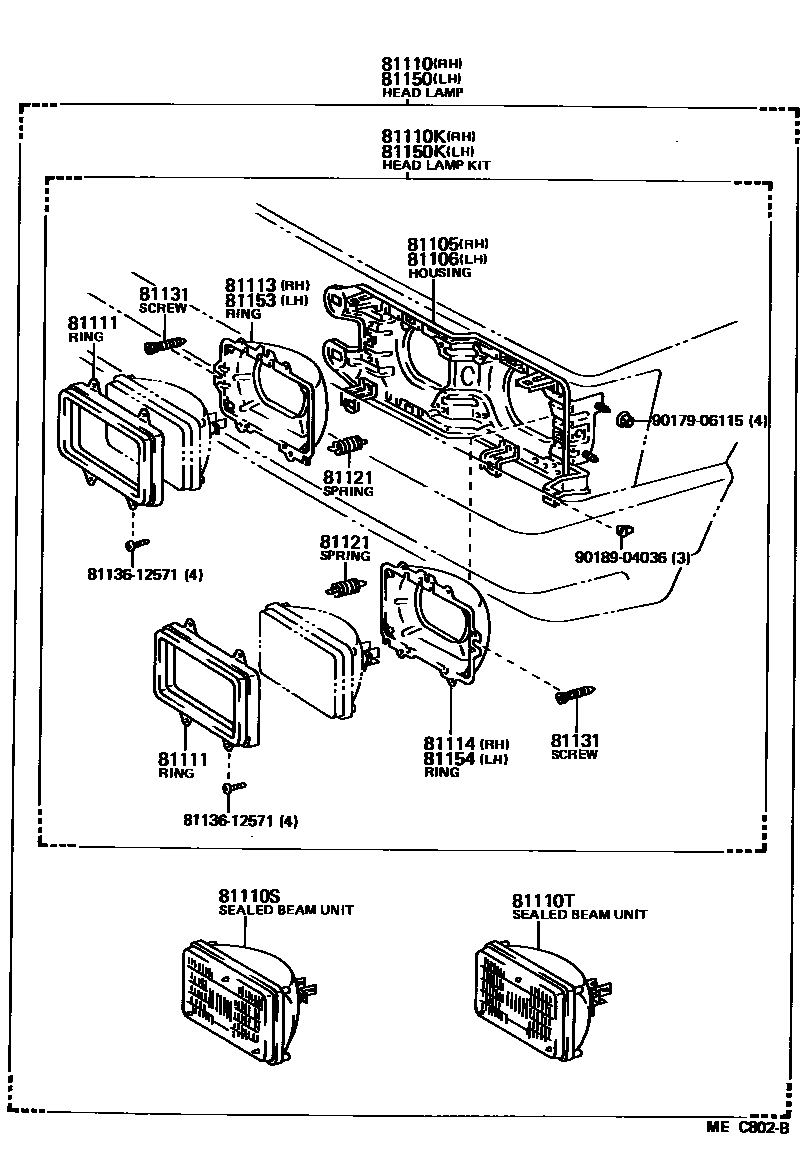

Toyota CAMRY EPC diagram 8101, Headlamp, with 3 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81104B | headlight lock cover | 81104-22520 |
| 81105 | Right headlight housing sub-assembly | 81105-32121 · 81105-32130 |
| 81106 | Left headlight housing sub-assembly | 81106-32121 · 81106-32130 |
| 81110 | Right headlight assembly | 81110-80246 · 81110-80247 · 81110-80400 |
| 81110B | Bulb (for headlight No. 1) | 90981-13032 |
| 81110K | Right headlight assembly (without closed headlight) | 04817-32030 |
| 81110S | No. 1 enclosed lamp assembly | 90981-05028 · 90981-05034 |
| 81110T | No. 2 enclosed lamp assembly | 90981-05029 · 90981-05033 |
| 81111 | Closed headlight retaining ring | 81111-20360 |
| 81113 | Right No. 1 closed lamp seat | 81113-22391 |
| 81114 | Right No. 2 closed lamp seat | 81114-22391 |
| 81121 | headlight spring | 81121-14320 |
| 81131 | Headlight adjustment screw | 81131-20360 |
| 81135 | Right headlight assembly | 81135-32121 |
| 81148 | Right headlight spotlight connector | 81148-32010 |
| 81149 | Left headlight spotlight connector | 81149-32010 |
| 81150 | Left headlight assembly | 81150-80243 · 81150-80244 · 81150-80392 |
| 81150K | Left headlight assembly (without closed headlight) | 04818-32030 |
| 81153 | No. 1 closed lamp seat on the left | 81153-22391 |
| 81153B | headlight support | 81132-32121 |
| 81154 | No. 2 closed lamp seat on the left | 81154-22391 |
| 81175 | Left headlight assembly | 81175-32121 |
