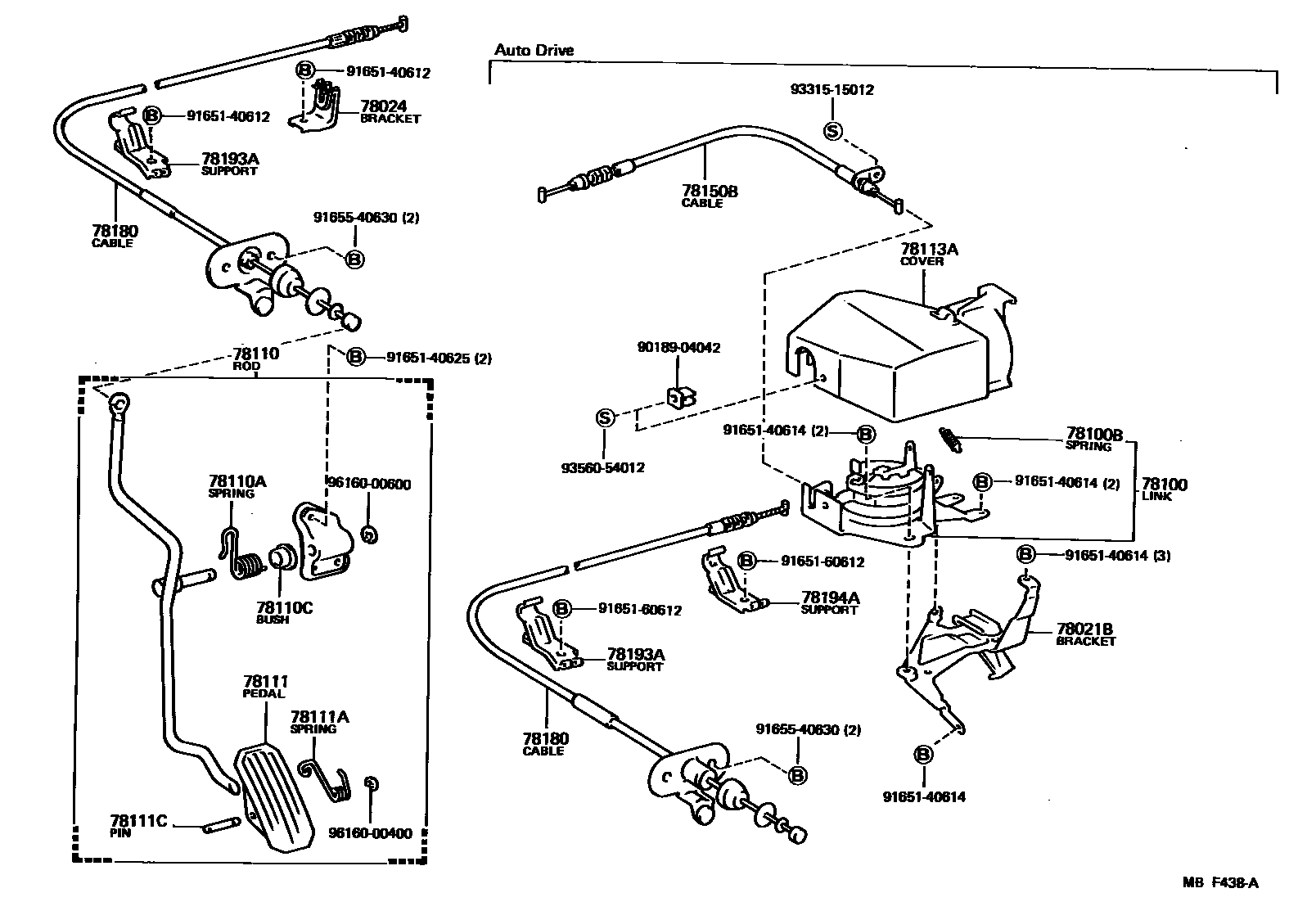

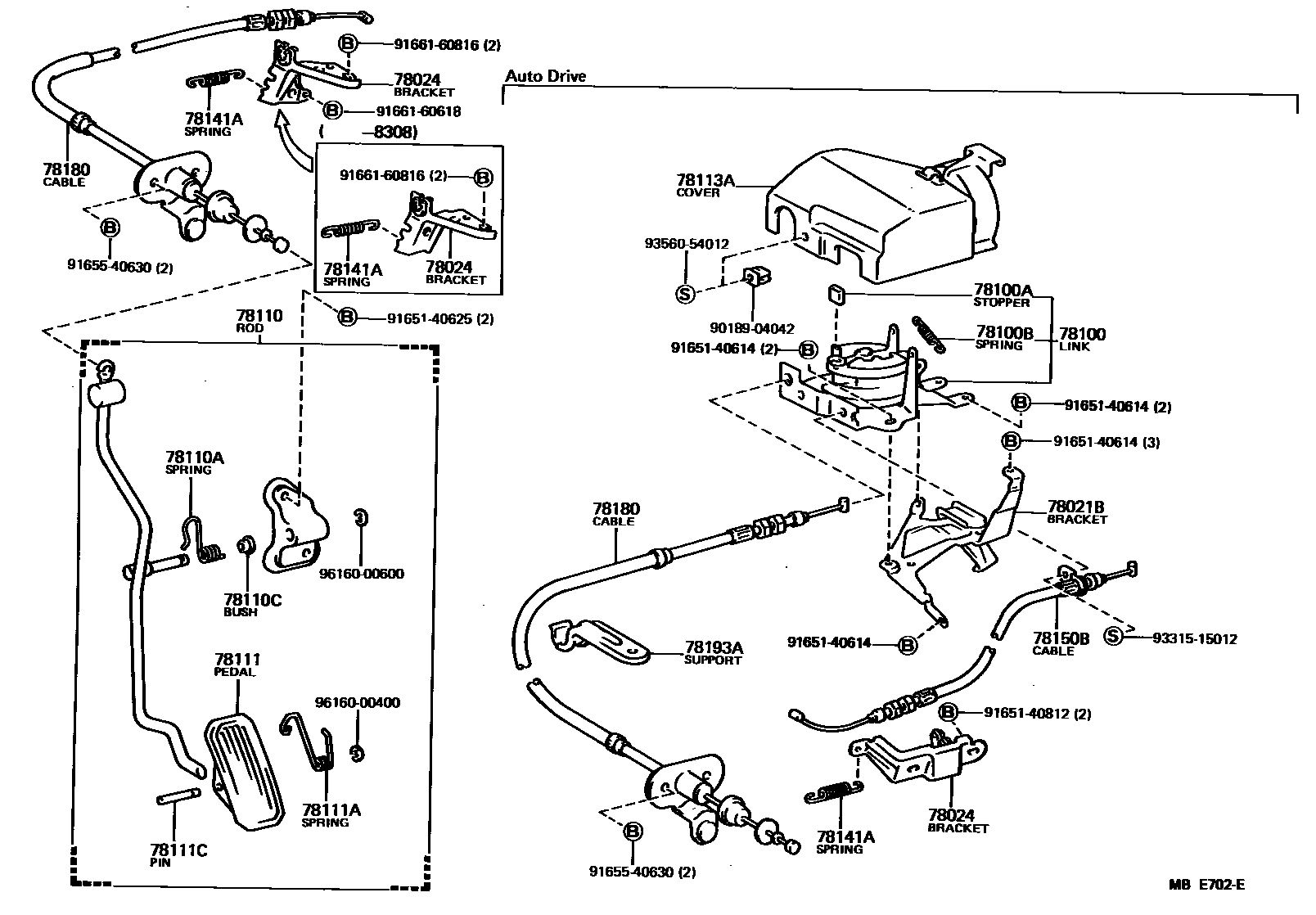

Toyota CAMRY accelerator pedal connecting rod — Figure 7801
Toyota CAMRY EPC diagram 7801, accelerator pedal connecting rod, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78021B | Accelerator pedal control right-angle lever bracket sub-assembly | 78021-32010 · 78021-32020 |
| 78024 | Accelerator pedal control cable bracket sub-assembly | 78024-32020 · 78024-32030 · 78024-32031 · 78024-32050 |
| 78100 | Accelerator pedal connecting rod assembly | 78100-12080 · 78100-32020 · 78100-32030 |
| 78100A | Accelerator pedal connecting rod stop | 78118-12010 |
| 78100B | Spring (for accelerator pedal linkage) | 90506-08019 |
| 78110 | Accelerator pedal lever assembly | 78120-32020 · 78120-32050 |
| 78110A | Spring (for accelerator pedal lever) | 90508-18025 · 90508-23069 |
| 78110C | Bushing (for accelerator pedal lever) | 90386-12023 |
| 78111 | accelerator pedal | 78111-32010 |
| 78111A | Spring (for gas pedal) | 90508-18046 |
| 78111C | pin (for gas pedal) | 90249-05001 |
| 78113A | Automatic transmission accelerator pedal connecting rod cover | 78113-12110 · 78113-32020 · 78113-32030 |
| 78141A | Tension spring (for throttle cable return spring) | 90506-12041 · 90507-10008 · 90507-11002 |
| 78150B | Accelerator pedal automatic transmission cable assembly | 78150-32020 · 78150-32030 |
| 78180 | Throttle cable assembly | 78180-32050 · 78180-32070 · 78180-32090 · 78180-32110 · 78180-32120 |
| 78193A | No. 3 accelerator pedal control cable bracket | 78193-32020 · 78193-32030 |
| 78194A | No. 4 accelerator pedal control cable bracket | 78194-32030 |
