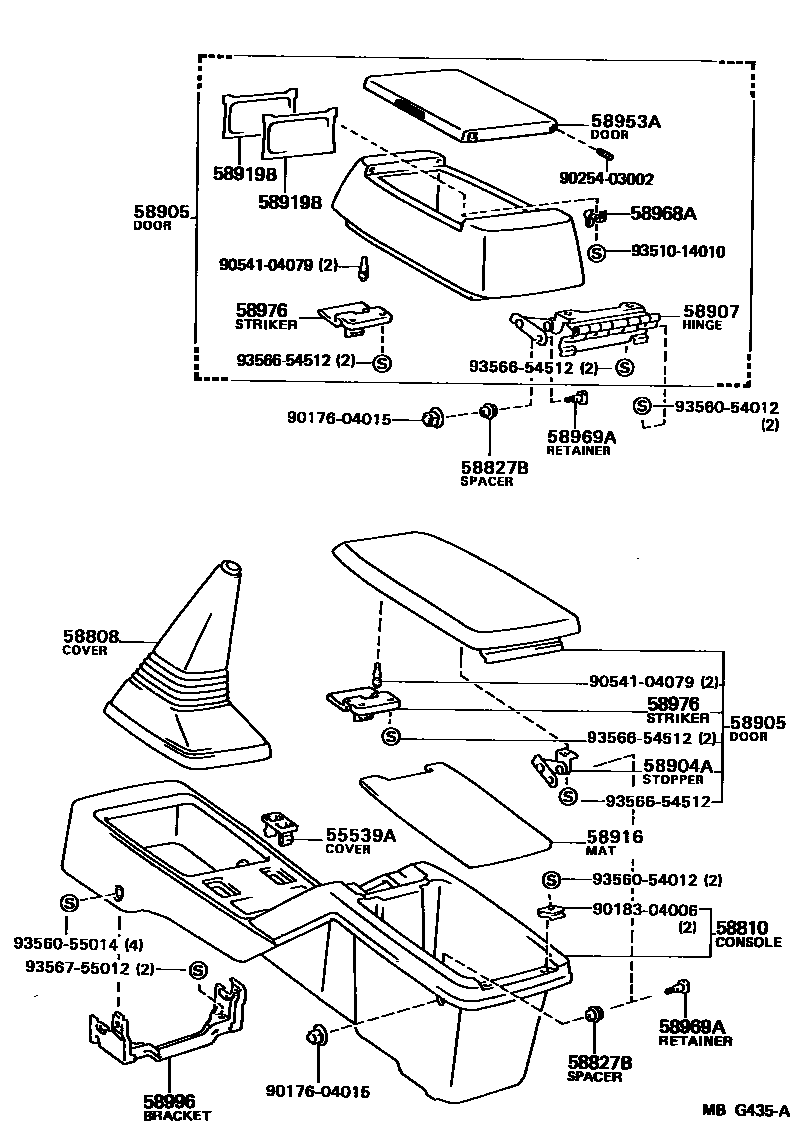

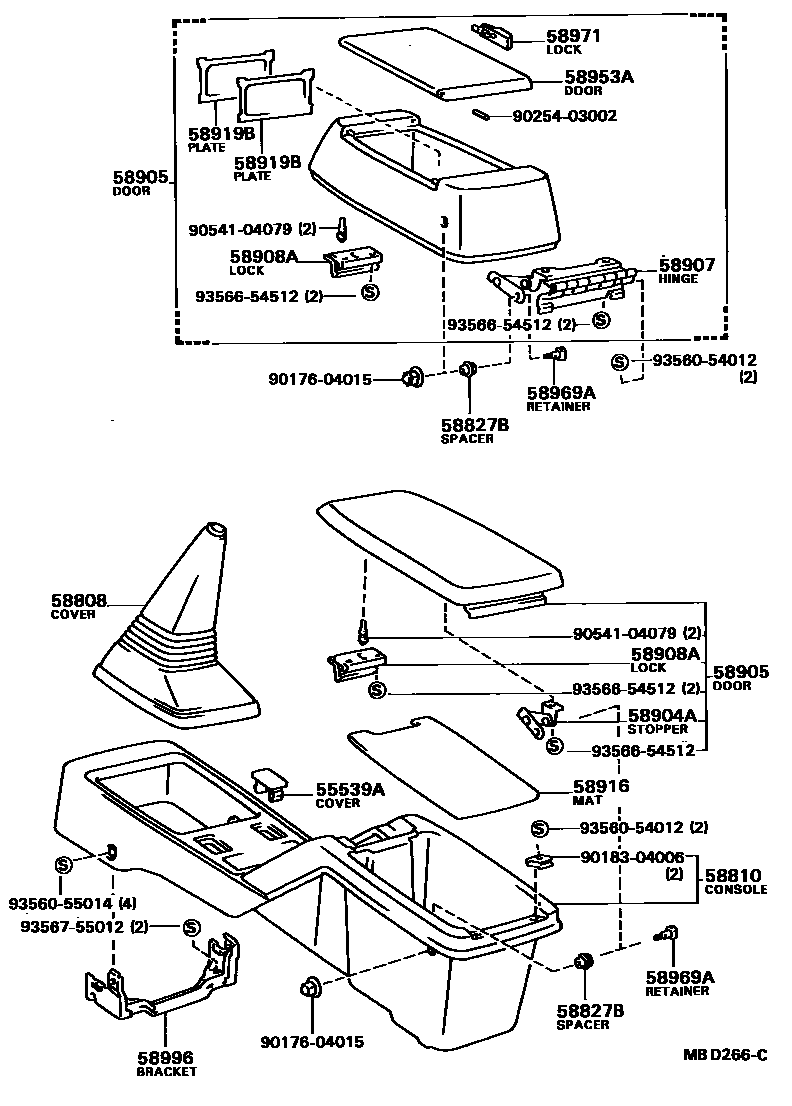

Toyota CAMRY 中央扶手箱和支架 — Figure 5806
Toyota CAMRY EPC diagram 5806, 中央扶手箱和支架, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58827B | Armrest box lid stopper spacer | 58827-20021 |
| 58904A | Armrest box lid stopper sub-assembly | 58909-32010 |
| 58907 | Armrest box lid hinge sub-assembly | 58907-32010 |
| 58908A | Armrest box lid lock assembly | 58908-22010 |
| 58916 | Armrest box bottom pad | 58916-32010 |
| 58919B | Armrest box nameplate | 58919-32010 |
| 58968A | Armrest box cover stop bracket | 58968-32010 |
| 58969A | Armrest box lid stopper fixing | 58969-20010 |
| 58976 | Armrest box lid lock | 58976-20010 |
| 58996 | Armrest box No. 1 mounting bracket | 58995-32010 |
