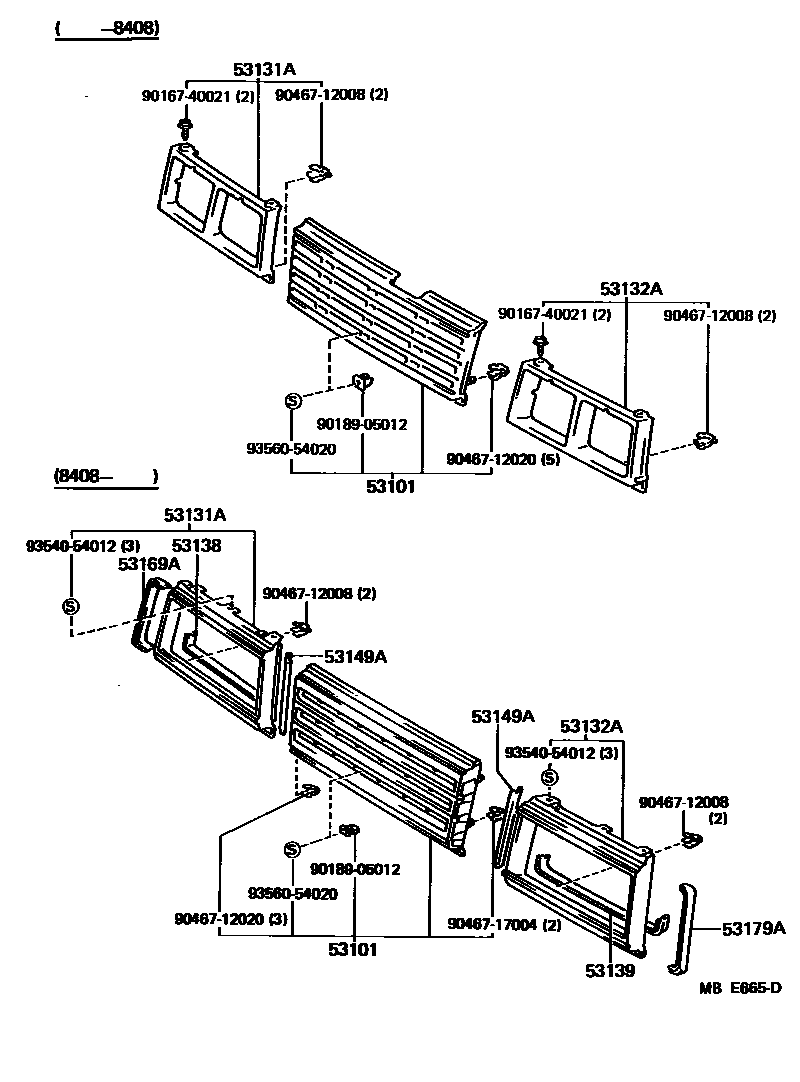

Toyota CAMRY radiator grille — Figure 5301
Toyota CAMRY EPC diagram 5301, radiator grille, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53101 | Radiator grille sub-assembly | 53101-39045 · 53101-39085 |
| 53131A | Right headlight lampshade | 53031-39045 · 53131-39225 |
| 53132A | Left headlight lampshade | 53032-39045 · 53132-39225 |
| 53138 | Right headlight guard | 53138-32010 |
| 53139 | Left headlight guard | 53139-32010 |
| 53149A | No. 3 headlight lampshade protective parts | 53149-32010 |
| 53169A | No. 2 right headlight lampshade protector | 53169-32010 |
| 53179A | No. 2 left headlight guard | 53169-32010 |
