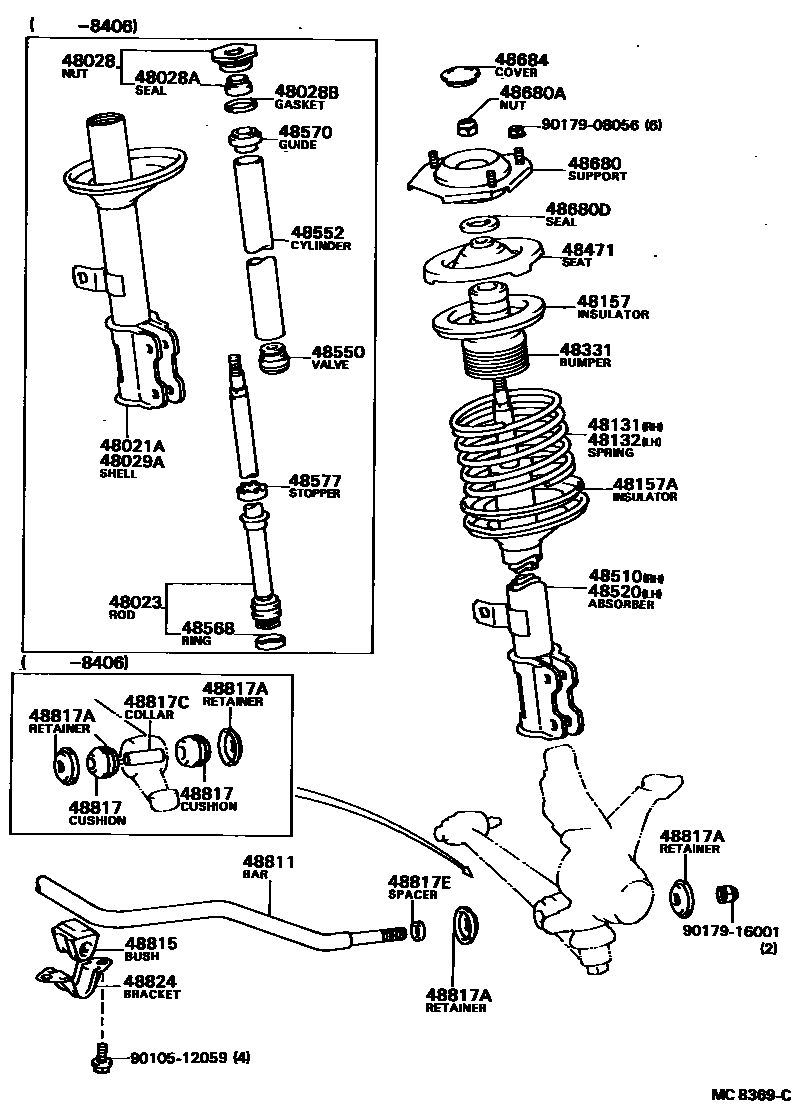

Toyota CAMRY Front Spring & Shock Absorber — Figure 4803
Toyota CAMRY EPC diagram 4803, Front Spring & Shock Absorber, with 1 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48021A | Right front shock absorber housing sub-assembly | 48021-32010 |
| 48023 | Front shock absorber piston rod sub-assembly | 48023-32010 |
| 48028 | Shock absorber ring nut sub-assembly | 48028-14011 |
| 48028A | Oil seal (for shock absorber ring nut) | 90316-22001 |
| 48028B | Gasket (for shock absorber ring nut) | 90430-43206 |
| 48029A | Left front shock absorber housing sub-assembly | 48029-32010 |
| 48131 | Right front coil spring | 48131-32070 · 48131-32090 · 48131-32150 |
| 48132 | Left front coil spring | 48131-32070 · 48131-32090 · 48131-32150 |
| 48157 | Front coil spring upper vibration isolation pad | 48157-32010 |
| 48157A | Front coil spring lower vibration isolation pad | 48158-12020 · 48158-32010 |
| 48331 | No. 1 front spring buffer block | 48304-32010 |
| 48471 | Front spring seat | 48044-32010 |
| 48510 | Right front shock absorber assembly | 48510-32010 · 48510-32030 · 48510-32060 |
| 48520 | Left front shock absorber assembly | 48520-32010 · 48520-32030 · 48520-32060 |
| 48550 | Shock absorber bottom valve assembly | 48550-24010 |
| 48552 | front shock absorber cylinder | 48552-32010 |
| 48568 | Shock absorber piston ring | 48568-22020 · 48568-22021 |
| 48570 | Damper rod guide assembly | 48022-14010 |
| 48577 | Shock absorber rebound limiter | 48579-14011 |
| 48680 | Front suspension support assembly | 48609-20050 · 48609-20060 |
| 48680A | Nut (for front mount to front shock absorber) | 94182-11400 |
| 48680D | Dust seal (for front suspension mount) | 90303-22049 |
| 48684 | Bearing dust cover | 48684-32010 |
| 48811 | front stabilizer bar | 48811-32010 · 48811-32050 |
| 48815 | Front stabilizer bar bushing No. 1 | 48815-32010 · 48815-32030 |
| 48817 | Front stabilizer bar cushion | 48674-32010 · 48674-32050 · 48674-32080 |
| 48817A | Crash pad block No. 1 (for front stabilizer bar) | 90948-02057 · 90948-02078 |
| 48817C | Collar (for stabilizer bar) | 90387-16003 |
| 48817E | Spacer (for stabilizer bar) | 90560-16005 |
| 48824 | front stabilizer bar bracket | 48824-32010 · 48824-32020 |
