Toyota CAMRY Steering Wheel — Figure 4504

Toyota CAMRY EPC diagram 4504, Steering Wheel, with 4 images and 12 PNC and OE references.

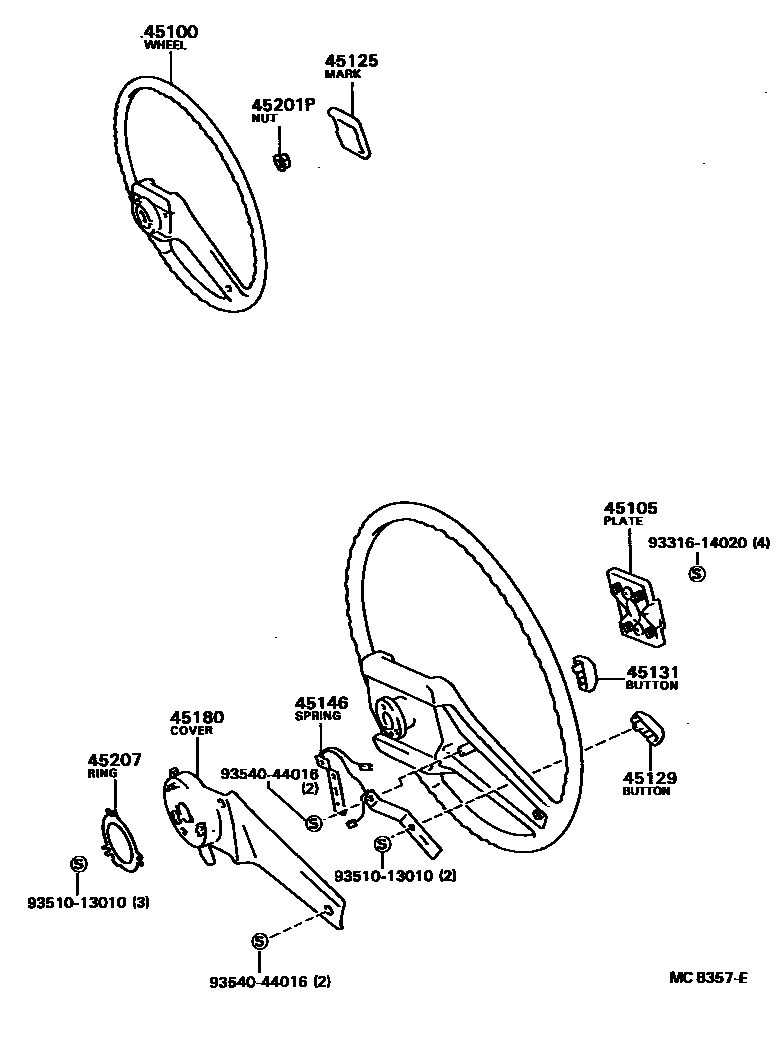

Toyota CAMRY Steering Wheel EPC diagram — MC8357E
Steering Wheel — MC8357E (198301 – 198408)

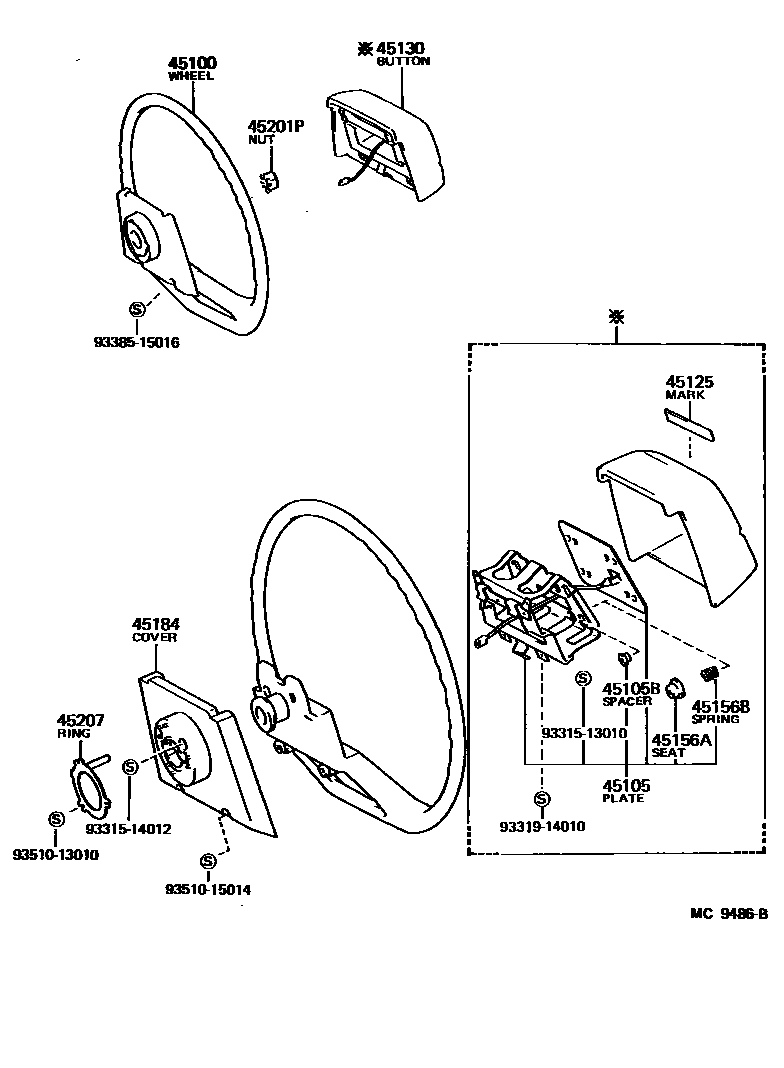

Toyota CAMRY Steering Wheel EPC diagram — MC9486B
Steering Wheel — MC9486B (198301 – 999999)

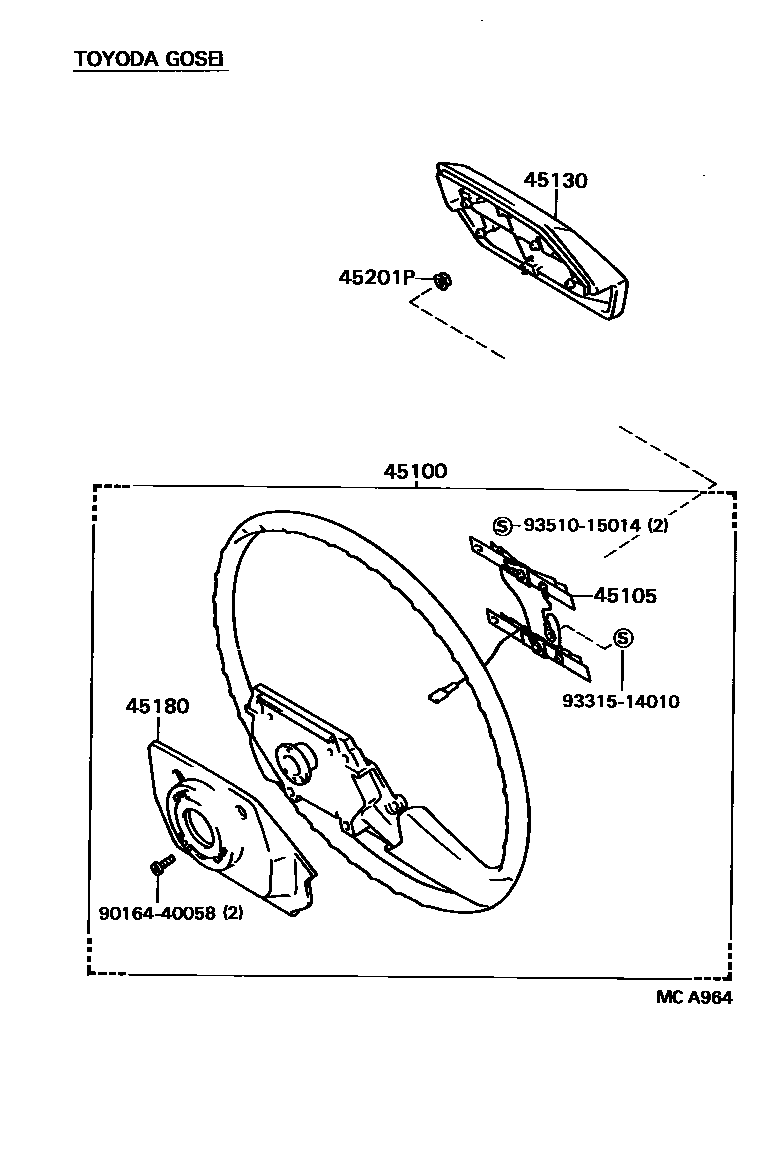

Toyota CAMRY Steering Wheel EPC diagram — MCA964
Steering Wheel — MCA964 (198408 – 999999)

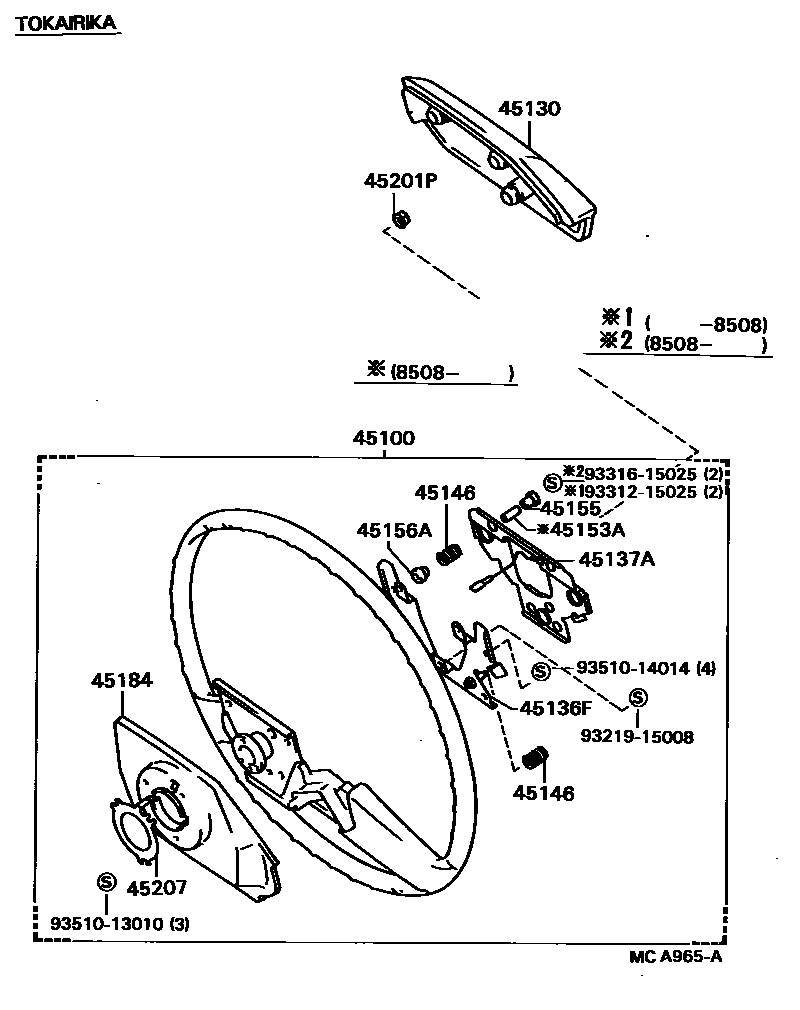

Toyota CAMRY Steering Wheel EPC diagram — MCA965A
Steering Wheel — MCA965A (198408 – 999999)

PNC and OE references

PNCPart nameOE numbers
45105No. 1 horn button contact piece sub-assembly45105-22070 · 45105-32020 · 45105-32030
45105BSpacer (for horn button contact piece)90561-02001
45125Steering wheel trim cover markings45125-22320
45136FNo. 1 horn button contact piece45136-32050
45137ANo. 2 horn button contact piece45137-32020
45146Horn button contact spring45146-20140 · 45146-32020 · 45146-32040
45153ACollar (for horn button)90387-05016
45155Horn button contact piece spacer45155-20020 · 45155-20021
45156ASpeaker contact spring holder45156-16010 · 45156-20020 · 45156-20021
45156BSpring (for horn contact spring holder)90501-06032
45201PSteering wheel fixing nut90179-12086
45207Speaker contact ring45176-20050 · 45176-22050 · 45176-32010
