Toyota CAMRY 超速档齿轮(ATM) — Figure 3506

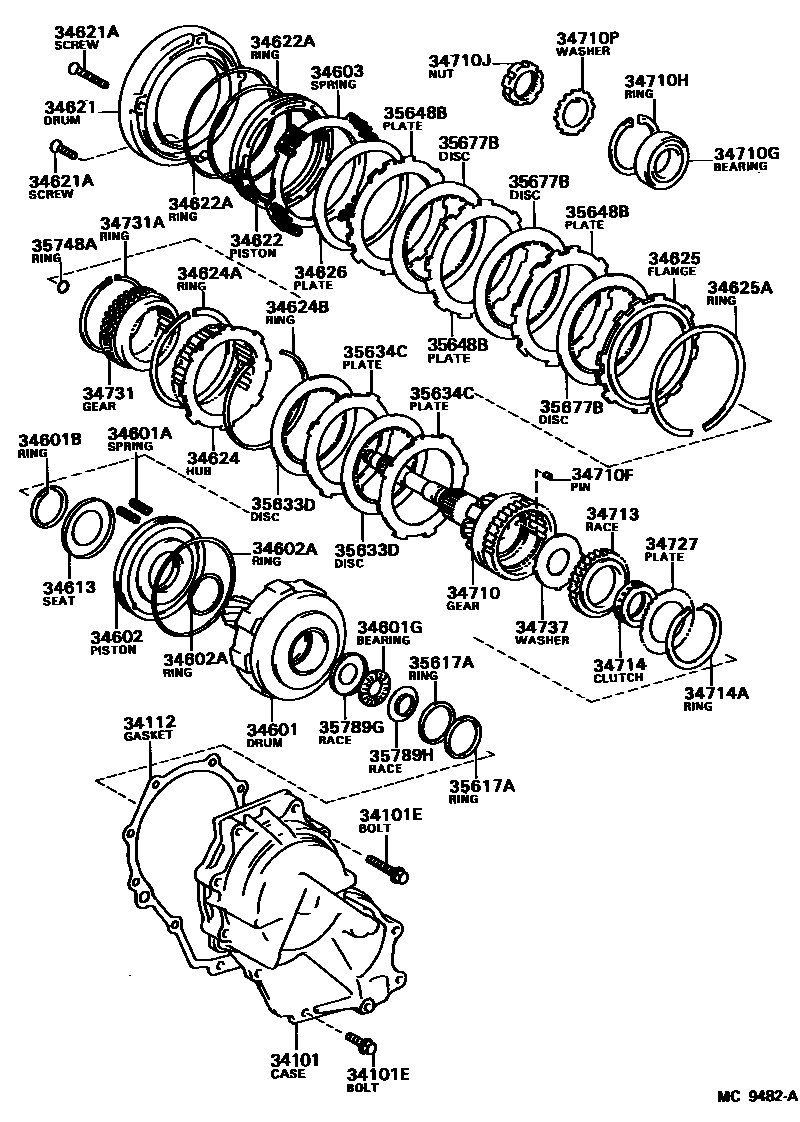

Toyota CAMRY EPC diagram 3506, 超速档齿轮(ATM), with 1 images and 42 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 34101 | Overspeed gear housing sub-assembly | 34101-32020 · 34101-32021 |
| 34101E | Bolts (for securing overdrive housing and transaxle housing) | 90105-08055 · 90105-08056 |
| 34112 | Overdrive housing gasket | 34112-32010 |
| 34601 | Overspeed direct gear clutch drum sub-assembly | 34601-32010 · 34601-32011 |
| 34601A | Compression spring (for overdrive direct clutch) | 90501-11007 |
| 34601B | Shaft snap ring (for overdrive direct gear clutch) | 90520-52262 |
| 34601G | Thrust needle roller bearing (for overspeed direct clutch) | 90374-28004 |
| 34602 | Overspeed direct gear clutch piston sub-assembly | 34602-32010 |
| 34602A | O-ring (for overspeed direct clutch piston) | 90301-57188 · 90301-99016 |
| 34603 | Overdrive brake return spring sub-assembly | 34603-32010 |
| 34613 | Overdrive direct gear clutch return spring seat | 34613-30010 |
| 34621 | overdrive brake drum | 34621-32010 |
| 34621A | Screw (for securing overdrive brake drum) | 90149-60022 · 90149-60023 |
| 34622 | overdrive brake piston | 34622-32010 |
| 34622A | O-ring (for overdrive brake piston) | 90301-99020 · 90301-99022 |
| 34624 | overdrive brake hub | 34624-32010 |
| 34624A | No. 1 hole snap ring (for overdrive brake hub) | 90521-99001 |
| 34624B | No. 2 hole snap ring (for overdrive brake hub) | 90521-99012 |
| 34625 | No. 1 overdrive brake flange | 34625-32010 |
| 34625A | Hole snap ring (for overdrive brake flange) | 90521-99011 |
| 34626 | overdrive brake cushion | 34626-30050 |
| 34710 | Overdrive planetary gear assembly | 34710-32010 · 34710-32011 |
| 34710F | Direct sales (for overdrive planetary gears) | 90334-03001 |
| 34710G | Radial ball bearings (for overdrive planetary gears) | 90363-40024 |
| 34710H | Hole snap ring (for overdrive planetary gear bearings) | 90521-76003 |
| 34710J | Nut (for overdrive planetary gear) | 90179-40002 |
| 34710P | Washer (for overdrive planetary gear) | 90209-40001 |
| 34713 | One-way clutch outer race (for overdrive) | 34713-32010 |
| 34714 | One-way clutch (for overdrive) | 34714-32010 |
| 34714A | Hole snap ring (for one-way clutch) | 90521-93002 |
| 34727 | Block (for overdrive) | 34727-32010 |
| 34731 | Overdrive planetary ring gear | 34731-32010 |
| 34731A | Hole snap ring (for overdrive planetary ring gear) | 90521-99008 |
| 34737 | No. 3 overdrive planetary gear thrust washer | 34737-32010 · 34737-32011 |
| 35617A | Clutch drum oil guard (for overdrive) | 35617-16010 |
| 35633D | Clutch disc (for overdrive direct clutch) | 35633-32010 · 35633-32020 |
| 35634C | Clutch disc (for overdrive direct gear clutch) | 35634-32010 |
| 35648B | Clutch disc (for overdrive brake) | 35648-32020 |
| 35677B | Clutch disc (for overdrive brake) | 35677-30040 · 35677-32010 · 35677-32030 |
| 35748A | Countershaft oil protector ring (for overdrive gear) | 35748-32010 |
| 35789G | Thrust bearing race (for overspeed direct clutch drum) | 35789-32090 |
| 35789H | Thrust bearing race (for overdrive housing) | 35789-20020 · 35789-32100 |
