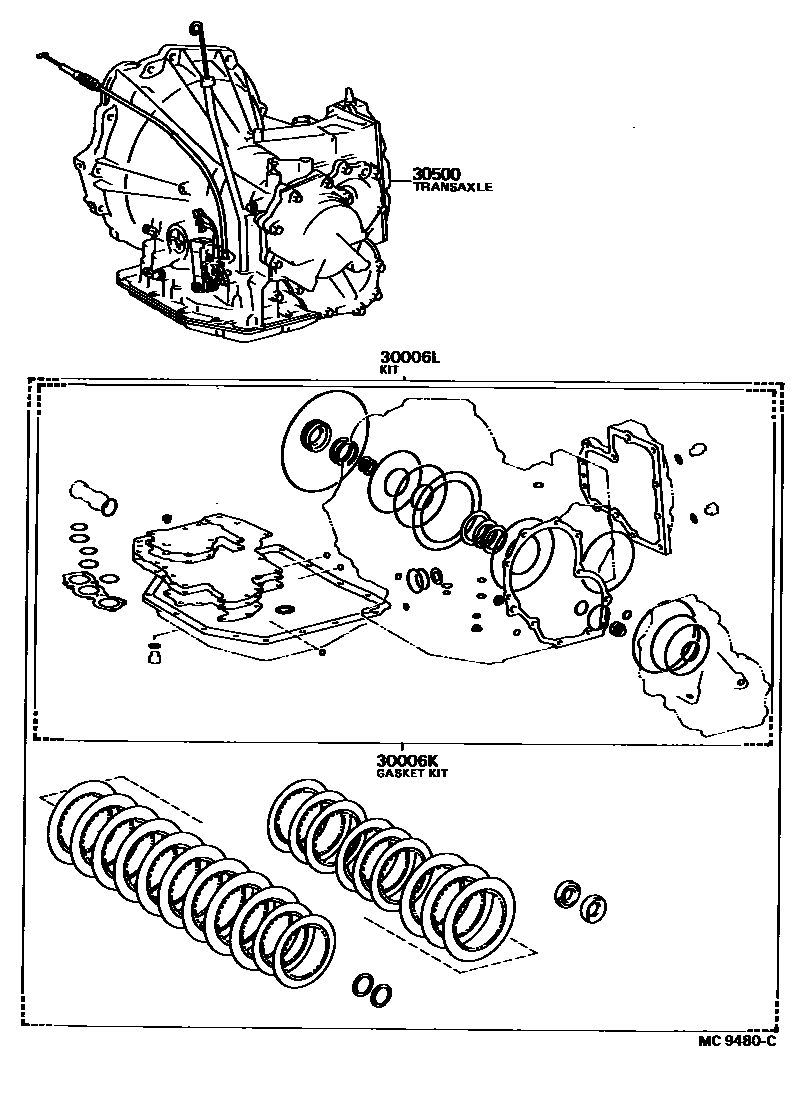

Toyota CAMRY 传动桥或变速器总成和衬垫组件(ATM) — Figure 3501
Toyota CAMRY EPC diagram 3501, 传动桥或变速器总成和衬垫组件(ATM), with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 30006K | Transaxle overhaul gasket assembly (ATM) | 04351-32020 · 04351-32021 · 04351-32040 |
| 30006L | Transaxle Overhaul Kit (ATM) | 04352-32010 · 04352-32011 · 04352-32020 · 04352-32040 |
| 30500 | Automatic transmission axle assembly | 30500-32011 · 30500-32030 · 30500-32100 · 30500-32130 |
