Toyota CAMRY 速度表从动齿轮(MTM) — Figure 3304

Toyota CAMRY EPC diagram 3304, 速度表从动齿轮(MTM), with 1 images and 6 PNC and OE references.

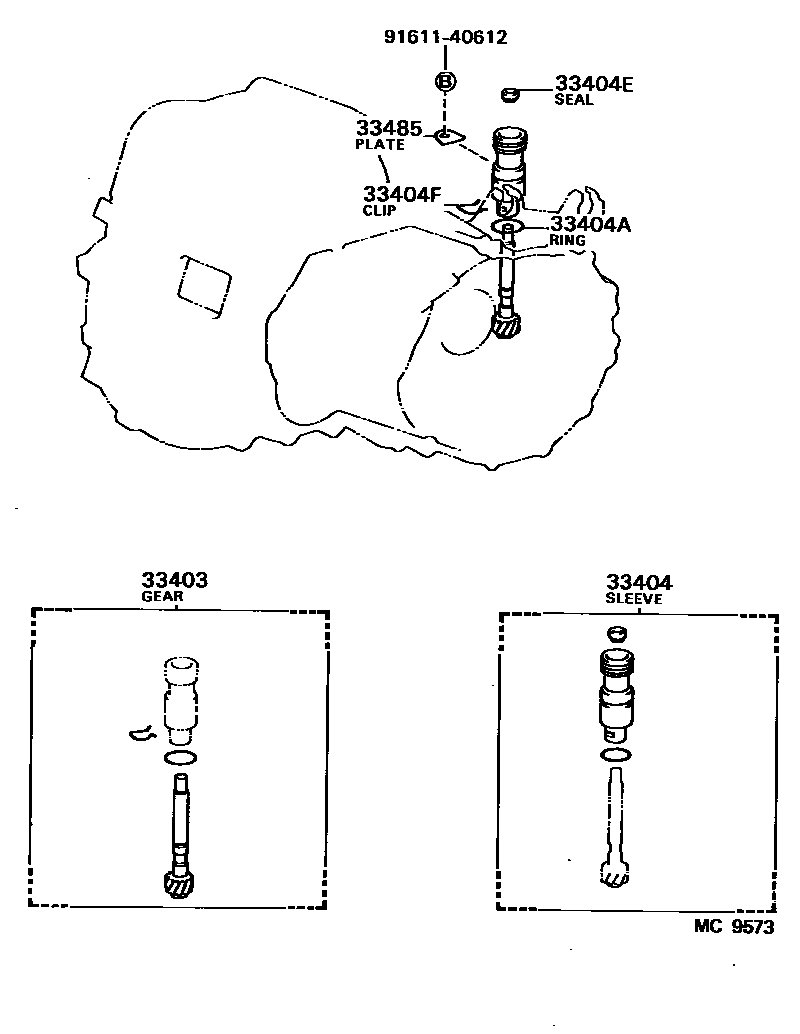

Toyota CAMRY 速度表从动齿轮(MTM) EPC diagram — MC9573
速度表从动齿轮(MTM) — MC9573 (198301 – 999999)

PNC and OE references

PNCPart nameOE numbers
33403Speedometer driven gear sub-assembly (MTM)33403-39115
33404Speedometer shaft sleeve sub-assembly (MTM)33404-16010
33404AO-ring (for manual transmission speedometer shaft sleeve)96711-24018
33404EOil seal (for manual transmission speedometer shaft sleeve)90310-09001
33404FClamp (for manual transmission speedometer shaft sleeve)90468-12005
33485Speedometer sleeve locking plate (MTM)33485-14010
