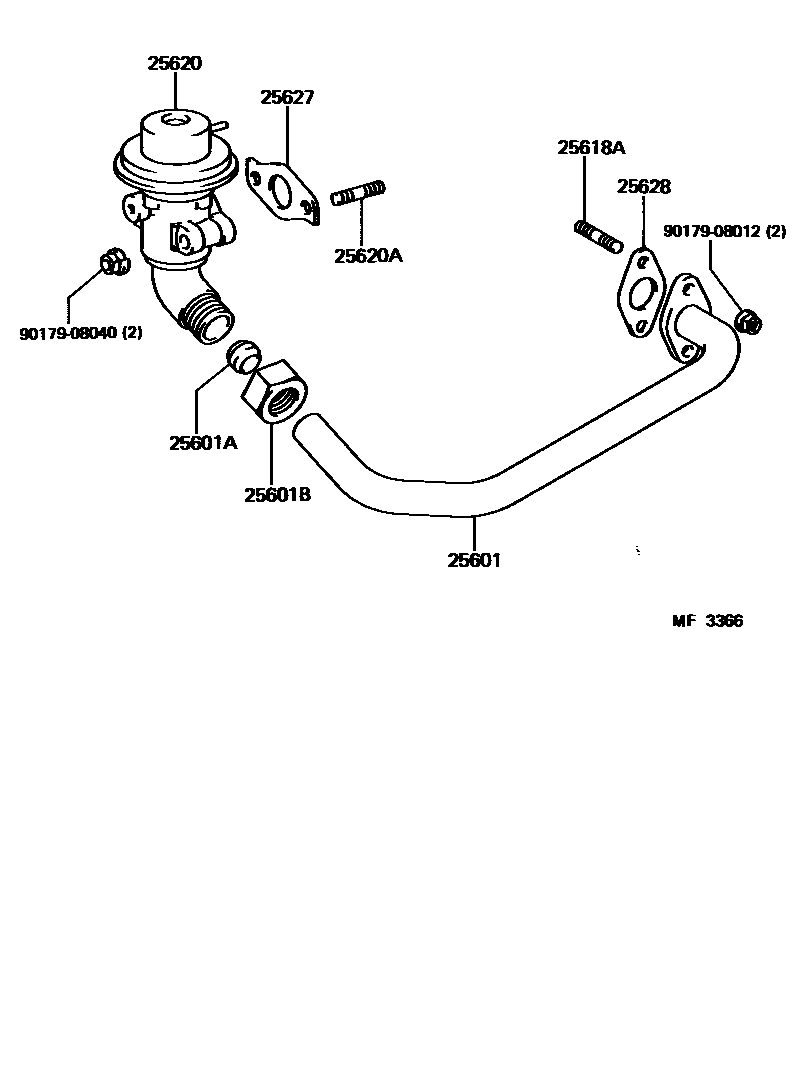

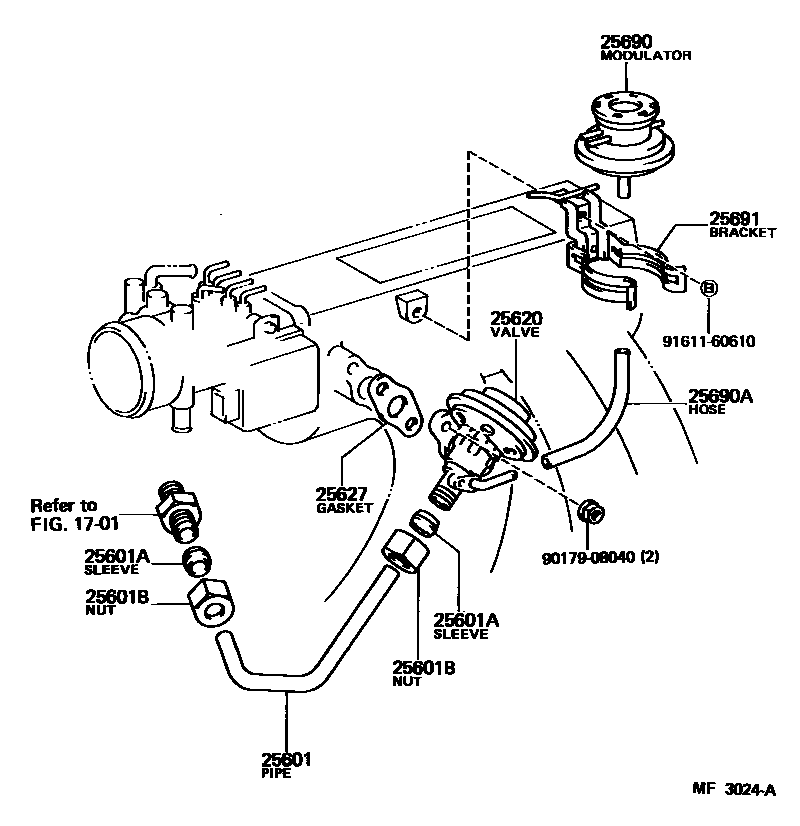

Toyota CAMRY 废气再循环系统 — Figure 2501
Toyota CAMRY EPC diagram 2501, 废气再循环系统, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 25601 | No. 1 EGR pipe assembly | 25601-64021 · 25611-74010 |
| 25601A | No. 1 EGR tube ball sleeve | 90410-12042 · 90410-22001 |
| 25601B | No. 1 EGR pipe connecting nut | 90402-20073 · 90402-30002 |
| 25618A | Stud bolts (for EGR air inlet) | 92122-60822 |
| 25620 | EGR valve assembly | 25620-64020 · 25620-64021 · 25620-74010 · 25620-74040 |
| 25620A | Stud bolts (for EGR valve) | 90116-08198 |
| 25627 | EGR valve gasket | 25627-64010 · 25627-74010 |
| 25628 | EGR air intake gasket | 25628-64020 |
| 25690 | EGR vacuum regulator assembly | 25870-74030 · 25870-74040 · 25870-74050 |
| 25690A | Hoses (for EGR vacuum regulator) | 90445-11065 |
| 25691 | EGR vacuum regulator bracket | 25691-74010 |
