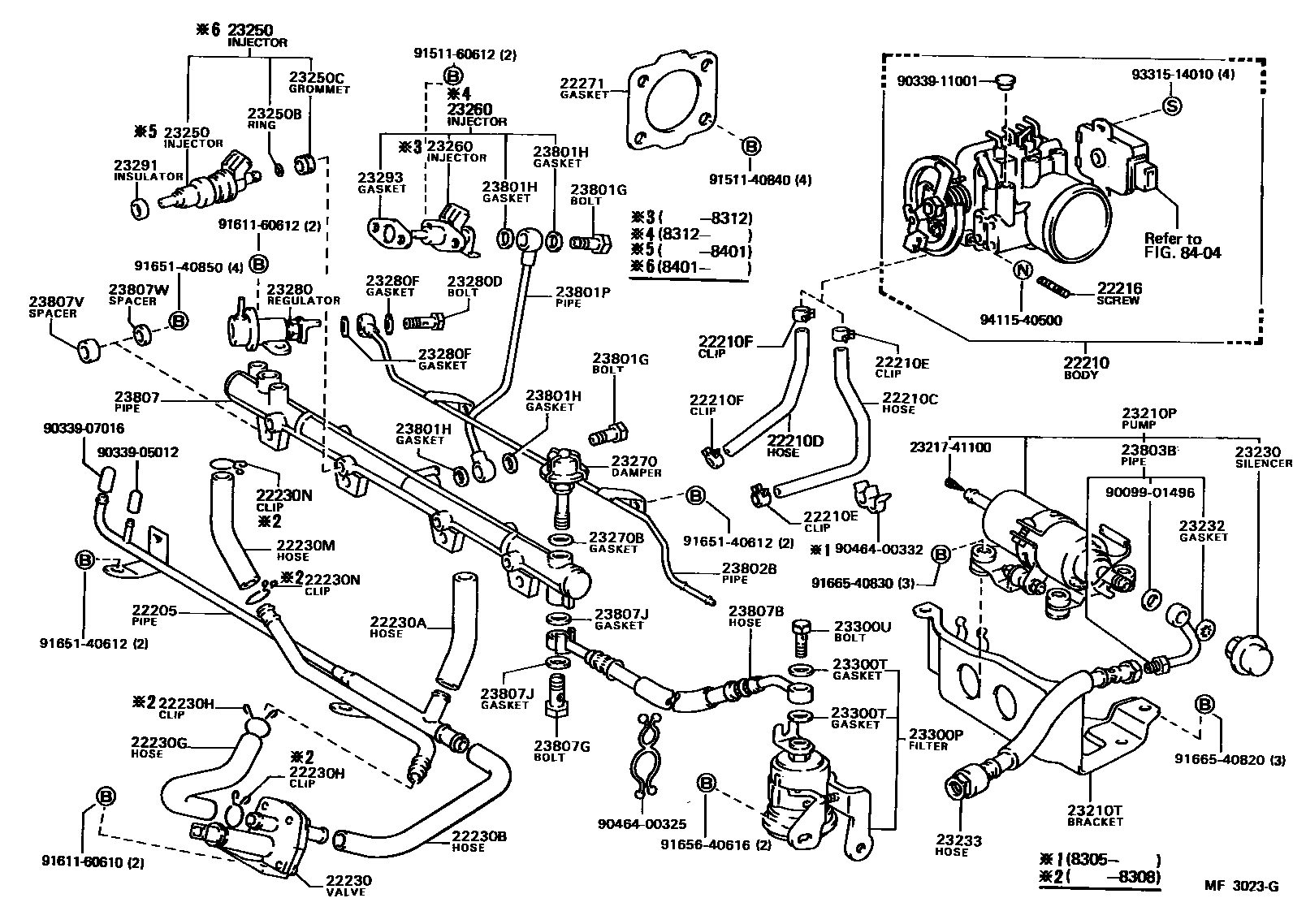

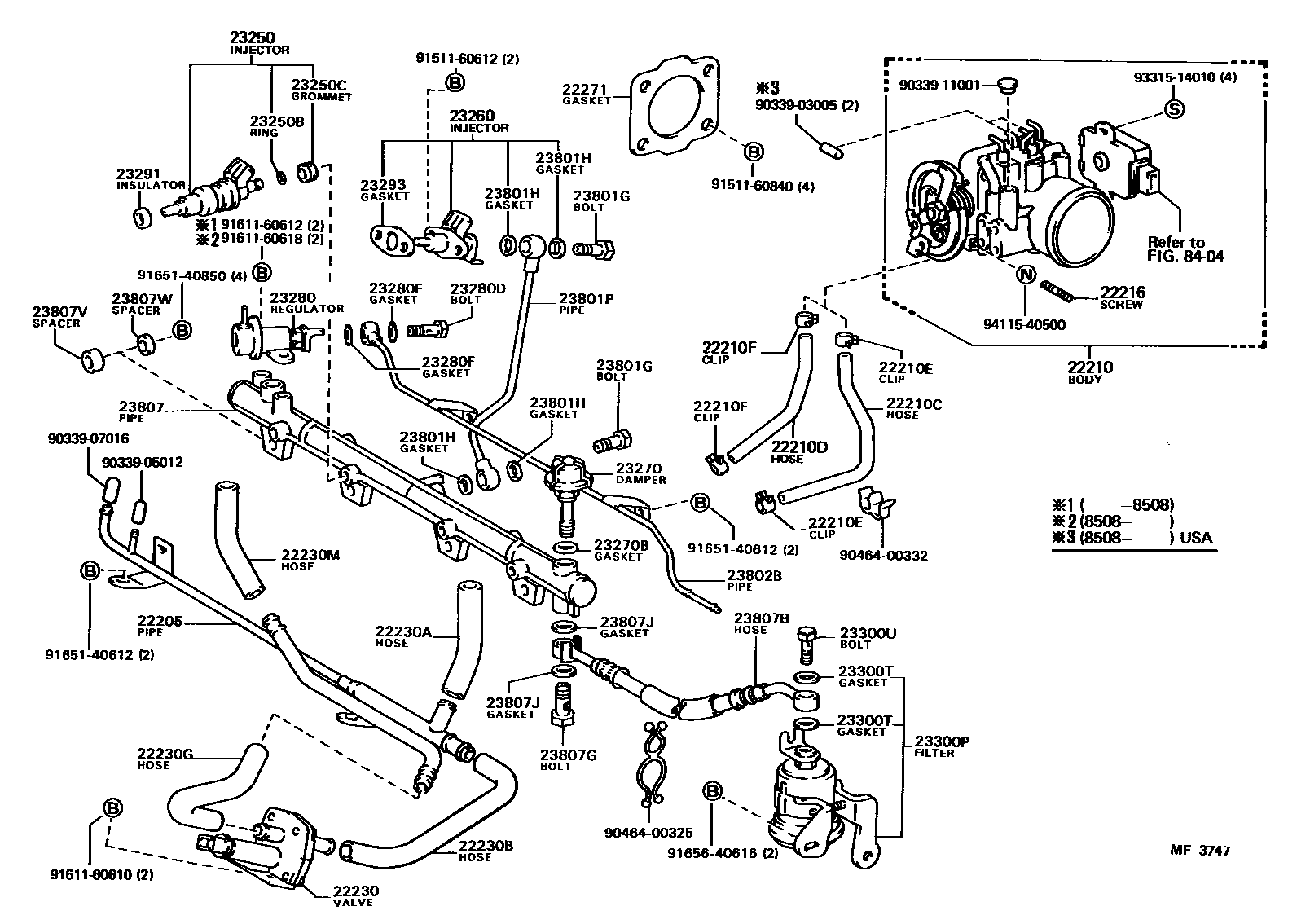

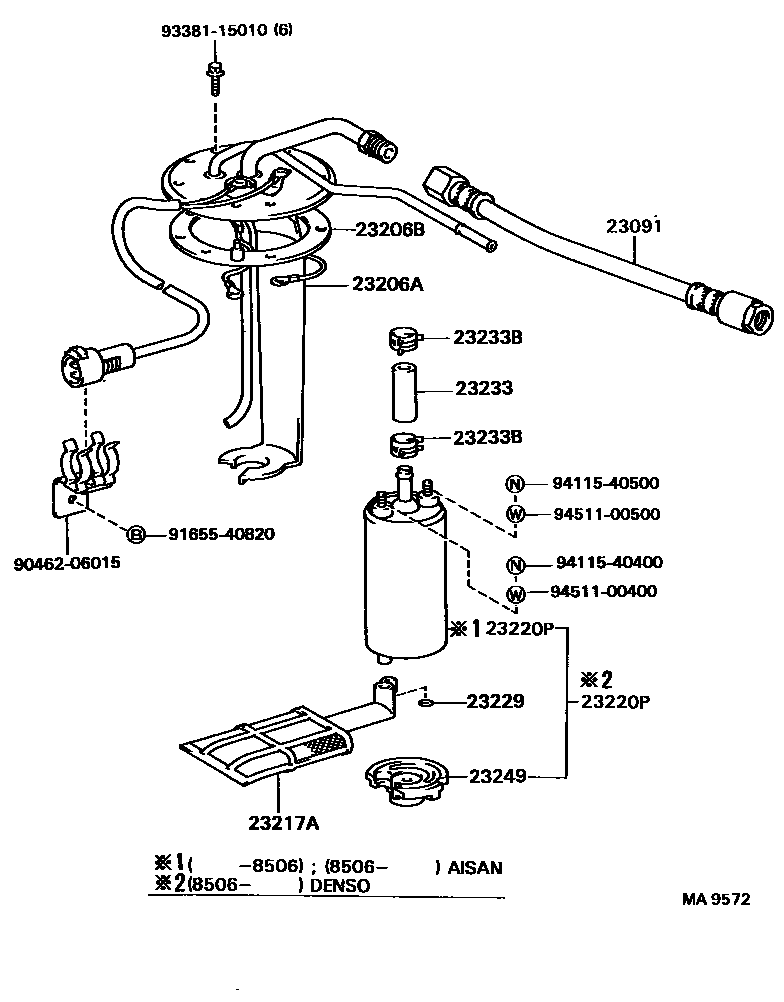

Toyota CAMRY 燃油喷射系统 — Figure 2211
Toyota CAMRY EPC diagram 2211, 燃油喷射系统, with 3 images and 53 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22205 | Auxiliary air pipe sub-assembly | 22205-63010 · 22205-74011 |
| 22210 | Throttle body assembly | 22210-74030 · 22210-74031 · 22210-74040 · 22210-74041 · 22210-74050 · 22210-74051 · 22210-74060 · 22210-74061 |
| 22210C | HOSE, WATER BY-PASS, NO.1 | 16264-74010 |
| 22210D | HOSE, WATER BY-PASS, NO.2 | 16267-74010 · 16267-74011 |
| 22210E | Hose clamp or clip (for water bypass hose No. 1) | 90467-13001 |
| 22210F | Hose clamp or clip (for No. 2 water bypass hose) | 90467-13001 |
| 22216 | Deceleration buffer adjustment screw | 22216-74010 |
| 22230 | Auxiliary air valve assembly | 22230-74020 · 22230-74040 |
| 22230A | No. 1 auxiliary air valve hose | 90445-21007 |
| 22230B | No. 2 auxiliary air valve hose | 22234-74011 |
| 22230G | No. 3 auxiliary air valve hose | 22236-74010 |
| 22230H | No. 3 auxiliary air valve hose clip | 90467-20002 |
| 22230M | No. 4 auxiliary air valve hose | 22237-74010 |
| 22230N | No. 4 auxiliary air valve clip | 90467-20002 |
| 22271 | Throttle body gasket | 22271-74010 |
| 23091 | Fuel pump pipe sub-assembly | 23091-74020 |
| 23206A | fuel pump bracket | 23206-74080 · 23206-74110 |
| 23206B | fuel pump bracket gasket | 77169-32010 |
| 23210P | Water pump assembly with motor and bracket | 23210-74020 |
| 23210T | fuel pump bracket | 23265-74010 |
| 23217A | fuel pump filter | 23217-16010 · 23217-16022 · 23217-16023 |
| 23220P | fuel pump assembly | 23220-16070 · 23220-16080 · 23220-16081 · 23220-16083 · 23220-19015 |
| 23229 | Clip (for fuel pump filter) | 23229-16010 |
| 23230 | Muffler assembly | 23230-74020 |
| 23232 | Gasket (for fuel pump hose) | 23232-41081 |
| 23233 | fuel pump hose | 23239-16010 · 90923-01264 |
| 23233B | Clamp (for fuel pump hose) | 90467-13001 |
| 23249 | Rubber gasket (for fuel pump) | 23249-16010 · 23249-43080 |
| 23250 | Fuel injector assembly | 23209-45011 · 23250-45011 |
| 23250B | O-ring (for fuel injector) | 90301-07001 |
| 23250C | Gasket (for injector) | 90480-13005 |
| 23260 | Cold start injector assembly | 23260-74010 · 23260-79055 |
| 23270 | Fuel pressure pulsation damper assembly | 23207-45010 |
| 23270B | Gasket (for pulsation damper hose) | 90430-17002 |
| 23280 | Fuel pressure regulator assembly | 23280-74010 |
| 23280D | Connector bolt (for fuel line or hose assembly) | 90401-08003 · 90401-08004 |
| 23280F | Gasket (for fuel pressure regulator) | 90430-08005 · 90430-08009 |
| 23291 | Injector vibration isolation pad | 23291-74010 |
| 23293 | Cold start injector gasket | 23293-74010 |
| 23300P | Fuel filter (for EFI) | 23030-79025 |
| 23300T | Gasket (for fuel filter) | 90430-12005 |
| 23300U | Connector bolt (for fuel filter) | 90401-12097 |
| 23801G | Connector bolt (for fuel pipe) | 90401-08003 · 90401-08004 |
| 23801H | Gasket (for fuel lines) | 90430-08005 · 90430-08009 |
| 23801P | No. 1 fuel pipe sub-assembly | 23801-74010 |
| 23802B | No. 2 fuel pipe sub-assembly | 23802-74010 |
| 23803B | No. 3 fuel pipe sub-assembly | 23803-79025 |
| 23807 | Oil pipe sub-assembly | 23807-74010 |
| 23807B | Fuel line hose | 23271-74020 |
| 23807G | Oil pipe inlet joint bolts | 90401-14091 |
| 23807J | Oil pipe inlet gasket | 90430-14002 |
| 23807V | No. 1 spacer (for oil pipe) | 90560-11006 |
| 23807W | No. 2 spacer (for oil pipe) | 90560-08024 |
