Toyota CAMRY 喷油泵总成 — Figure 2202

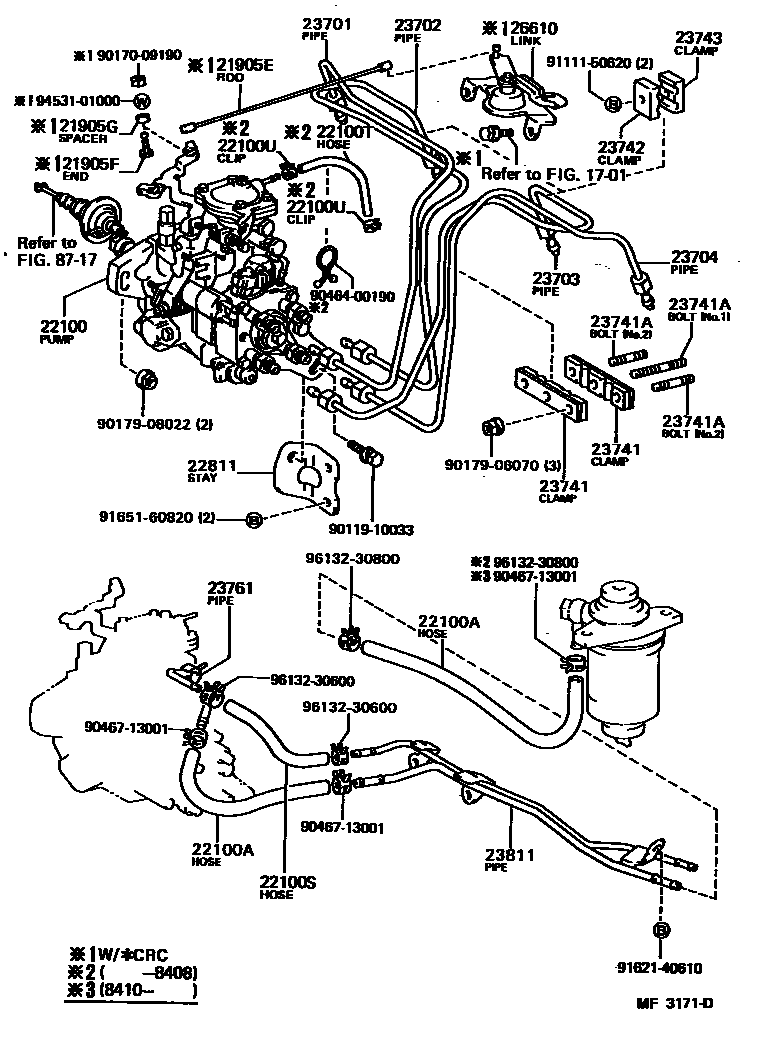

Toyota CAMRY EPC diagram 2202, 喷油泵总成, with 1 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 21905E | Accelerator pedal connecting rod sub-assembly | 21905-64010 |
| 21905F | Accelerator pedal connecting rod end | 21958-64010 · 21958-64011 |
| 21905G | Gas pedal connecting rod spacer | 90560-09017 |
| 22100 | Fuel injection pump or fuel supply pump assembly | 22100-64520 · 22100-64540 · 22100-64640 · 22100-64650 · 22100-6A020 |
| 22100A | Fuel hose or fuel line (for injection pump to fuel filter) | 23273-64030 · 90447-14013 |
| 22100S | Fuel hose (for injection pump to fuel pipe) | 23274-64010 |
| 22100T | Hose (for intake manifold to fuel injection pump) | 90445-08237 |
| 22100U | Fuel hose clamp (for fuel injection pump) | 90467-07016 |
| 22811 | No. 1 fuel injection pump bracket | 22811-64010 |
| 23701 | No. 1 fuel injection pipe sub-assembly | 23701-64060 |
| 23702 | No. 2 fuel injection pipe sub-assembly | 23702-64060 |
| 23703 | No. 3 fuel injection pipe sub-assembly | 23703-64060 |
| 23704 | No. 4 fuel injection pipe sub-assembly | 23704-64060 |
| 23741 | No. 1 fuel injection pipe clamp | 23741-64010 |
| 23741A | Stud bolts (for fuel injection pipe clamp) | 90116-06275 · 92122-60622 |
| 23742 | No. 2 fuel injection pipe clamp | 23741-54010 |
| 23743 | No. 3 fuel injection pipe clamp | 23742-54010 |
| 23761 | No. 1 fuel injector overflow pipe | 23764-64040 |
| 23811 | Fuel pipe (for fuel filter to injection pump) | 23811-64020 |
| 26610 | Automatic connecting rod assembly | 26610-64010 |
