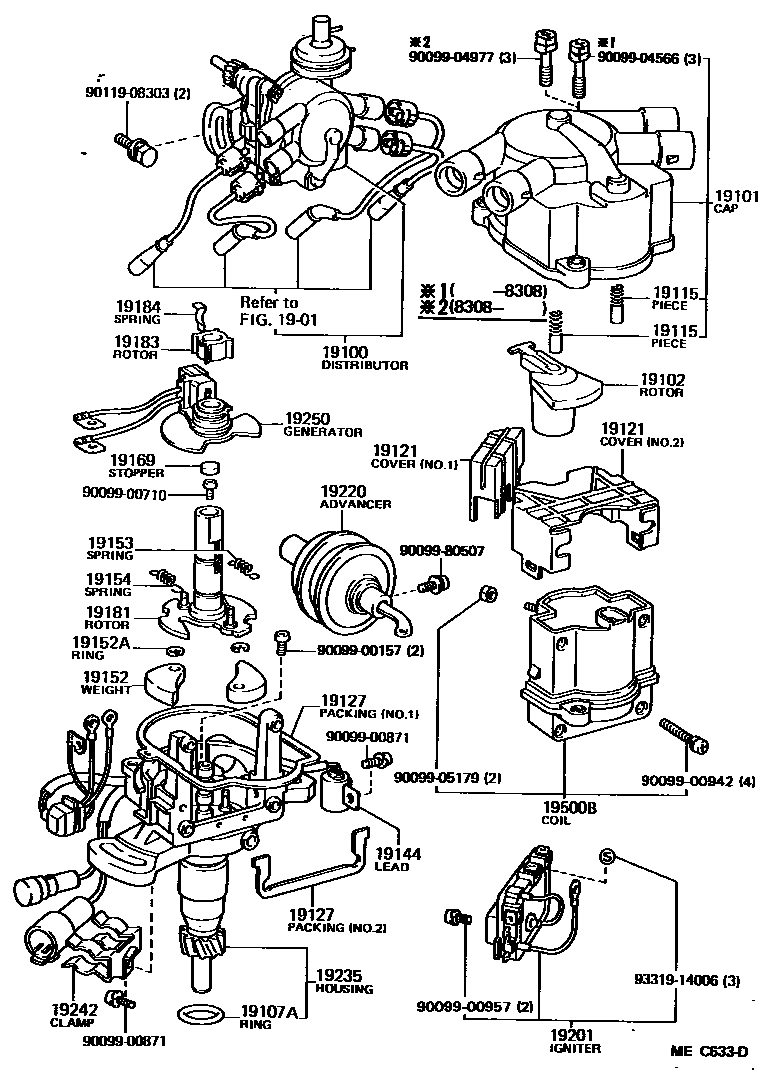

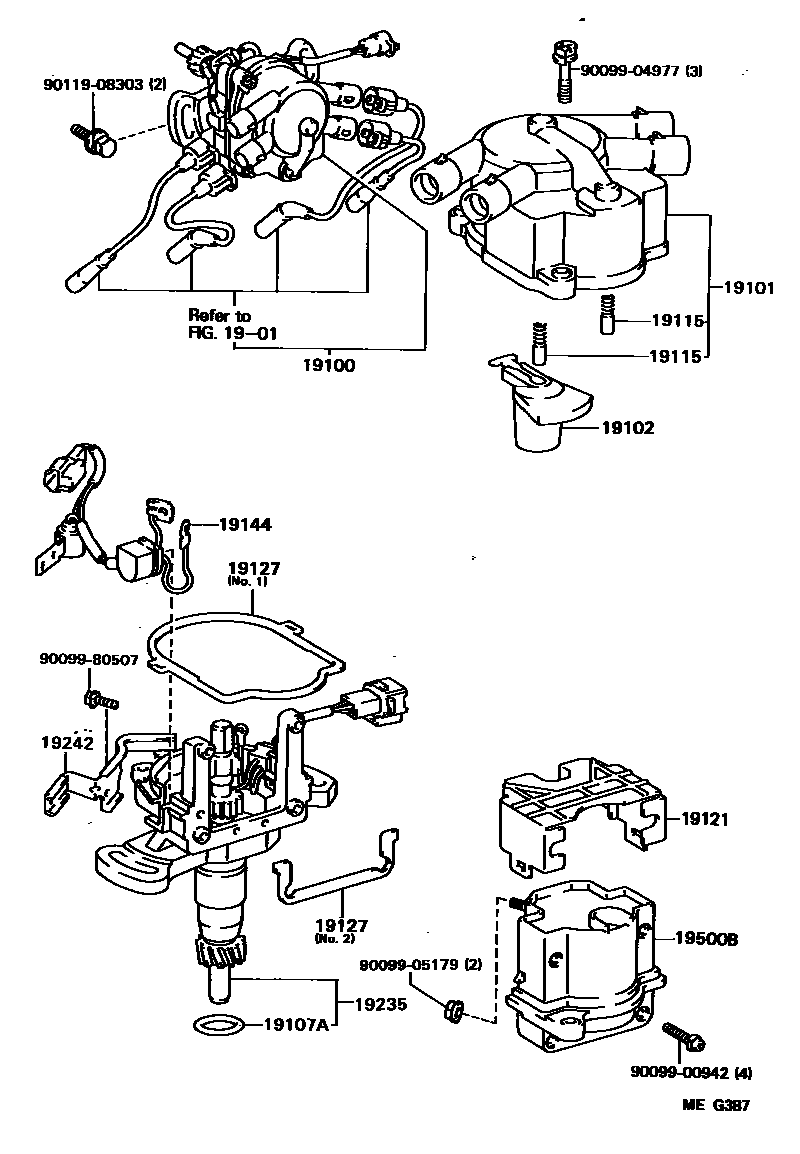

Toyota CAMRY 分电器 — Figure 1902
Toyota CAMRY EPC diagram 1902, 分电器, with 2 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100 | Distributor assembly | 19030-74020 · 19040-74010 |
| 19101 | Distributor cover sub-assembly | 19101-63010 · 19101-63011 |
| 19102 | Distributor flame head sub-assembly | 19102-16060 · 19102-35160 · 19102-63010 |
| 19107A | Distributor housing O-ring | 90099-14020 |
| 19115 | Distributor cover center piece | 19115-50010 · 19115-63010 · 19115-71010 |
| 19121 | dust cover | 19121-63010 · 19121-63040 |
| 19127 | Dust seal | 19127-63010 · 19127-63020 |
| 19144 | Distributor breaker lead | 19144-63050 · 19144-63052 · 19144-63070 |
| 19152 | Speed regulator weight | 19152-44170 · 19152-63010 |
| 19152A | Snap ring (for governor weight) | 90099-07109 · 90099-07122 |
| 19153 | A governor spring | 19153-26232 · 19153-74020 |
| 19154 | B governor spring | 19153-26232 · 19153-74020 |
| 19169 | Cam grease stop | 19169-32010 |
| 19181 | Distributor signal distributor | 19181-74020 |
| 19183 | Signal splitter | 19183-63010 |
| 19184 | Distribution head fixed spring | 19184-63010 |
| 19201 | igniter | 89620-14210 |
| 19220 | Distributor vacuum advance device assembly | 19220-74020 |
| 19235 | Distributor housing | 19235-63010 · 19235-63011 · 19235-63013 · 19235-63090 |
| 19242 | Cable clip | 19242-63020 · 19242-74010 |
| 19250 | Signal generator assembly | 19251-63010 · 19251-63011 |
| 19500B | Ignition coil assembly | 90919-02135 |
